Passenger Compartment/Roof Component Views

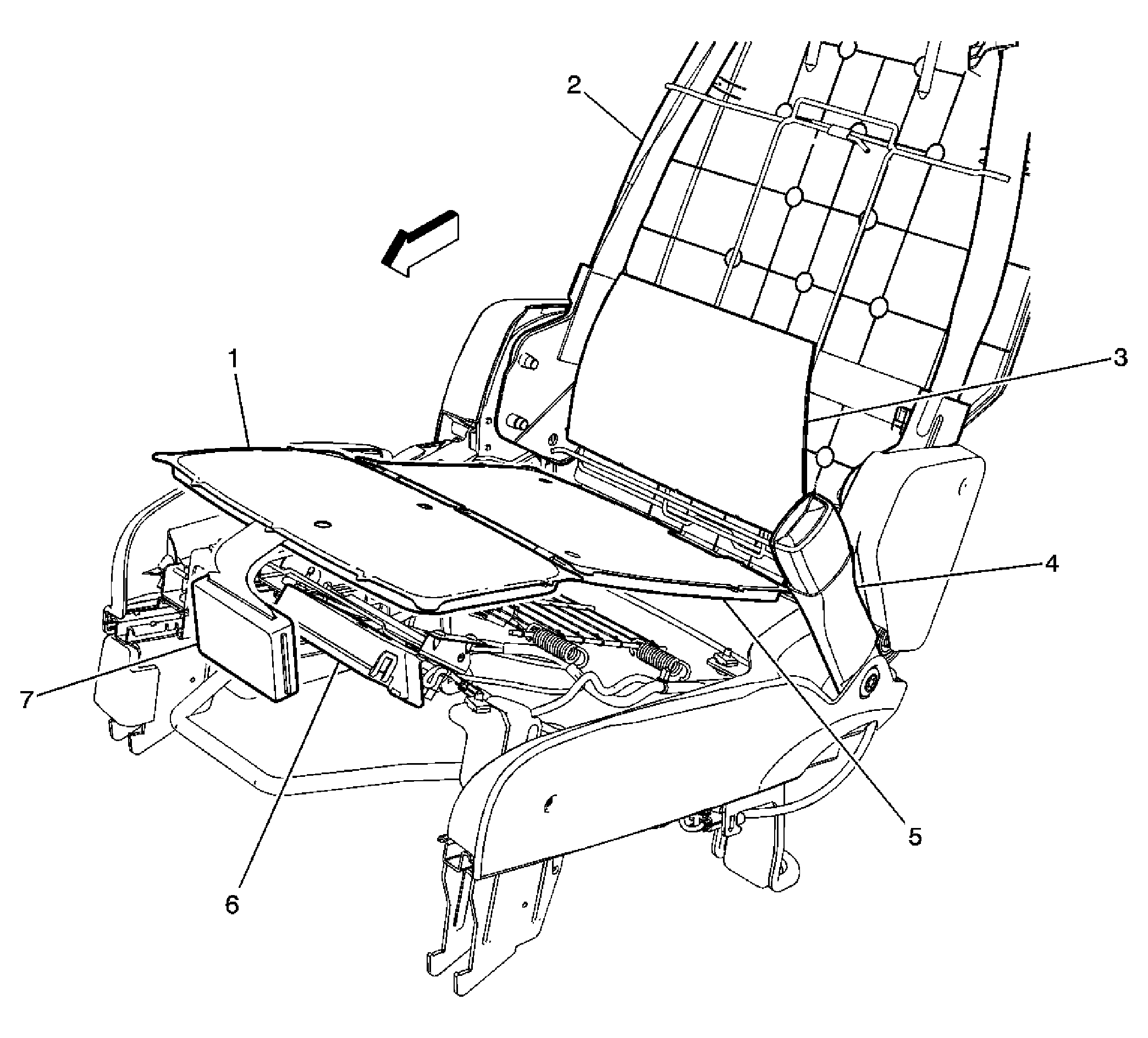

Fig 1: View Of Passenger Seat Components (Manual)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Passenger Presence (PPS) Sensor
2	Seat Frame
3	Heated Seat Element - Front Passenger Back (KA1)
4	Seat Belt Switch - Passenger
5	Heated Seat Element - Front Passenger Cushion (KA1)
6	Heated Seat Control Module (KA1)
7	Inflatable Restraint Passenger Presence (PPS) Module

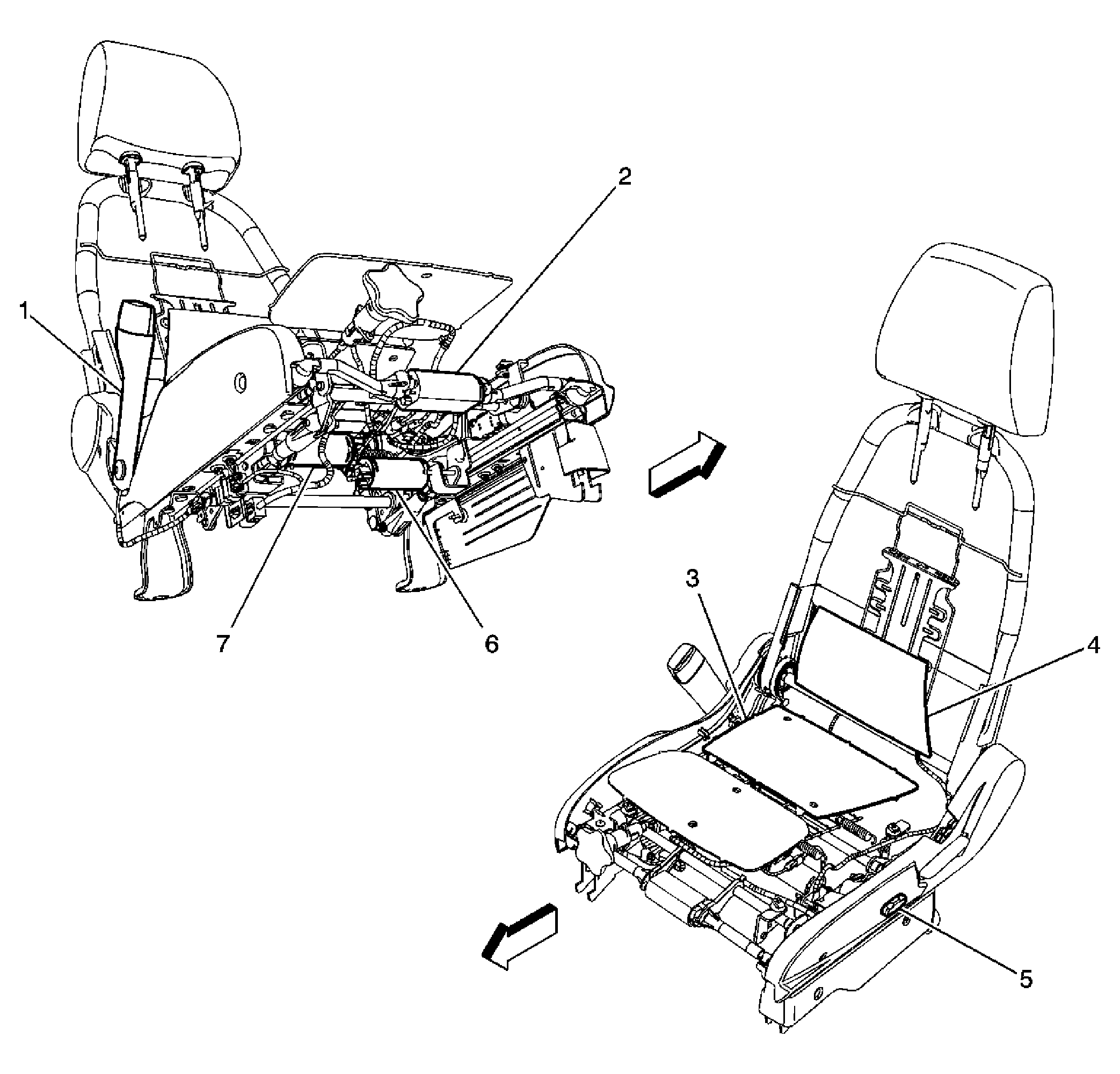

Fig 2: View Of Driver Seat Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Seat Belt Switch - Driver
2	Seat Horizontal Motor - Driver (AG1)
3	Heated Seat Element - Driver Cushion (KA1)
4	Heated Seat Element - Driver Back (KA1)
5	Seat Adjuster Switch - Driver (AG1)
6	Seat Rear Vertical Motor - Driver (AG1)
7	Seat Front Vertical Motor - Driver (AG1)

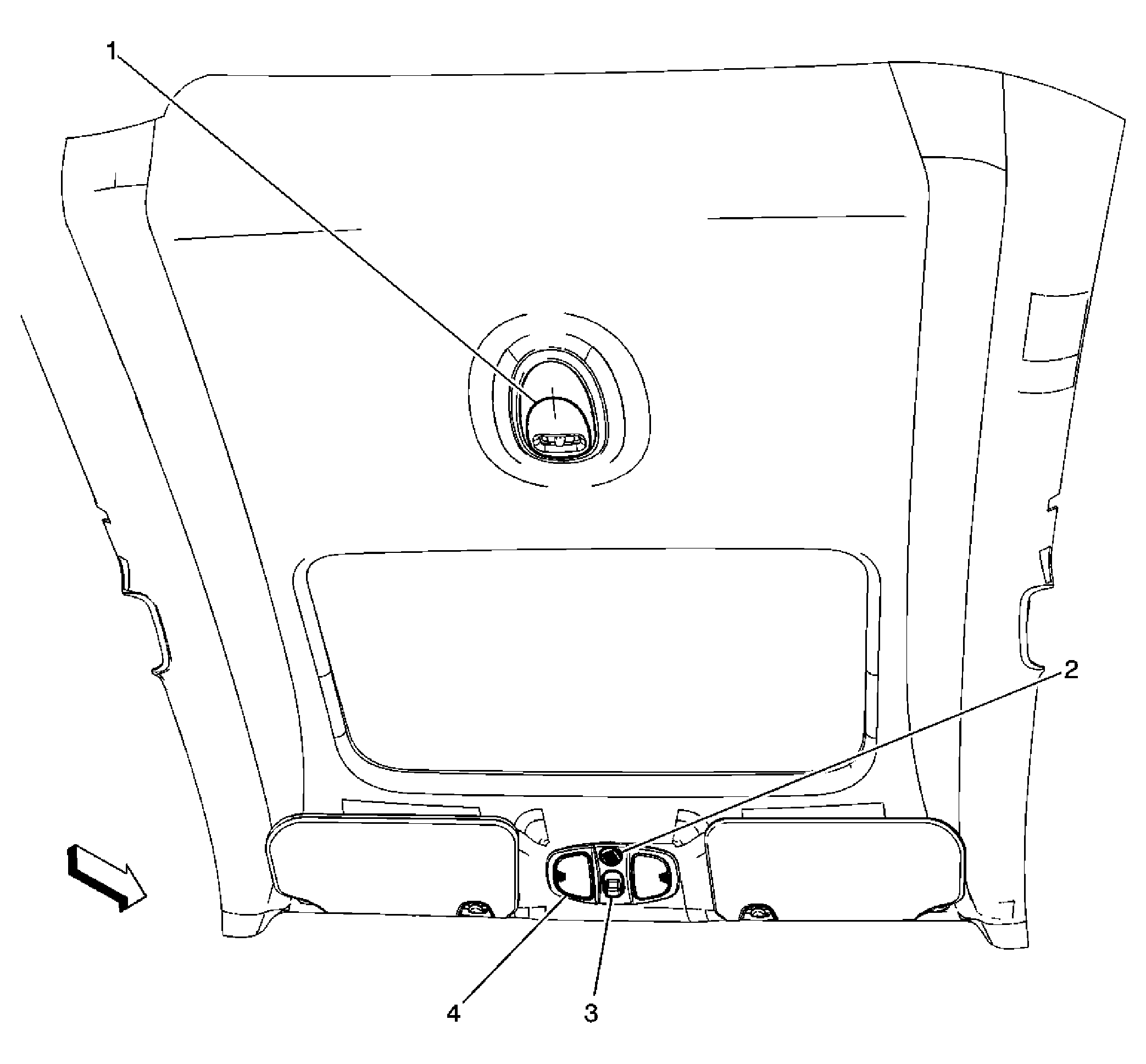

Fig 3: View Of Front Headliner Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Dome Lamp - Center (-UUC)
2	Cellular Telephone Microphone (UE1)
3	Sunroof Switch (CF5)
4	Courtesy / Map Lamp

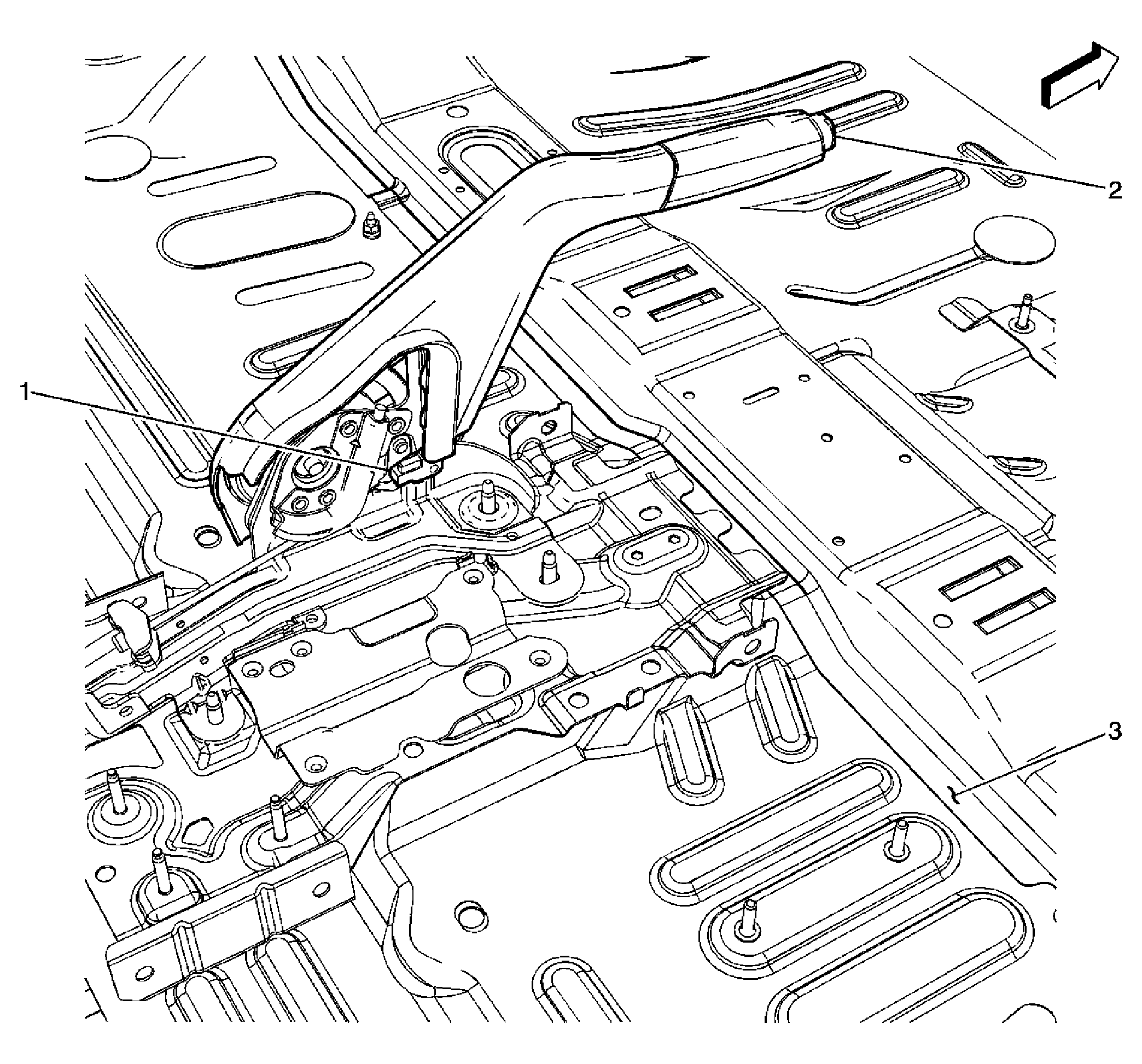

Fig 4: View Of Park Brake Assembly

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Park Brake Switch
2	Park Brake Handle
3	Floor Panel

Fig 5: Center Of Floor View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Floor Panel
2	Console
3	Yaw Rate and Lateral Acceleration Sensor
4	Seat Belt Pretensioner - Right
5	Inflatable Restraint Side Impact Sensor (SIS) - Right (ASF)
6	Rollover Sensor (ASF)
7	Inflatable Restraint Sensing and Diagnostic Module (SDM)
8	Seat Belt Pretensioner - Left
9	Inflatable Restraint Side Impact Sensor (SIS) - Left (ASF)

Fig 6: Identifying Audio Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Radio
2	Speaker - Right Front (Tweeter)
3	Speaker - Right Front
4	Speaker - Right Rear
5	Amplifier (U65)
6	Speaker - Subwoofer (U65)
7	Speaker - Left Rear
8	Speaker - Left Front
9	Speaker - Left Front (Tweeter)

Fig 7: Rear Of Roof View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Roof
2	Cellular and Navigation Antenna (UE1) Digital Antenna (U2K)

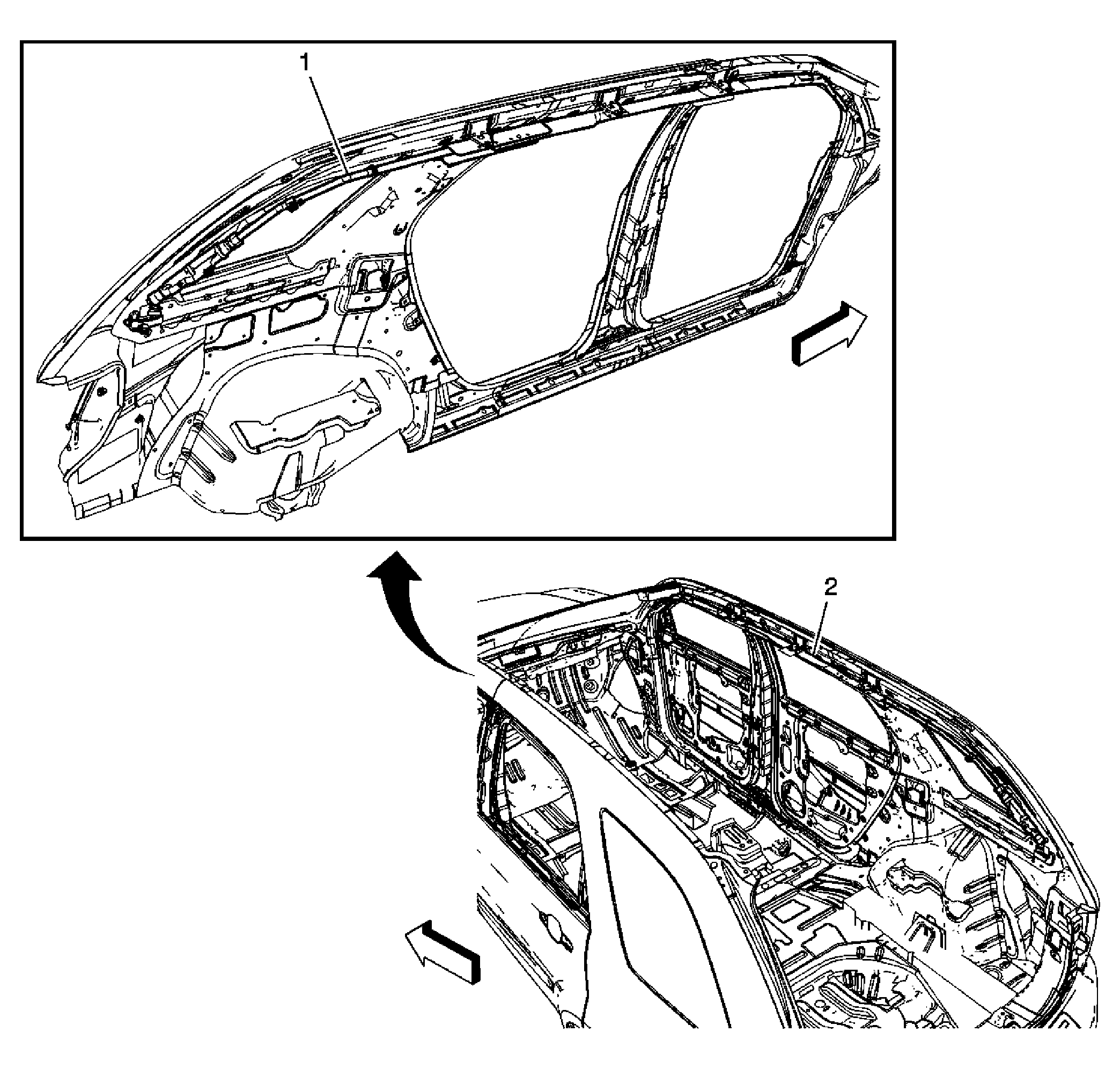

Fig 8: Identifying Roof Rail Air Bags

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Roof Rail Module - Left (ASF)
2	Inflatable Restraint Roof Rail Module - Right (ASF)
