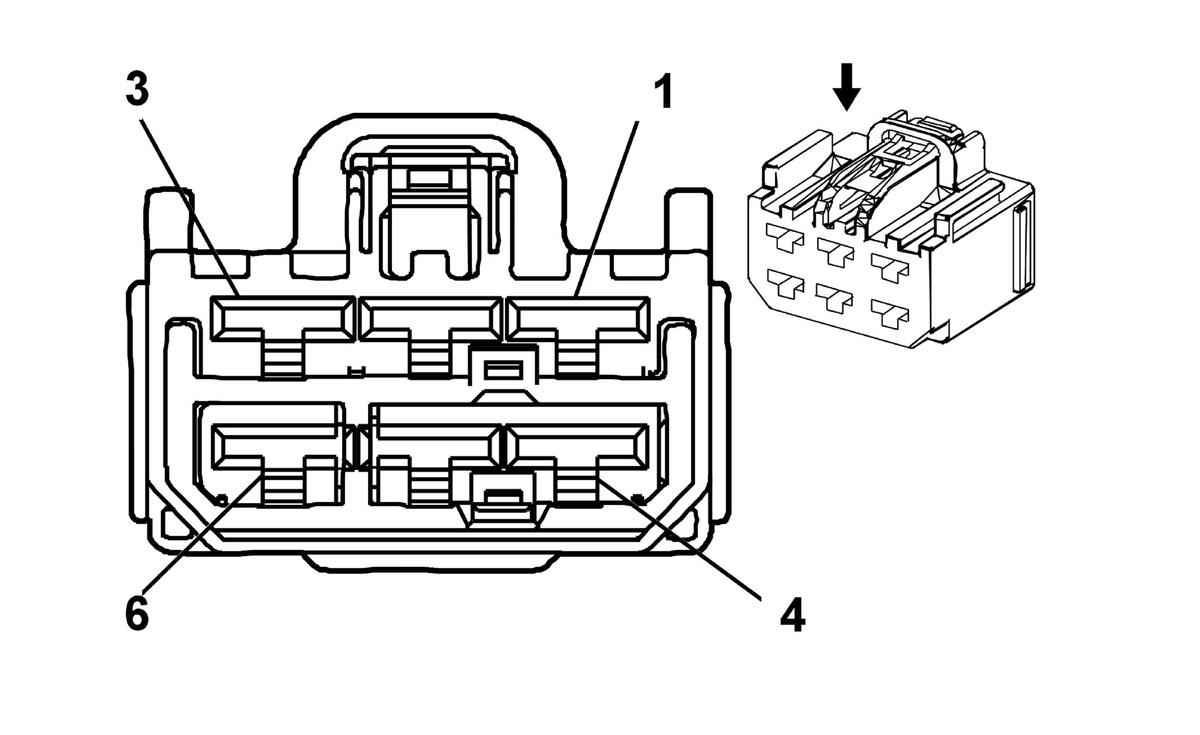

Fuse Block - Instrument Panel X2
Courtesy of GENERAL MOTORS CORP. Fuse Block - Instrument Panel X2
| Pin |
Wire |
Circuit |
Function |
| 1 |
5.0 RD/BK |
642 |
Battery Positive Voltage |
| 2 |
3.0 RD/BK |
442 |
Battery Positive Voltage |
| 3 |
5.0 RD/BK |
842 |
Battery Positive Voltage |
| 4 |
2.0 RD/BK |
542 |
Battery Positive Voltage (AG1) |
| 2.0 RD/BK |
542 |
Battery Positive Voltage (AG1-KA1) |
| 5-6 |
- |
- |
Not Used |
Connector Part Information
- OEM: 7283-5600-40
- Service: See Catalog
- Description: 6-Way F (L-GY)
|
Terminal Part Information
- Pins: 4
- Terminal/Tray: 7116-4121-02/10
- Core/Insulation Crimp: C/B
- Release Tool/Test Probe: 12094430/J-35616-42 (RD)
- Pins: 1-3
- Terminal/Tray: 7116-4122-02/10
- Core/Insulation Crimp: Pins 1, 3 - D/G
- Core/Insulation Crimp: Pins 2 - A/B
- Release Tool/Test Probe: 12094430/J-35616-42 (RD)
|
