Vanity Mirror Dome Lamp Switch (UUC)

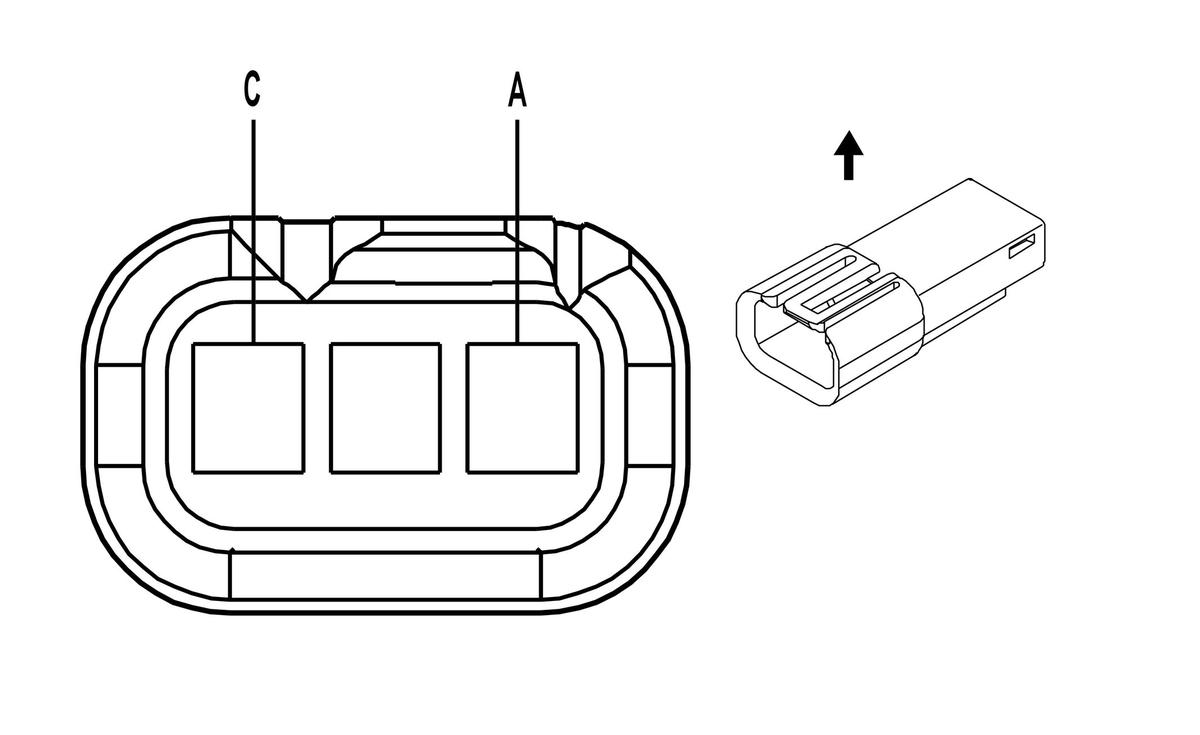

Fig 1: Vanity Mirror Dome Lamp Switch (UUC) Connector End View
GM287973Courtesy of GENERAL MOTORS CORP.
Vanity Mirror Dome Lamp Switch (UUC)

Pin Wire Circuit Function
A 0.8 D-BU/WH 149 Courtesy Lamp Supply Voltage
B 0.8 GY 157 Courtesy Lamp Control
C 0.8 OG 1732 Courtesy Lamps Supply Voltage
Connector Part Information
  • OEM: 12047782
  • Service: 12117371
  • Description: 3-Way M Metri-Pack 150 Series (BK)

Terminal Part Information
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
