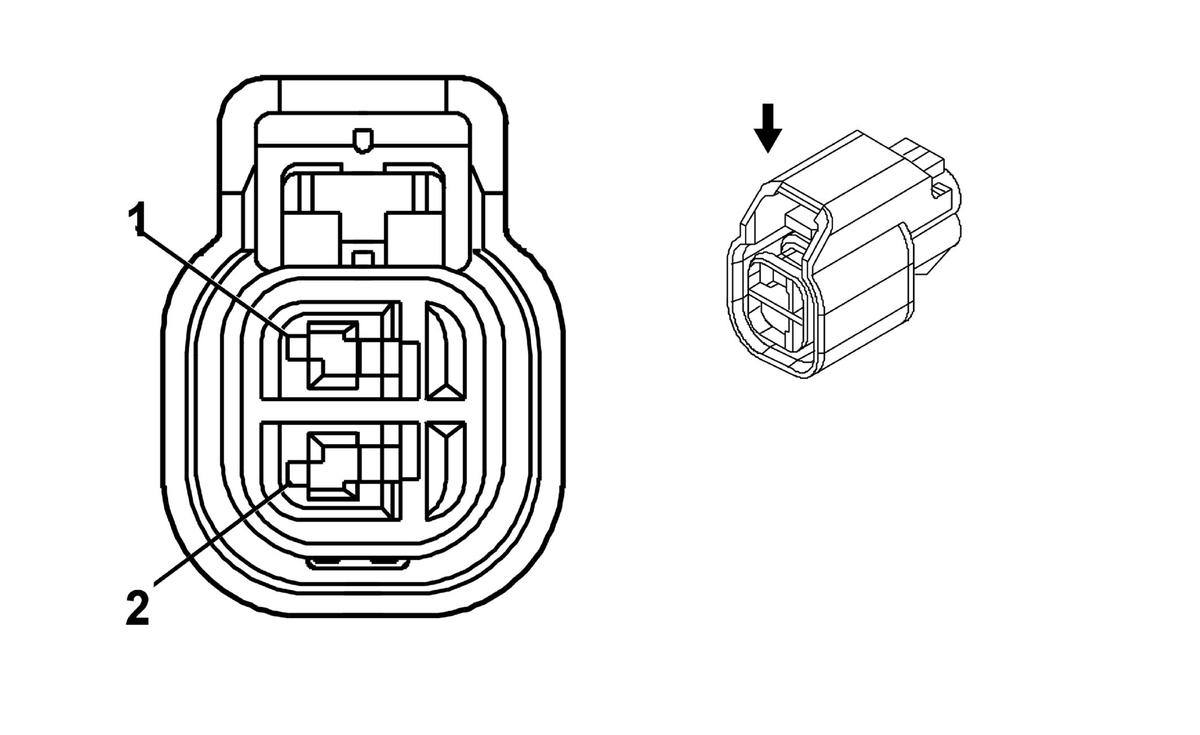

Marker Lamp - Right Front (Pontiac)
Courtesy of GENERAL MOTORS CORP. Marker Lamp - Right Front (Pontiac)
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.5 BN/WH |
309 |
Right Park Lamp Supply Voltage |
| 2 |
0.35 BK |
1250 |
Ground |
Connector Part Information
- OEM: E3550
- Service: See Catalog
- Description: 2-Way F 1.5 mm Series Sealed (BK)
|
Terminal Part Information
- Terminal/Tray: 7116-4102-08/9
- Core/Insulation Crimp: E/1
- Release Tool/Test Probe: 12094430/J-35616-2A (GY)
- Terminal/Tray: 7116-2640/12
- Core/Insulation Crimp: E/1
- Release Tool/Test Probe: 12094430/J-35616-42 (RD)
|
