Instrument Panel Cluster (IPC)
Courtesy of GENERAL MOTORS CORP. Instrument Panel Cluster (IPC)
| Pin |
Wire |
Circuit |
Function |
| 1 |
- |
- |
Not Used |
| 2 |
0.5 PK |
893 |
DIC Select Menu Switch Signal |
| 3 |
0.35 PU |
5234 |
Passenger Seat Belt Indicator |
| 4 |
0.35 D-BU |
2307 |
Passenger Air Bag On Indicator Control |
| 5 |
0.35 D-GN |
2308 |
Passenger Air Bag Off Indicator Control |
| 6 |
0.35 BK/WH |
1551 |
Ground |
| 7 |
- |
- |
Not Used |
| 8 |
0.35 D-GN |
5060 |
Low Speed GMLAN Serial Data |
| 9 |
0.35 TN/WH |
33 |
Brake Warning Indicator Control |
| 10 |
0.5 BN |
897 |
Low Reference |
| 11 |
0.5 BN/WH |
419 |
MIL Control |
| 12 |
0.5 D-GN/WH |
1358 |
DIC Switch Signal |
| 13 |
0.5 PK |
1139 |
Ignition Voltage |
| 14 |
0.35 RD/WH |
1640 |
Battery Positive Voltage |
| 15 |
- |
- |
Not Used |
| 16 |
0.35 YE |
749 |
Security Indicator Control |
| 17-18 |
- |
- |
Not Used |

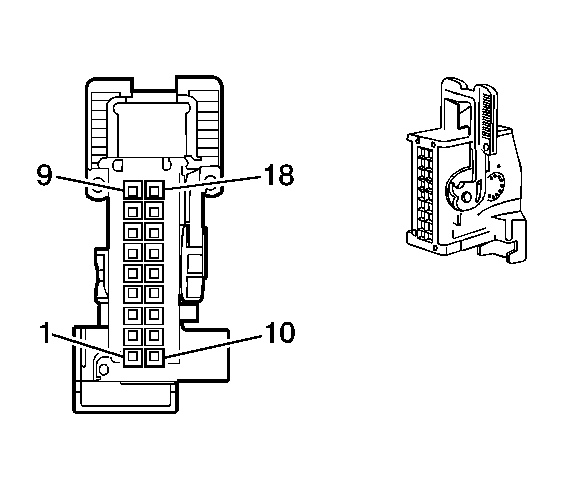

Connector Part Information
- OEM: 1326133-1
- Service: See Catalog
- Description: 18-Way F Receptacle 0.64 Unsealed (BK)
|
Terminal Part Information
- Pins: 2-6, 8-14, 16
- Terminal/Tray: 638551-1/16
- Core/Insulation Crimp: Pins 2, 10-13 - K/K
- Core/Insulation Crimp: Pins 3-6, 8-9, 14, 16 - J/J
- Release Tool/Test Probe: 15315247/J-35616-64B (L-BU)
|
