Heated Seat Element - Front Passenger Back

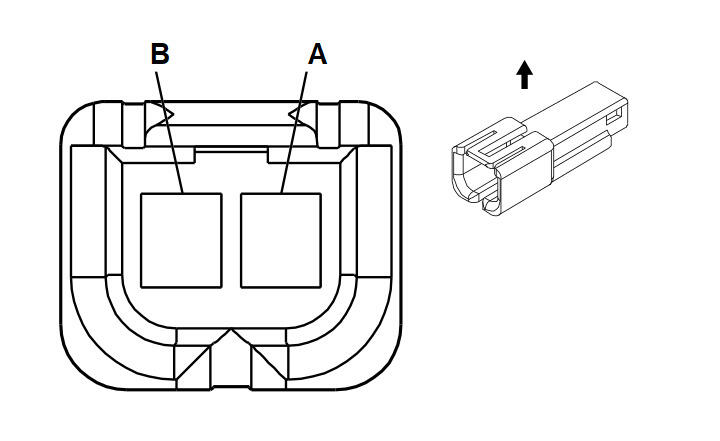

Fig 1: Heated Seat Element - Front Passenger Back Connector End View
GM258301Courtesy of GENERAL MOTORS CORP.
Heated Seat Element - Front Passenger Back

Pin Wire Circuit Function
A 0.8 TN 2481 Passenger Heated Seat Back Element Supply Voltage
B 0.8 L-BU 2433 Passenger Heated Seat Back Element Control
Connector Part Information
  • OEM: 12059254
  • Service: 12126020
  • Description: 2-Way M Metri-Pack 150 Series (GN)

Terminal Part Information
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
