Cooling Fan - Left

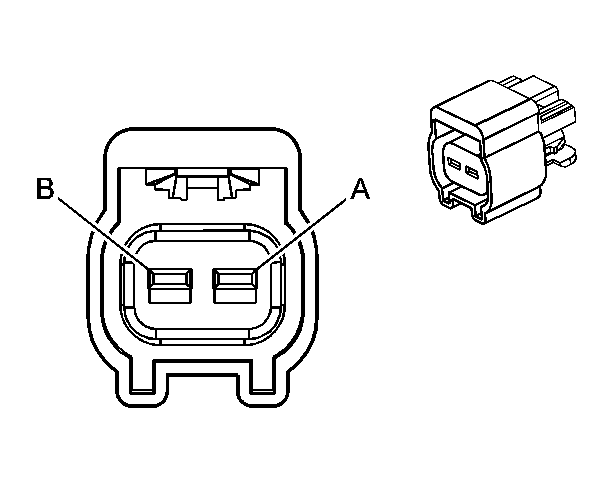

Fig 1: Cooling Fan - Left Connector End View
GM1658769Courtesy of GENERAL MOTORS CORP.
Cooling Fan - Left

Pin Wire Circuit Function
A 3.0 GY 532 Cooling Fan Motor Supply Voltage
B 3.0 WH 504 Cooling Fan Low Reference
Connector Part Information
  • OEM: 13517352
  • Service: 88988506
  • Description: 2-Way F GT 280 Sealed (BK)
Terminal Part Information
  • Terminal/Tray: 15304720/19
  • Core/Insulation Crimp: 4/5
  • Release Tool/Test Probe: 15315247/J-35616-4A (PU)
