Cellular and Navigation Antenna (UE1)/Digital Antenna (U2K)

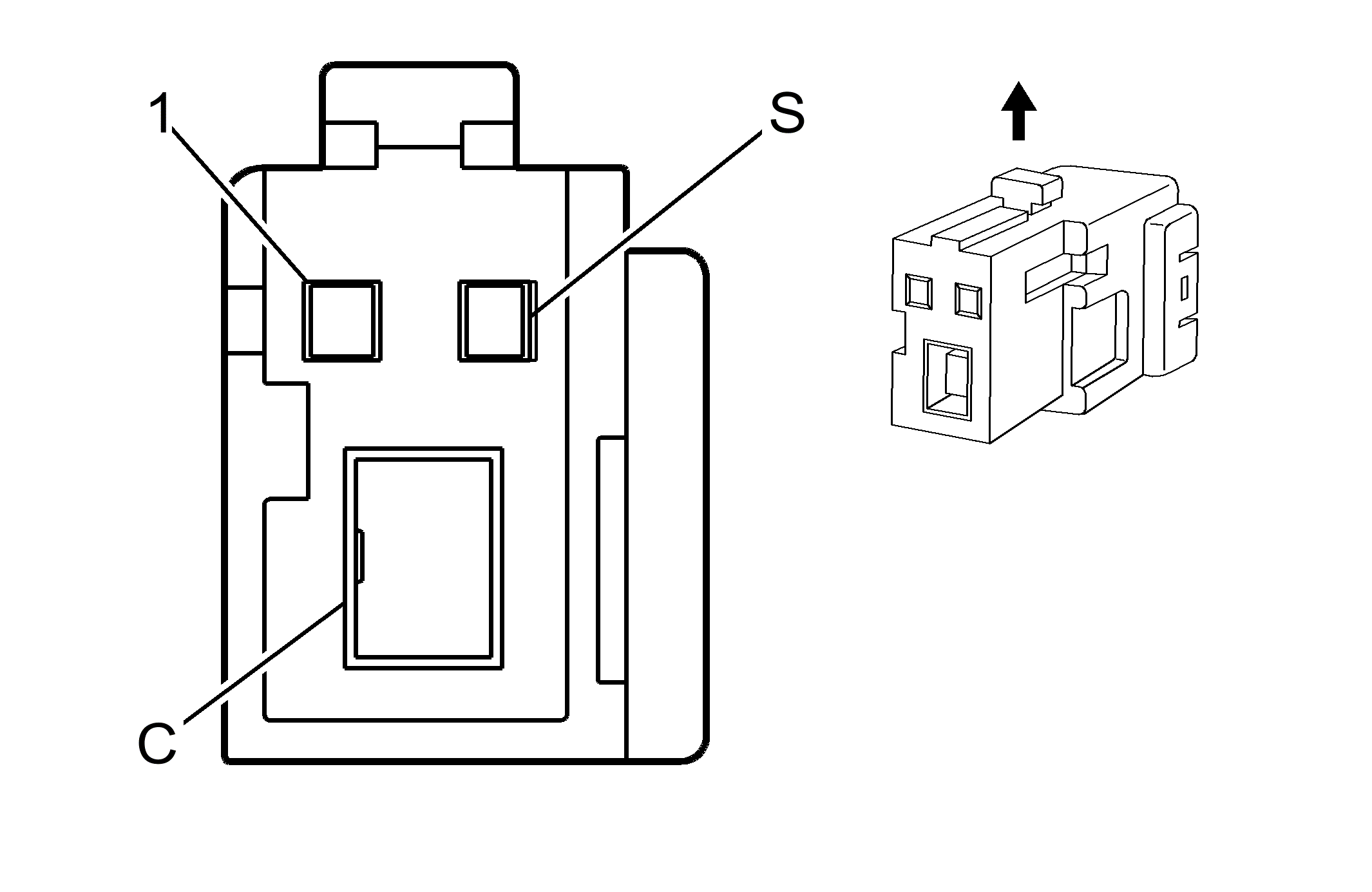

Fig 1: Cellular & Navigation Antenna (UE1)/Digital Antenna (U2K) Connector End View

Courtesy of GENERAL MOTORS CORP.

Cellular and Navigation Antenna (UE1)/Digital Antenna (U2K)

Pin	Wire	Circuit	Function
1	0.35 WH	1487	Antenna Enable Signal
S	0.35 BARE	6015 -	Shield
C	COAX	-	Antenna Signal

Connector Part Information  OEM: GT13GM-1/1S-HU Service: See Catalog Description: 3-Way F GT13 Coaxial Series (GY) Terminal Part Information  Pins: 1 Terminal/Tray: 7116-4618-02/14 Core/Insulation Crimp: P/P Release Tool/Test Probe: J-38125-215/J-35616-64B (L-BU)
