Installation Procedure

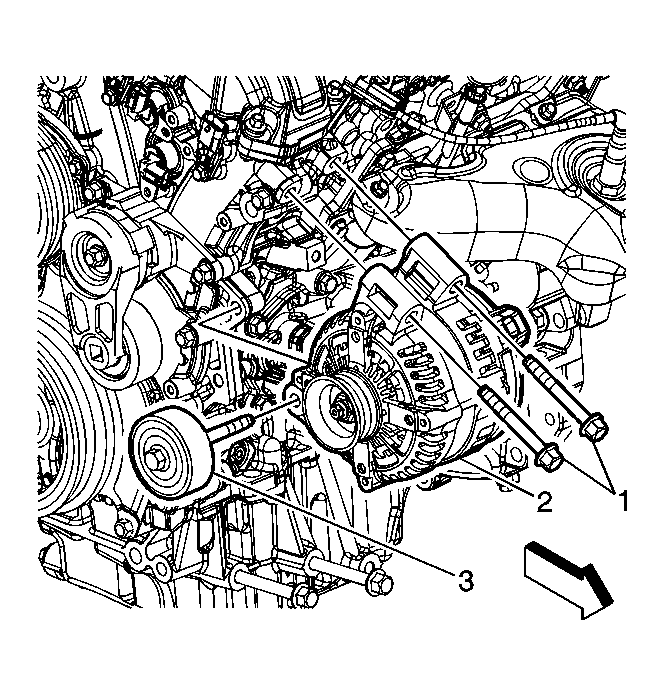

    Fig 1: Identifying Generator & Bolts
    GM1916868Courtesy of GENERAL MOTORS CORP.
  1. Position the generator (2) to the engine.
  2. Loosely install the generator bolts (1).
  3. Install the idler pulley (3). Refer to Drive Belt Idler Pulley Replacement .
    4. NOTE: Refer to Fastener Notice .
  4. Tighten the generator bolts.

    Tighten:  Tighten the bolts to 50 N.m (37 lb ft).

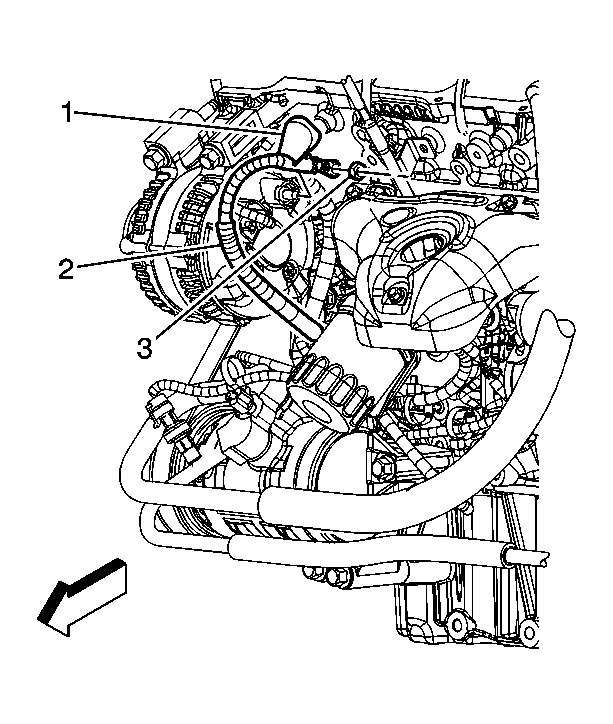

    5. Fig 2: Identifying Generator Wiring Harness & Nut
    GM1916866Courtesy of GENERAL MOTORS CORP.
  5. Install the generator wiring harness (2) terminal to the generator.
  6. Install the generator wiring harness nut (3) to the generator.

    Tighten:  Tighten the nut to 20 N.m (15 lb ft).

  7. Position the generator wiring harness boot (1) at the generator terminal.

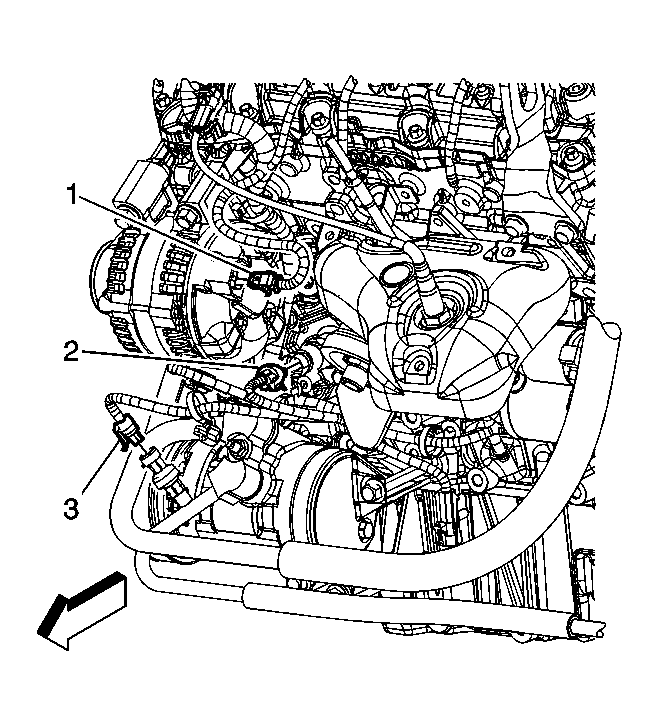

    8. Fig 3: Identifying Engine Wiring Harness Electrical Connector
    GM1916864Courtesy of GENERAL MOTORS CORP.
  8. Connect the engine wiring harness electrical connector (1) to the generator.
  9. Install the drive belt. Refer to Drive Belt Replacement .
  10. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
