Installation Procedure

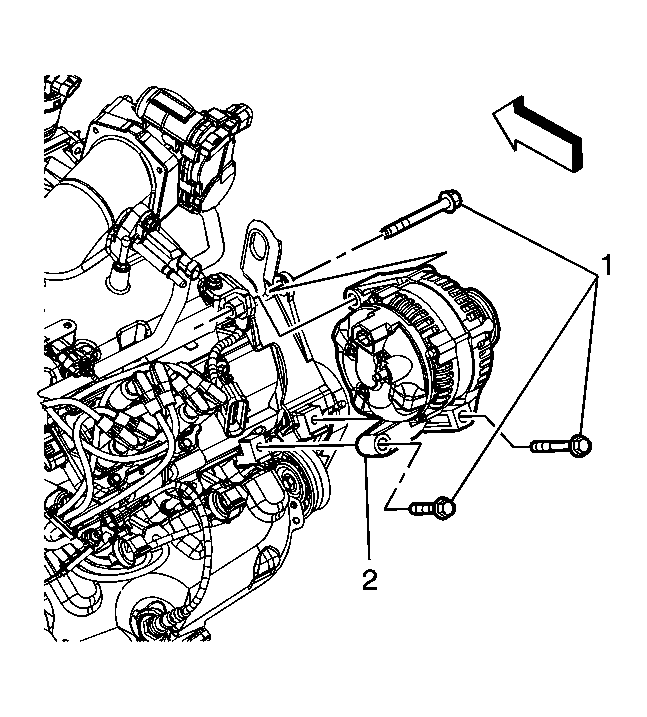

    Fig 1: Identifying Generator & Bolts
    GM1916766Courtesy of GENERAL MOTORS CORP.
  1. Install the generator (2).
    2. NOTE: Refer to Fastener Notice .
  2. Install the generator bolts (1).

    Tighten:  Tighten the bolts to 50 N.m (37 lb ft).

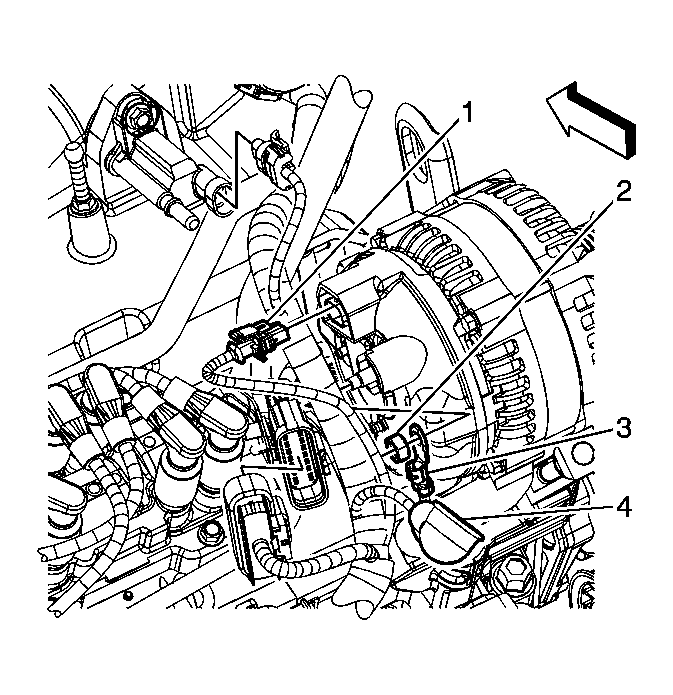

    3. Fig 2: Identifying Engine Wiring Harness Electrical Connector, Terminal Lead & Harness Boot
    GM1916762Courtesy of GENERAL MOTORS CORP.
  3. Install the engine wiring harness terminal lead (3) to the generator.
  4. Install the generator terminal nut (2).

    Tighten:  Tighten the nut to 20 N.m (15 lb ft).

  5. Position the engine wiring harness boot (4).
  6. Connect the engine wiring harness electrical connector (1) to the generator.
  7. Install the drive belt. Refer to Drive Belt Replacement .
  8. Install the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
