Installation Procedure

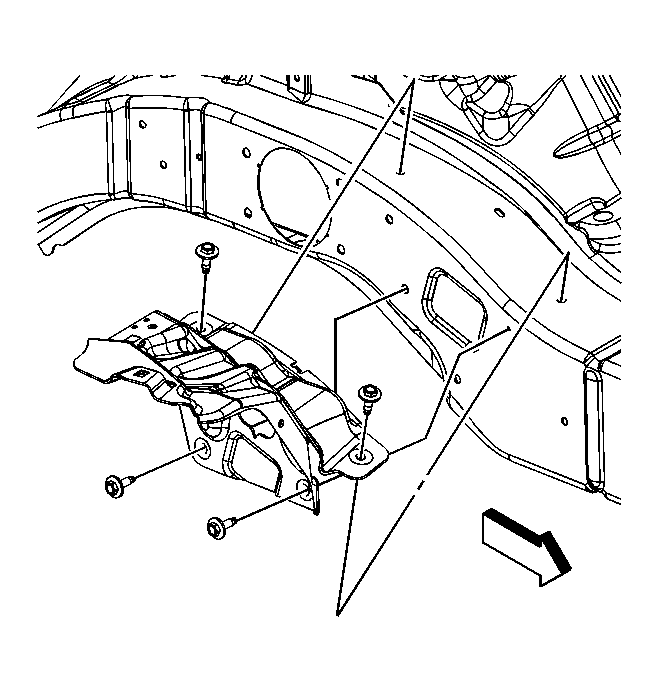

    Fig 1: View Of Battery Tray Support Bracket
    GM1822646Courtesy of GENERAL MOTORS CORP.
  1. Position the battery tray support bracket.
    2. NOTE: Refer to Fastener Notice .
  2. Install the battery tray support bracket bolts.

    Tighten:  Tighten the bolts to 25 N.m (18 lb ft).

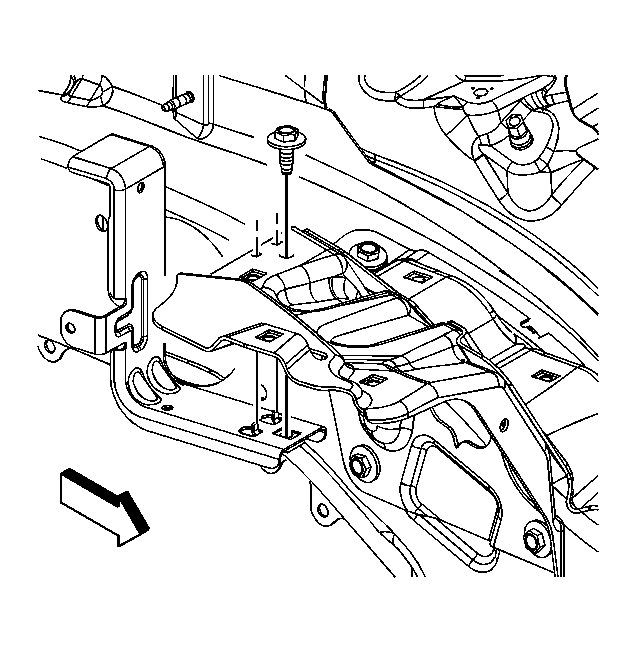

    3. Fig 2: View Of Battery Tray Support Bracket Bolt
    GM1822642Courtesy of GENERAL MOTORS CORP.
  3. Install the battery tray support bracket bolt at the multiuse relay and fuse bracket.

    Tighten:  Tighten the bolt to 25 N.m (18 lb ft).

  4. Install the battery box. Refer to Battery Box Replacement .
