Installation Procedure

    Fig 1: View Of Battery Cables & Terminal Nut
    GM1822394Courtesy of GENERAL MOTORS CORP.
  1. Install the negative battery cable lead (1) to the battery.
    2. NOTE: Refer to Fastener Notice .
  2. Tighten the negative battery cable terminal nut.

    Tighten:  Tighten the nut to 17 N.m (13 lb ft).

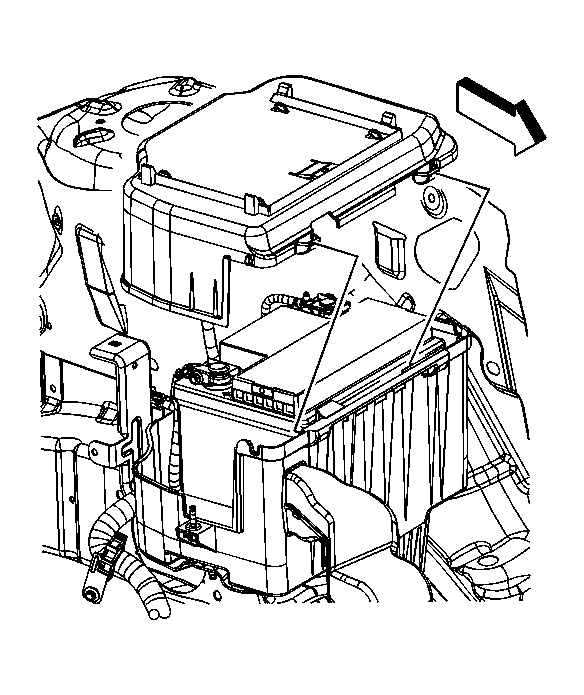

    3. Fig 2: View Of Battery Shield
    GM1822392Courtesy of GENERAL MOTORS CORP.
  3. Install the battery shield retainer tabs to the battery tray.
    4. Fig 3: View Of Battery Shield Rear Snap Retainers
    GM1822391Courtesy of GENERAL MOTORS CORP.
  4. Engage the battery shield rear snap retainers (1).
    5. Fig 4: View Of ECM Retainer & Top Of Battery Shield
    GM1822389Courtesy of GENERAL MOTORS CORP.
  5. Carefully position the ECM and retainer to the top of the battery shield.
  6. Slide the ECM retainer forward, engaging the retainer to the battery shield.
  7. Reset all of the customers radio station presets.
