Luggage Compartment/Rear of Vehicle Component Views

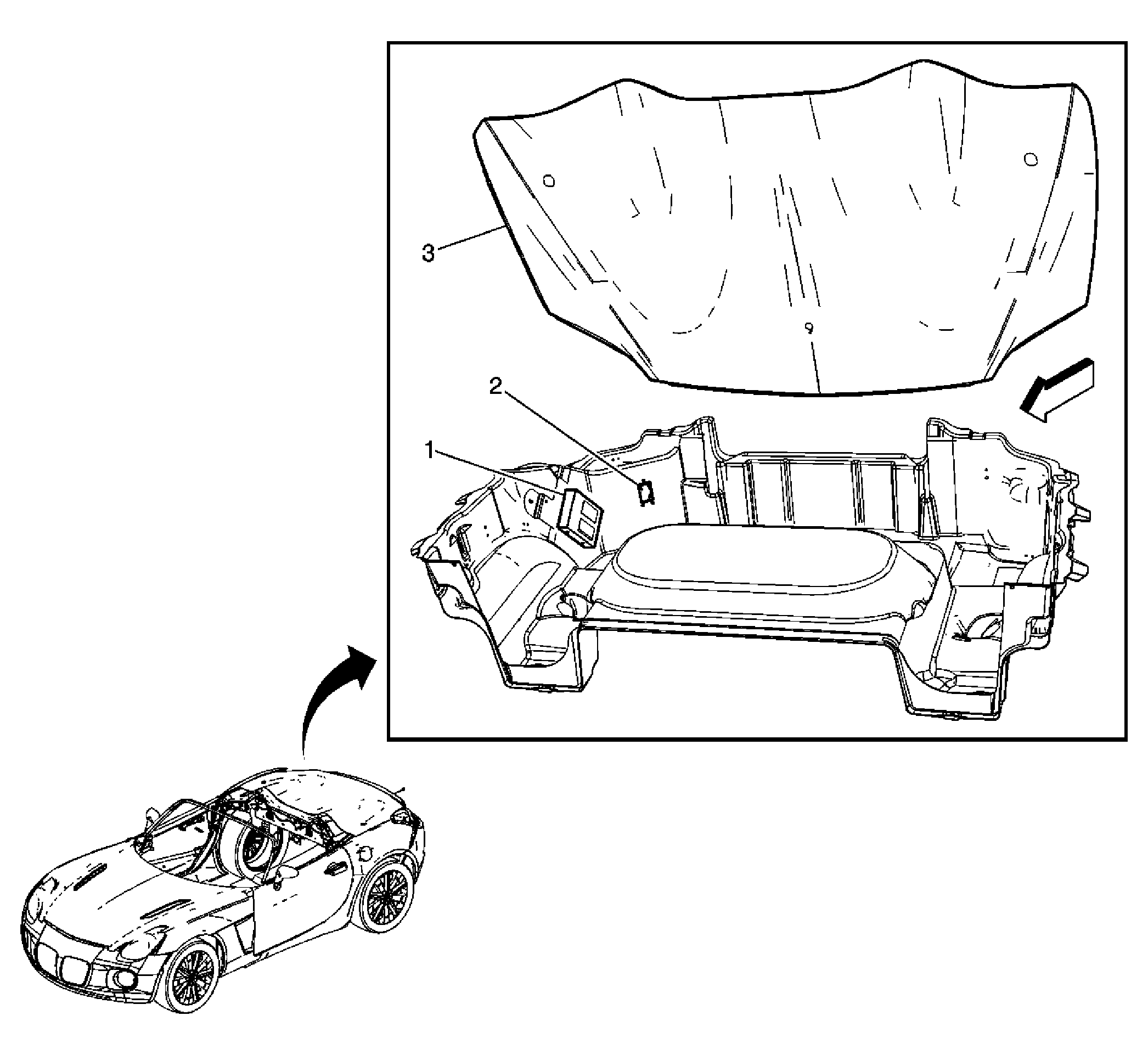

Fig 1: Rear Cargo Area Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Digital Radio Receiver (U2K)
2	Rear Compartment Lamp
3	Rear Compartment Lid

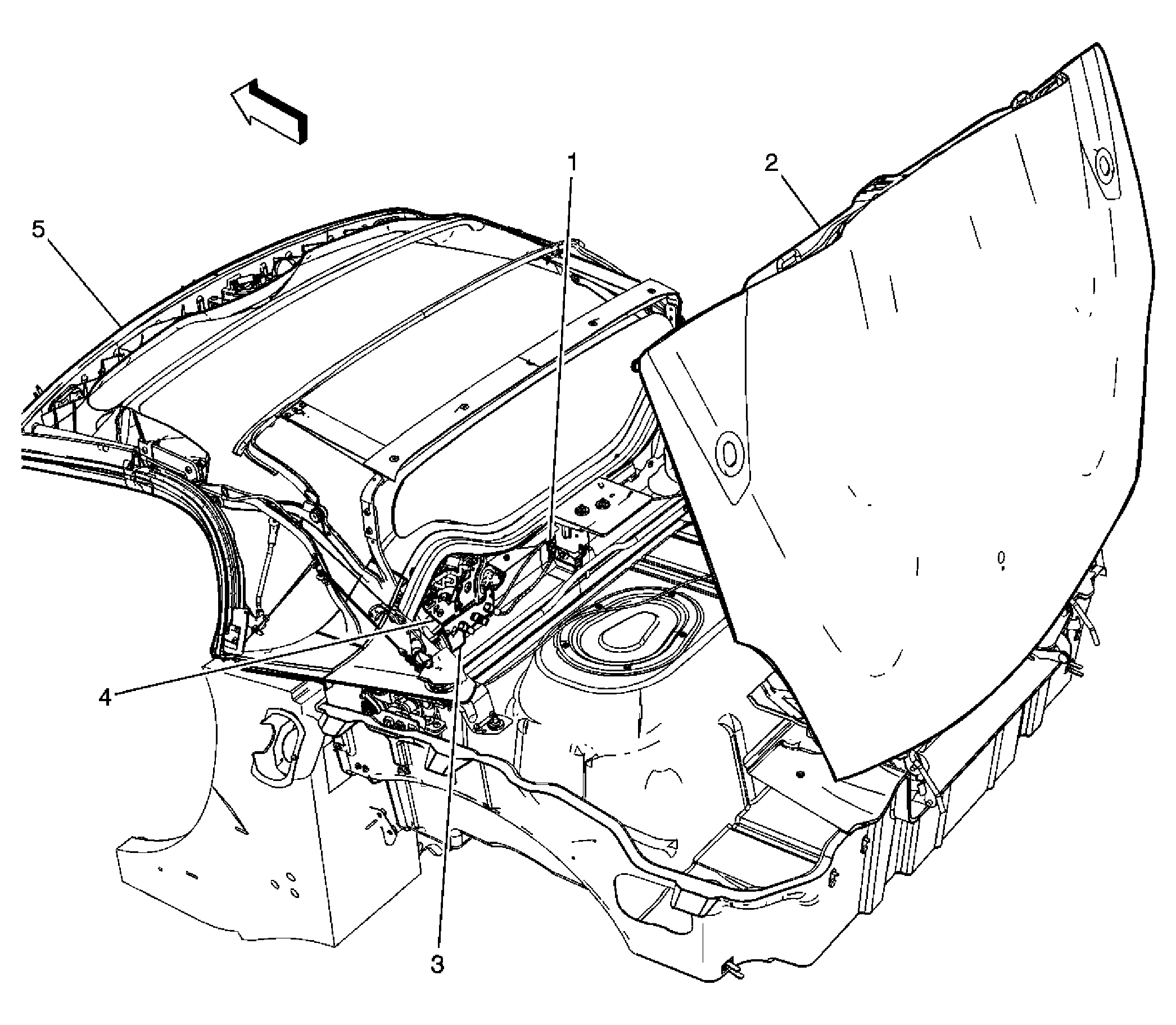

Fig 2: Rear Cargo Area Components (Convertible)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Compartment Lid Ajar Switch
2	Rear Deck Lid
3	Folding Top Cover Actuator
4	Rear Compartment Lid Release Actuator
5	Folding Top Cover

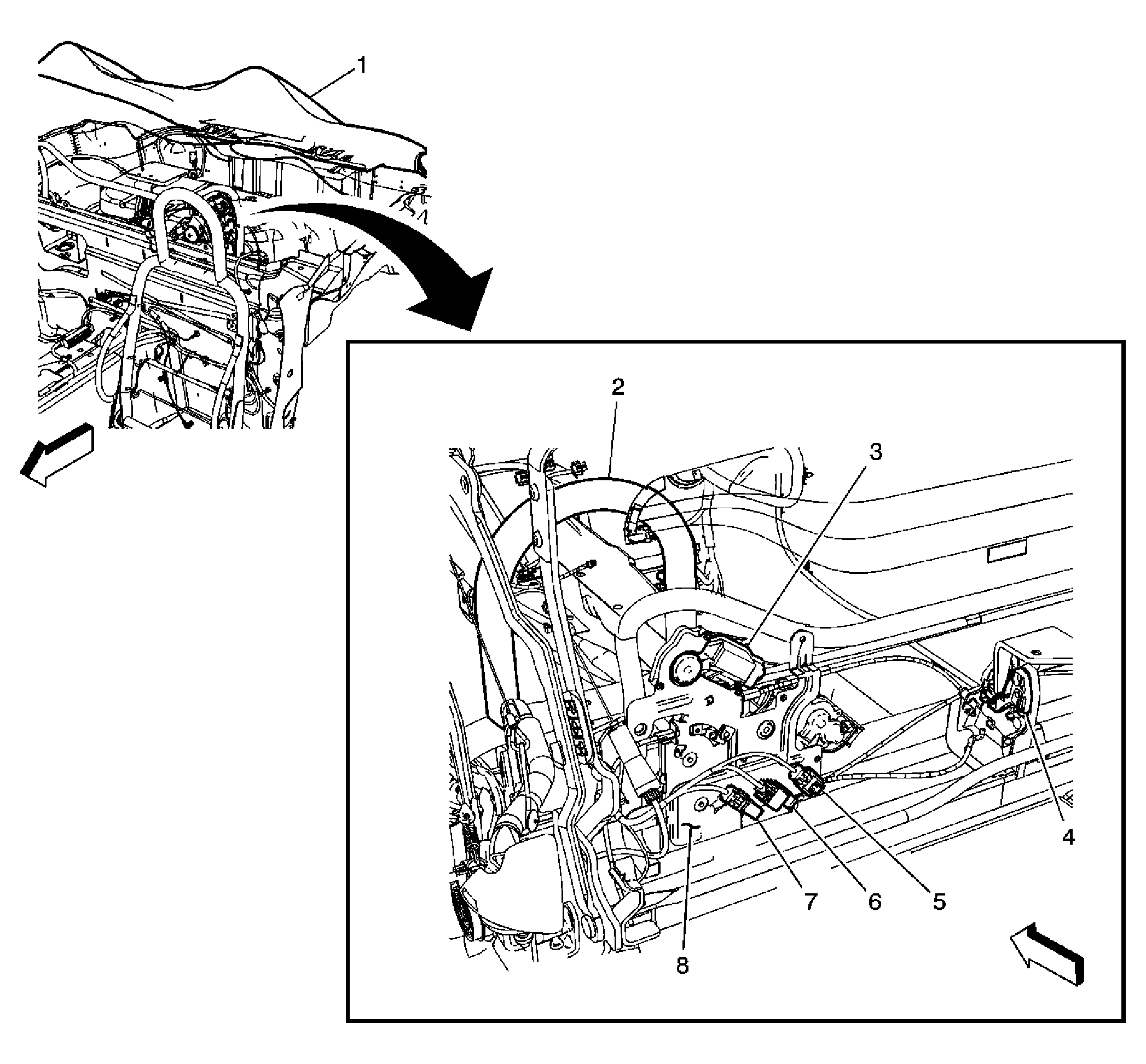

Fig 3: Rear Compartment Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Compartment Lid
2	Driver Seat Frame
3	Rear Compartment Lid Release Actuator
4	Rear Compartment Lid Ajar Switch
5	Rear Compartment Lid Ajar Switch Connector
6	Folding Top Cover Actuator Connector
7	Rear Compartment Lid Release Actuator Connector
8	Folding Top Cover Actuator

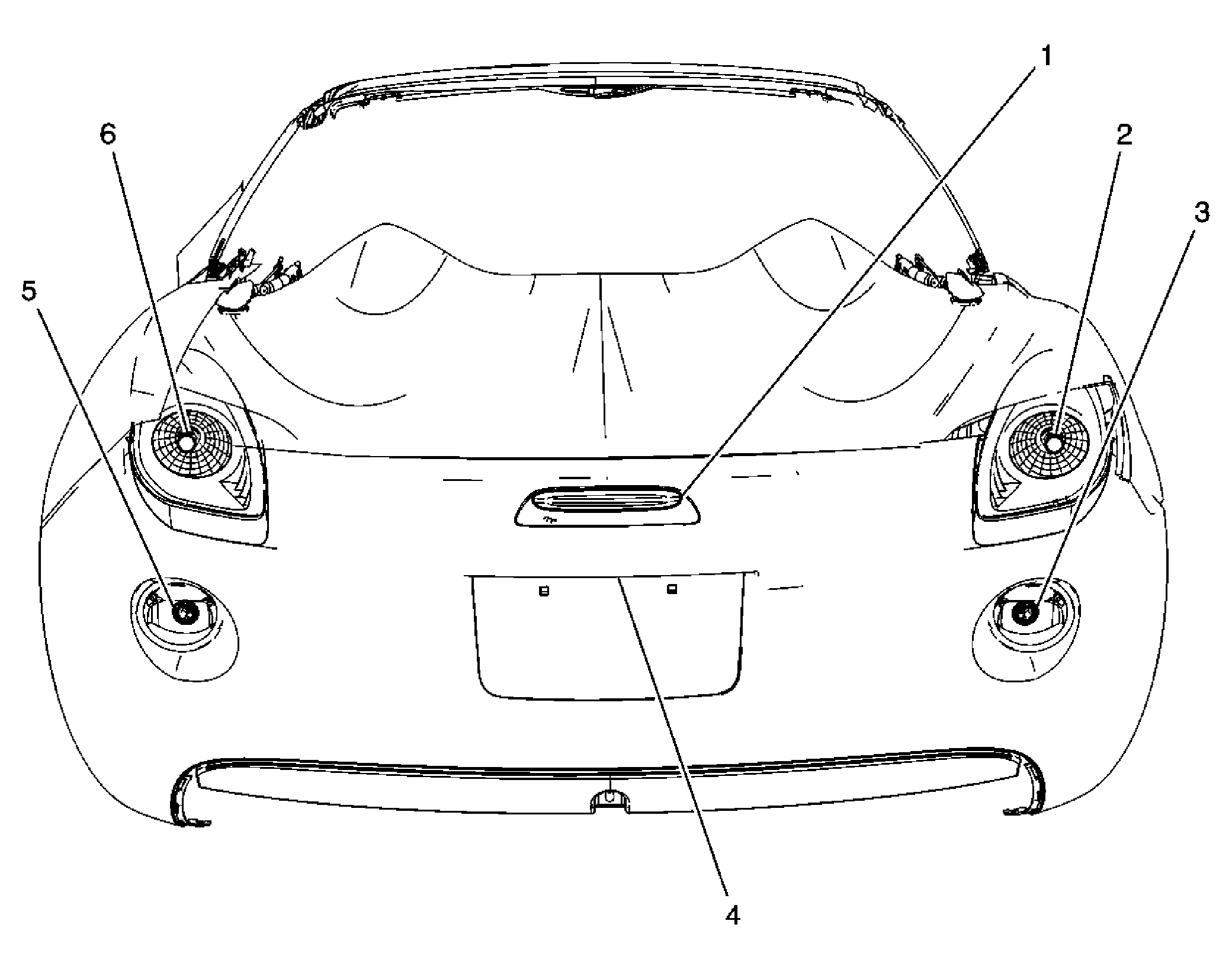

Fig 4: Rear Fascia Lighting

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Defogger Grid C2
2	Center High Mounted Stop Lamp (CHMSL)
3	Tail/Stop and Turn Signal Lamp - Right
4	Backup Lamp - Right
5	License Lamp
6	Backup Lamp - Left
7	Tail/Stop and Turn Signal Lamp - Left
8	Defogger Grid C1

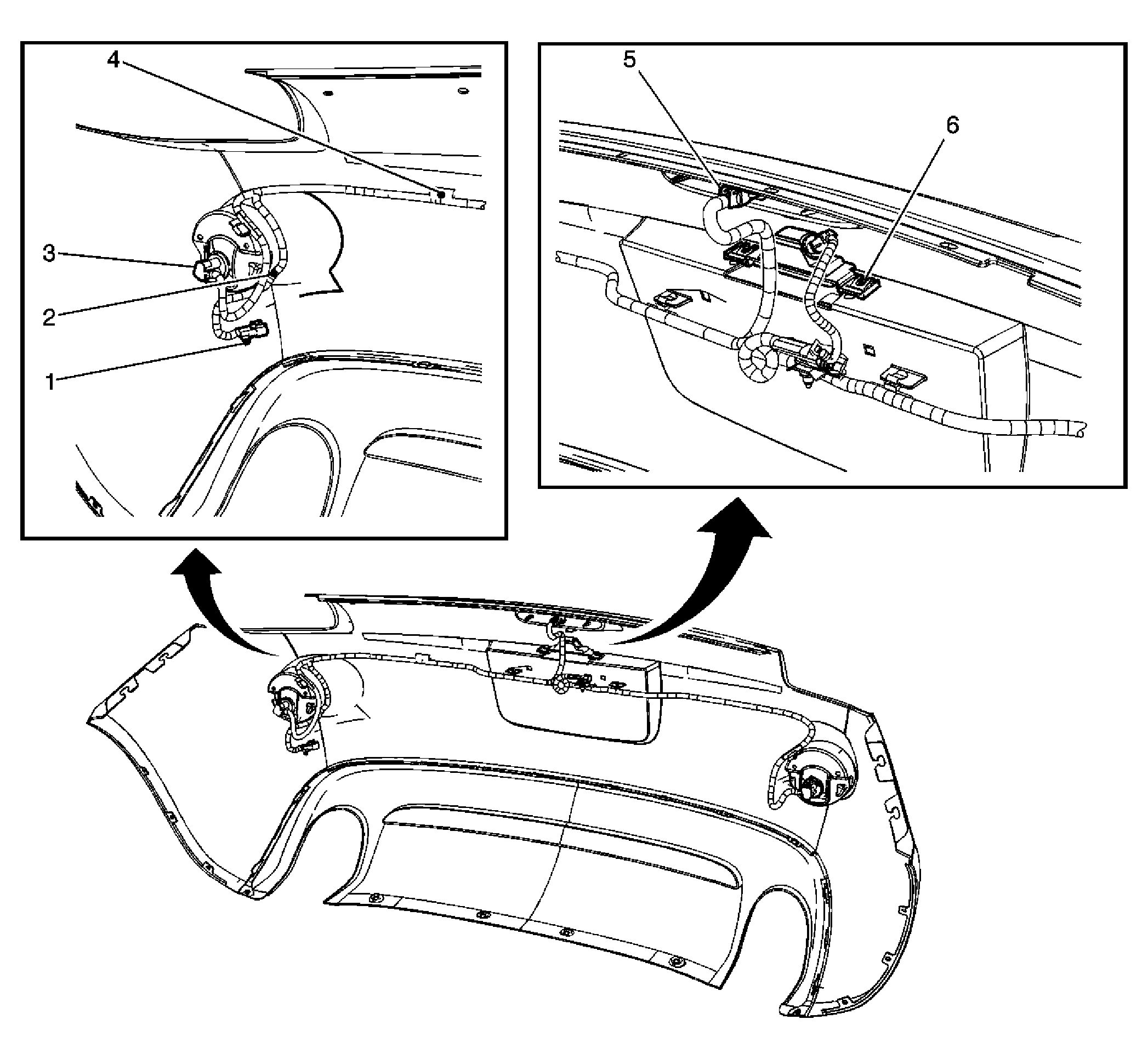

Fig 5: Rear Fascia Harness (Solstice)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	X400
2	J401
3	Backup Lamp - Right
4	J402
5	Center High Mounted Stop Lamp (CHMSL)
6	License Lamp

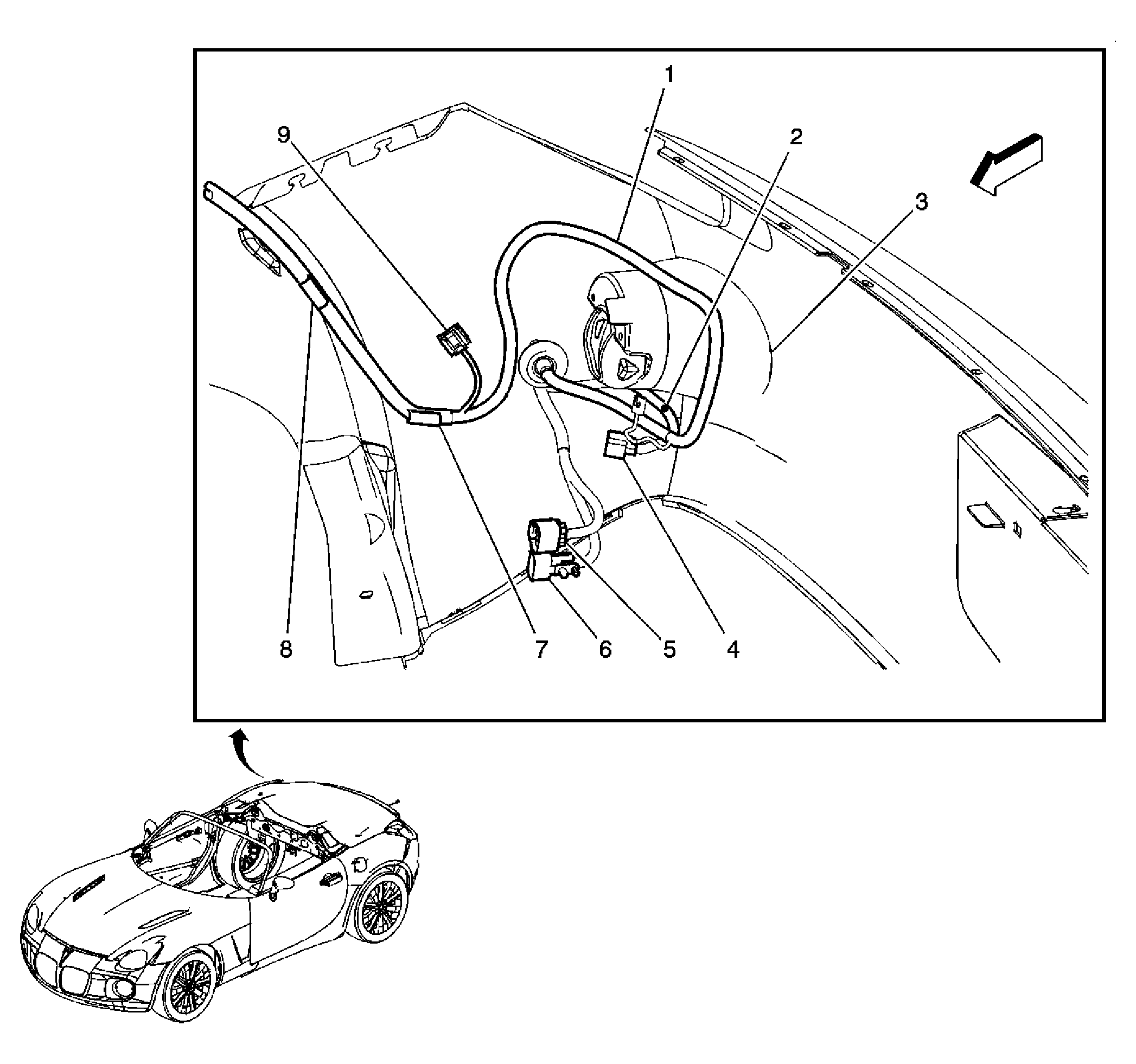

Fig 6: Right Rear Quarter Panel (Solstice)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Instrument Panel Harness
2	J403
3	Backup Lamp - Right
4	X400
5	X406
6	X408
7	Drain (U2K)
8	J402
9	Right Backup Lamp Connector

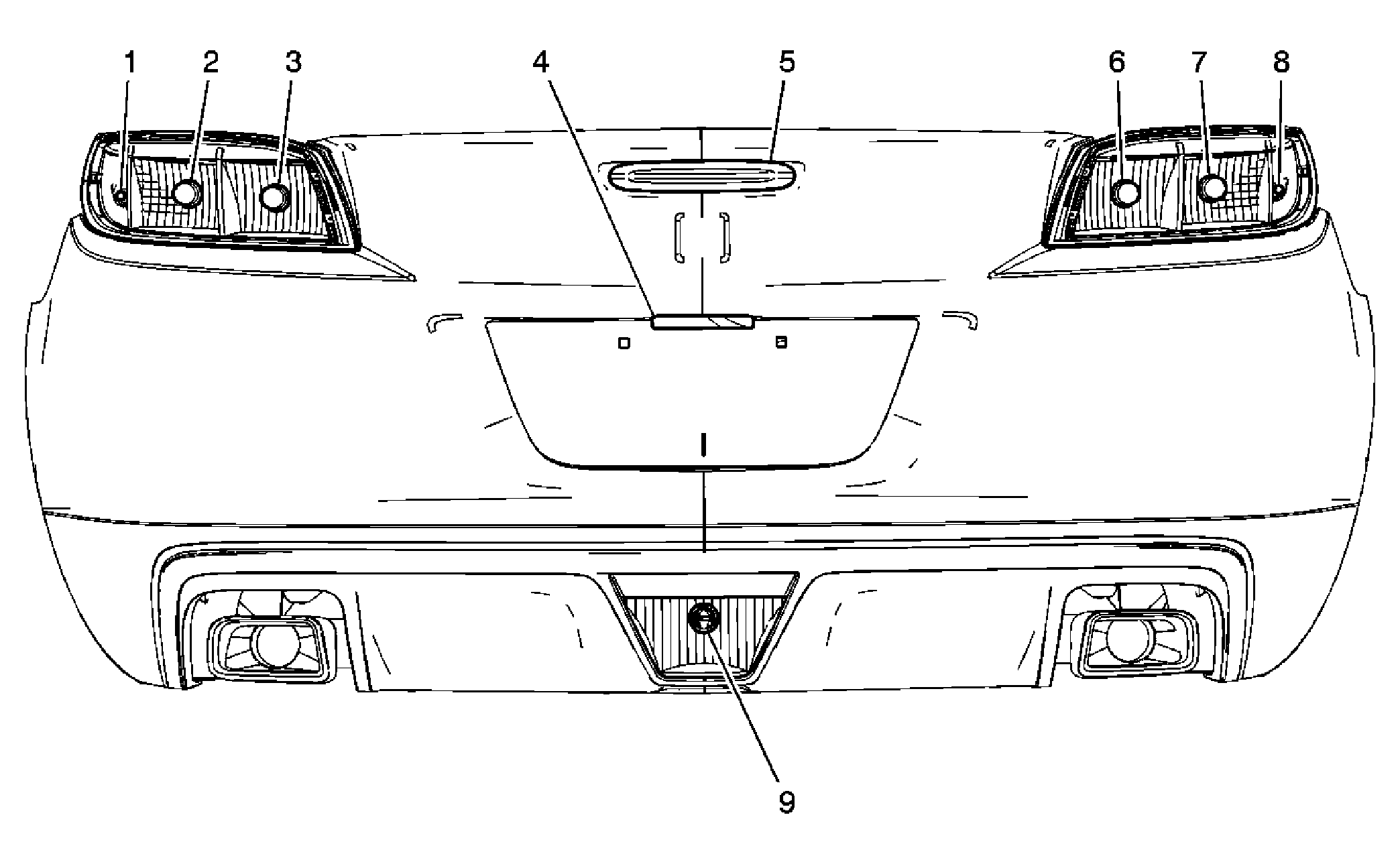

Fig 7: Rear Fascia (Sky)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Marker Lamp - Left Rear
2	Tail/Stop and Turn Signal Lamp - Left Outer
3	Tail/Stop and Turn Signal Lamp - Left Inner
4	License Lamp
5	Center High Mounted Stop Lamp (CHMSL)
6	Tail/Stop and Turn Signal Lamp - Right Inner
7	Tail/Stop and Turn Signal Lamp - Right Outer
8	Marker Lamp - Right Rear
9	Backup Lamp

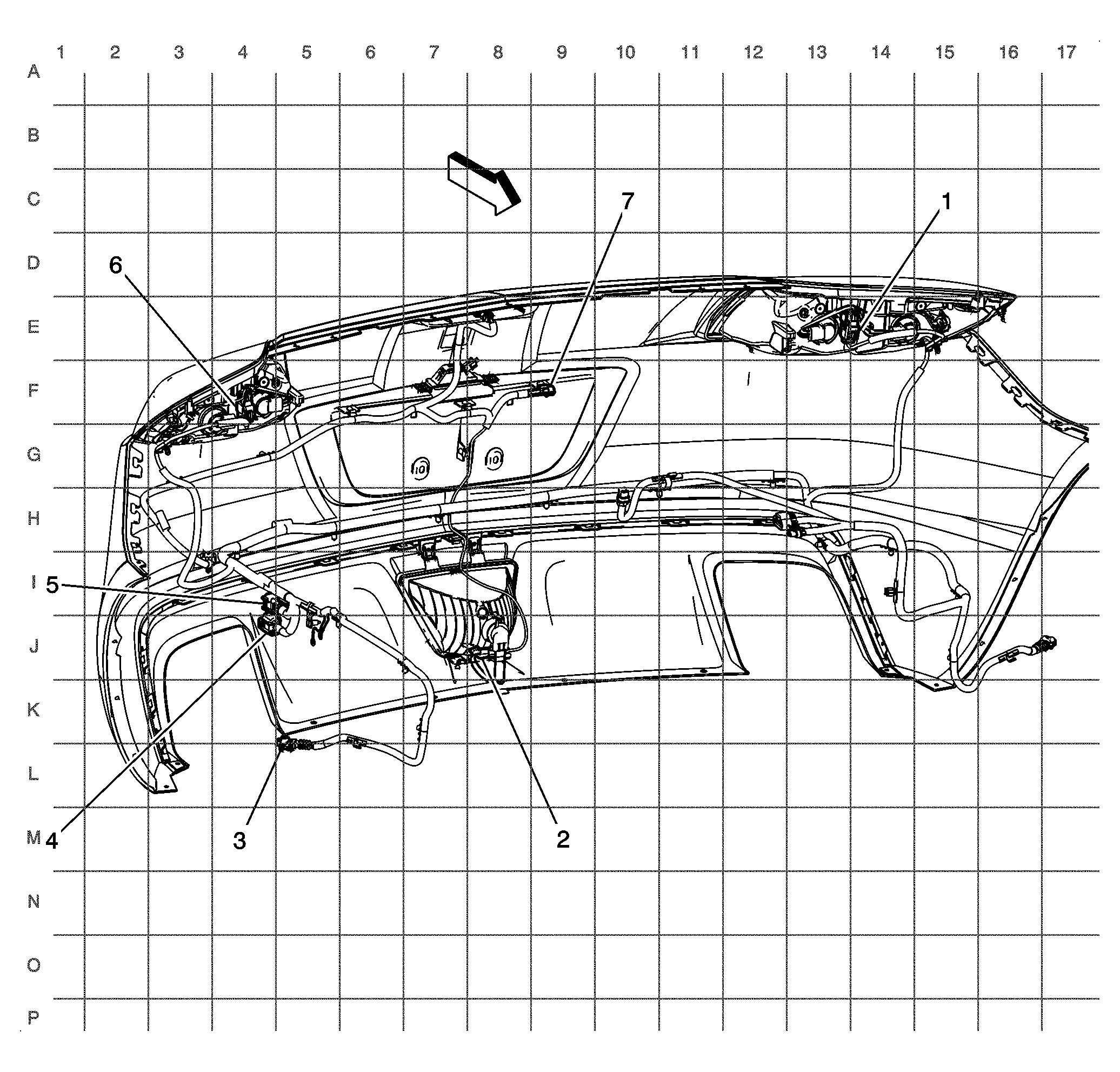

Fig 8: Rear Fascia Harness Routing (Sky)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	X405
2	X410
3	X408
4	X406
5	X400
6	X407
