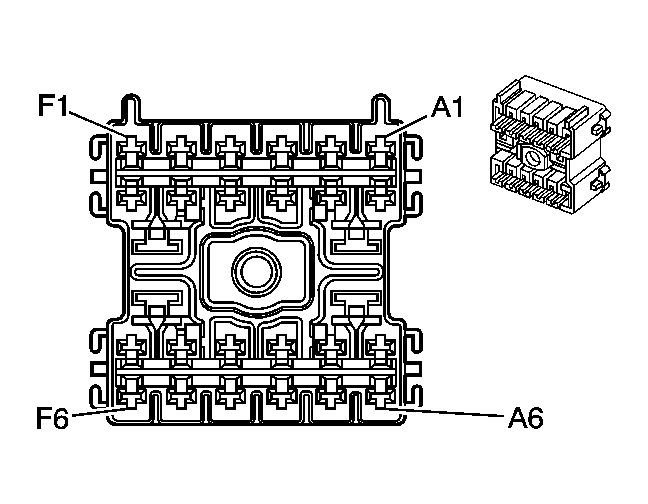

Fuse Block - Underhood X4
Fuse Block - Underhood X4
| Pin | Wire | Circuit | Function |
|---|---|---|---|
| A1 | 0.8 BN | 9 | Park Lamp Supply Voltage |
| A2-A5 | - | - | Not Used |
| A6 | 0.5 L-BU | 20 | Stop Lamp Supply Voltage |
| B1 | - | - | Not Used |
| B2 | 0.35 D-GN | 113 | Windshield Wiper Relay Control |
| B3-B4 | - | - | Not Available |
| B5 | 0.35 WH | 1080 | Park Lamp Relay Control |
| B6 | - | - | Not Used |
| C1 | 0.35 L-GN | 1715 | Windshield Wiper Switch High Signal |
| C2 | 3.0 PK | 739 | Ignition 1 Voltage |
| C3-C4 | - | - | Not Available |
| C5 | 0.5 RD/WH | 140 | Battery Positive Voltage |
| C6 | - | - | Not Used |
| D1 | 1.0 D-GN | 95 | Windshield Washer Switch Signal |
| D2 | - | - | Not Used |
| D3-D4 | - | - | Not Available |
| D5 | - | - | Not Used |
| D6 | 0.5 RD/WH | 1340 | Battery Positive Voltage |
| E1 | 1.0 PU | 92 | Windshield Wiper Motor High Speed Control |
| E2 | - | - | Not Used |
| E3-E4 | - | - | Not Available |
| E5 | - | - | Not Used |
| E6 | 0.35 RD/WH | 1340 | Battery Positive Voltage |
| F1 | - | - | Not Used |
| F2 | 0.35 YE | 5199 | Run/Crank Relay Coil Control |
| F3 | 0.5 L-BU | 14 | Left Turn Signal Lamp Supply Voltage |
| F4 | 2.0 RD/BK | 642 | Battery Positive Voltage |
| F5 | 0.35 BN | 4 | Accessory Voltage (M82) |
| F6 | - | - | Not Used |
Connector Part Information
Terminal Part Information
|
