Fuse Block - Underhood X2

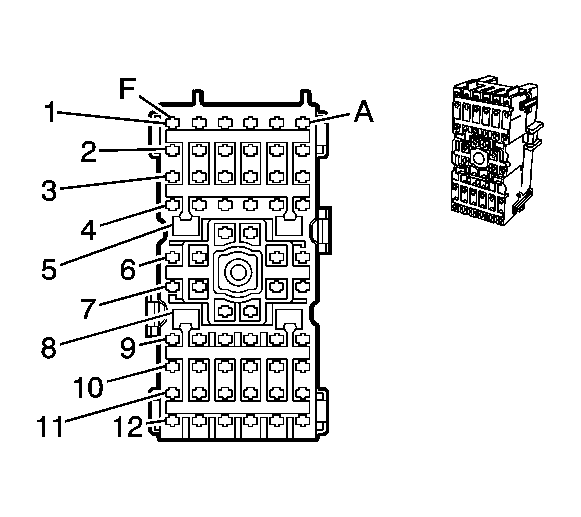

Fig 1: Fuse Block - Underhood X2 Connector End View
GM1592566Courtesy of GENERAL MOTORS CORP.
Fuse Block - Underhood X2

Pin Wire Circuit Function
A1 0.5 D-BU 15 Right Turn Signal Lamps Supply Voltage
A2-A4 - - Not Used
A5 5.0 RD/BK 142 Battery Positive Voltage
A6-A8 - - Not Used
A9 1.0 RD/WH 240 Battery Positive Voltage
A10-A12 - - Not Used
B1 0.35 TN 28 Horn Relay Control
B2 - - Not Used
B3 0.5 RD/WH 40 Battery Positive Voltage
B4 - - Not Used
B5 - - Not Available
B6 0.35 D-BU 38 Backup Lamp Relay Control (M82)
B7 - - Not Used
B8 - - Not Available
B9 - - Not Used
B10 0.5 PK/BK 5291 Ignition 1 Voltage
B11 - - Not Used
B12 0.35 WH 193 Rear Defog Relay Control
C1 0.35 YE 317 Fog Lamp Relay Control (SKY/T96)
C2 0.8 L-GN 24 Backup Lamp Supply Voltage (M82)
C3-C5 - - Not Used
C6-C7 - - Not Available
C8-C12 - - Not Used
D1-D2 - - Not Used
D3 0.35 RD/WH 440 Battery Positive Voltage
D4-D5 - - Not Used
D6-D7 - - Not Available
D8 0.35 L-GN/BK 592 Daytime Running Lights Relay Control
D9-D12 - - Not Used
E1 0.35 TN/WH 1969 Headlamp High Beam Relay Control
E2 1.0 GY 120 Fuel Pump Supply Voltage
E3 0.35 BN 253 Trunk Release Relay Control
E4 - - Not Used
E5 - - Not Available
E6 0.8 L-GN 24 Backup Lamp Supply Voltage (MA5)
E7 - - Not Used
E8 - - Not Available
E9-E11 - - Not Used
E12 1.0 PU 293 Rear Defog Element Supply Voltage
F1 0.35 PK/WH 1970 Headlamp Low Beam Relay Control
F2 0.5 D-GN/WH 465 Fuel Pump Relay Control
F3 1.0 TN/WH 56 Trunk Release Motor Supply Voltage
F4 - - Not Used
F5 3.0 RD/BK 242 Battery Positive Voltage
F6 3.0 RD/BK 442 Battery Positive Voltage
F7-F8 - - Not Used
F9 1.0 BK 250 Ground
F10-F12 - - Not Used
Connector Part Information
  • OEM: R61927-001-B
  • Service: 88988756
  • Description: 64-Way F (BK)

Terminal Part Information
  • Pins: B6, B9
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
  • Pins: F6
  • Terminal/Tray: 7116-4112-02/9
  • Core/Insulation Crimp: C/D
  • Release Tool/Test Probe: 12094430/J-35616-35 (VT)
  • Pins: A1, B1, B3, B9, B10, B12, C1, D3, E1, E3, F1, F2
  • Terminal/Tray: 7116-4110-02/9
  • Core/Insulation Crimp: E/C
  • Release Tool/Test Probe: 12094430/J-35616-4A (PU)
  • Pins: A5, F5
  • Terminal/Tray: 7116-4122-02/10
  • Core/Insulation Crimp: Pins A5 - D/G
  • Core/Insulation Crimp: Pins F5 - A/B
  • Release Tool/Test Probe: 12094430/J-35616-42 (RD)
  • Pins: A9, E2, E12, F9, C2, E6, F3, F3
  • Terminal/Tray: 7116-4111-02/9
  • Core/Insulation Crimp: Pins A9, E2, E12, F9 - C/A
  • Core/Insulation Crimp: Pins C2, E6, F3, F3 - E/A
  • Release Tool/Test Probe: 12094430/J-35616-4A (PU)
