Torque Converter Clutch Pulse Width Modulated (TCC PWM) Solenoid Valve, Wiring Harness Side (M82)

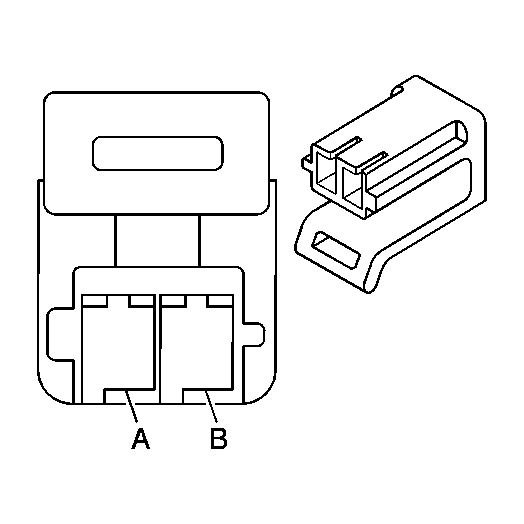

Fig 1: Torque Converter Clutch Pulse Width Modulated (TCC PWM) Solenoid Valve, Wiring Harness Side (M82) Connector End View

Courtesy of GENERAL MOTORS CORP.

Torque Converter Clutch Pulse Width Modulated (TCC PWM) Solenoid Valve, Wiring Harness Side (M82)

Pin	Wire	Circuit	Function
A	YE	418	Torque Converter Clutch Pulsewidth Modulated Solenoid Valve Control
B	WH	1525	Clutch Pressure Control Solenoid Valve 1 High Control

Connector Part Information  OEM: 12162202 Service: See Catalog Description: 2-Way F Metri-Pack 150.2 Series P2S (BU) Terminal Part Information  Terminal/Tray: Non-Serviceable Core/Insulation Crimp: Non-Serviceable Release Tool/Test Probe: Non-Serviceable
