Park Lamp - Right Front (SKY)

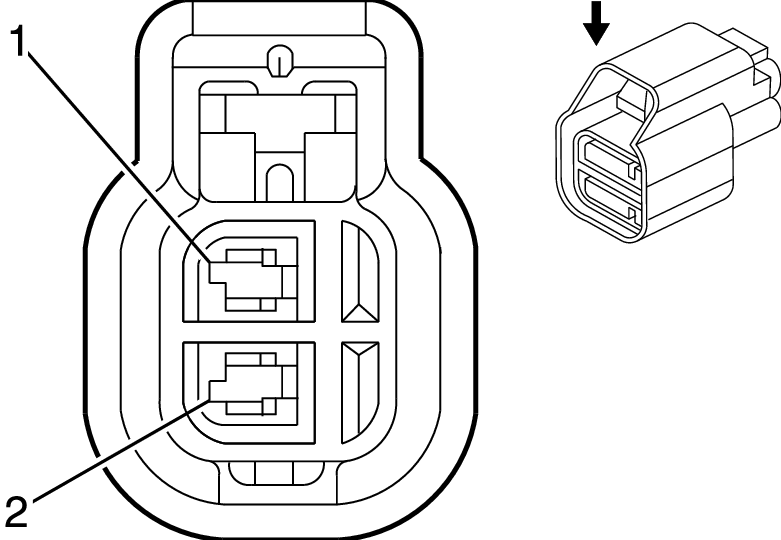

Fig 1: Park Lamp - Right Front (SKY) Connector End View
GM1625659Courtesy of GENERAL MOTORS CORP.
Park Lamp - Right Front (SKY)

Pin Wire Circuit Function
1 0.5 BN 9 Park Lamp Supply Voltage
2 0.8 BK 250 Ground
Connector Part Information
  • OEM: E-3550-000
  • Service: 89046838
  • Description: 2-Way F 1.5 Series, Sealed (BK)
Terminal Part Information
  • Terminal: Pin 1: 7116-4102-08/9

    Pin 2: 7116-4103-08/9

  • Core/Insulation Crimp: E/1
  • Release Tool/Test Probe: 12094430/J-35616-2A (GY)
