Radio Replacement

WARNING: This page is about a different car, the 2008 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

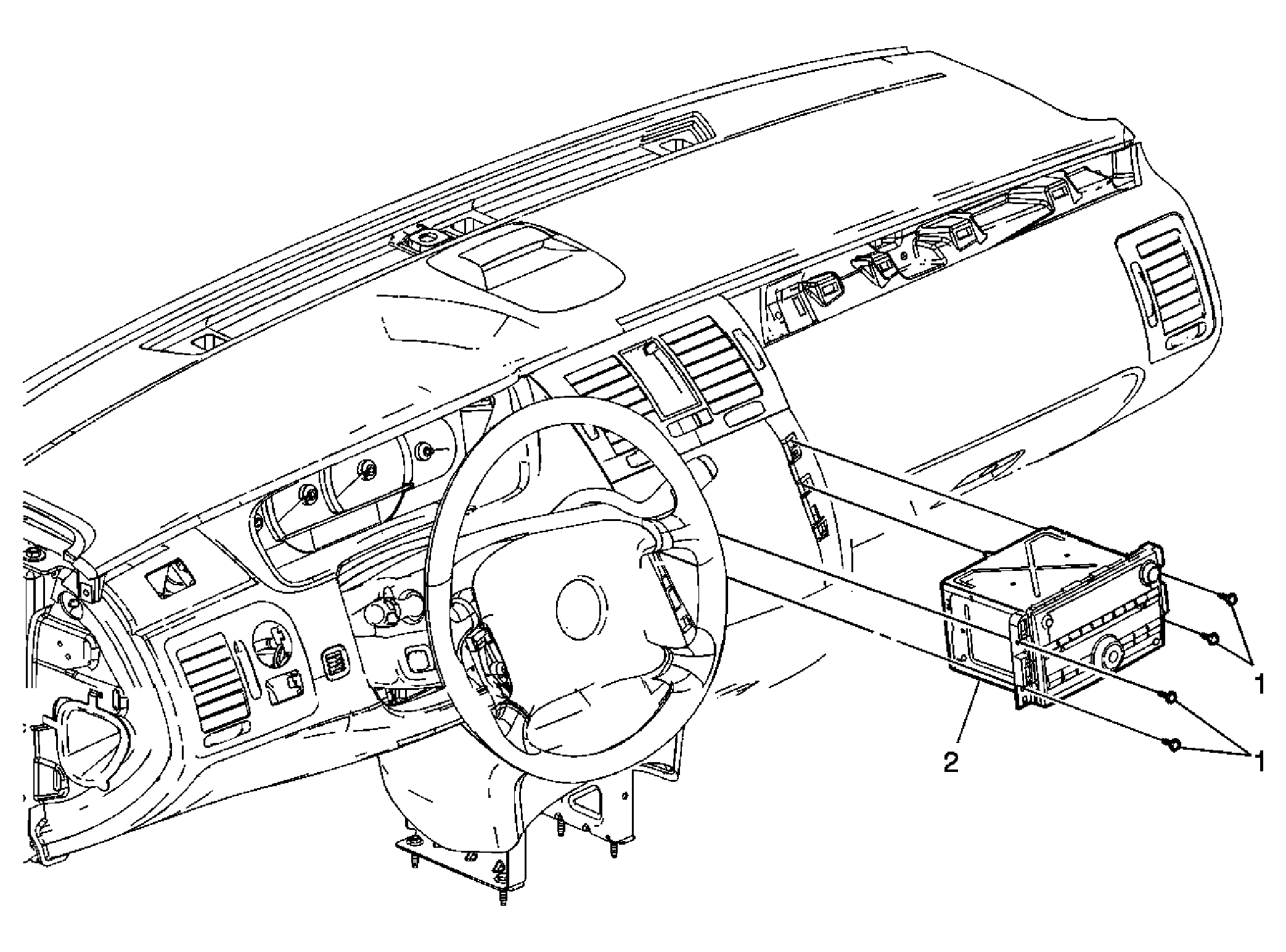

Fig 1: View Of Radio & Bolts

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the instrument panel (I/P) accessory trim plate. Refer to Instrument Panel Center Trim Panel Replacement . Remove the HVAC control assembly. Refer to Heater and Air Conditioning Control Replacement . Remove the I/P center air outlet. Refer to Instrument Panel Center Air Outlet Replacement . If installing a replacement radio, program the radio. Refer to Control Module References .
1	Radio Bolt/Screw (Qty: 4) NOTE: Refer to Fastener Notice . Tighten: 2 N.m (18 lb in)
2	AM/FM Stereo Radio Receiver

Callout

Component Name

Preliminary Procedure

Remove the instrument panel (I/P) accessory trim plate. Refer to Instrument Panel Center Trim Panel Replacement .
Remove the HVAC control assembly. Refer to Heater and Air Conditioning Control Replacement .
Remove the I/P center air outlet. Refer to Instrument Panel Center Air Outlet Replacement .
If installing a replacement radio, program the radio. Refer to Control Module References .

Radio Bolt/Screw (Qty: 4)

NOTE: Refer to Fastener Notice .

Tighten: 2 N.m (18 lb in)

AM/FM Stereo Radio Receiver
