Sunroof Control Module X2 (CF5)

WARNING: This page is about a different car, the 2008 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

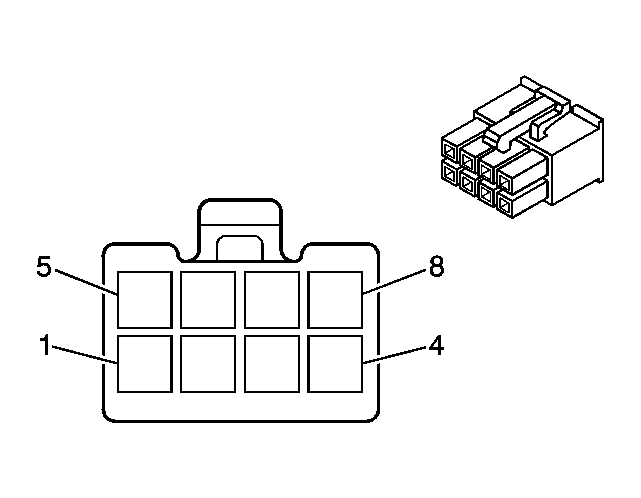

Fig 1: Sunroof Control Module X2 (CF5) Connector End View

Courtesy of GENERAL MOTORS CORP.

Pin	Wire	Circuit	Function
1	0.5 YE	133	Sunroof Limit Switch Low Reference
2	0.5 PK	2075	Sunroof Switch Data 4
3	0.5 OG	110	Sunroof Switch Data 1
4	0.5 D-GN	2074	Sunroof Switch Data 2
5	0.5 D-BU	128	Sunroof Switch Low Reference
6	0.5 BN	100	Sunroof Switch Data 3
7	0.5 OG/BK	144	Sunroof Switch Data 6
8	0.5 RD	132	Sunroof Limit Switch Soft Stop Signal

Connector Part Information

OEM: 12124357
Service: 15306076
Description: 8-Way F (WH)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit
