Seat Rear Horizontal Position Sensor - Driver (A45) (Part of Seat Adjuster Motor Assembly Driver)

WARNING: This page is about a different car, the 2008 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

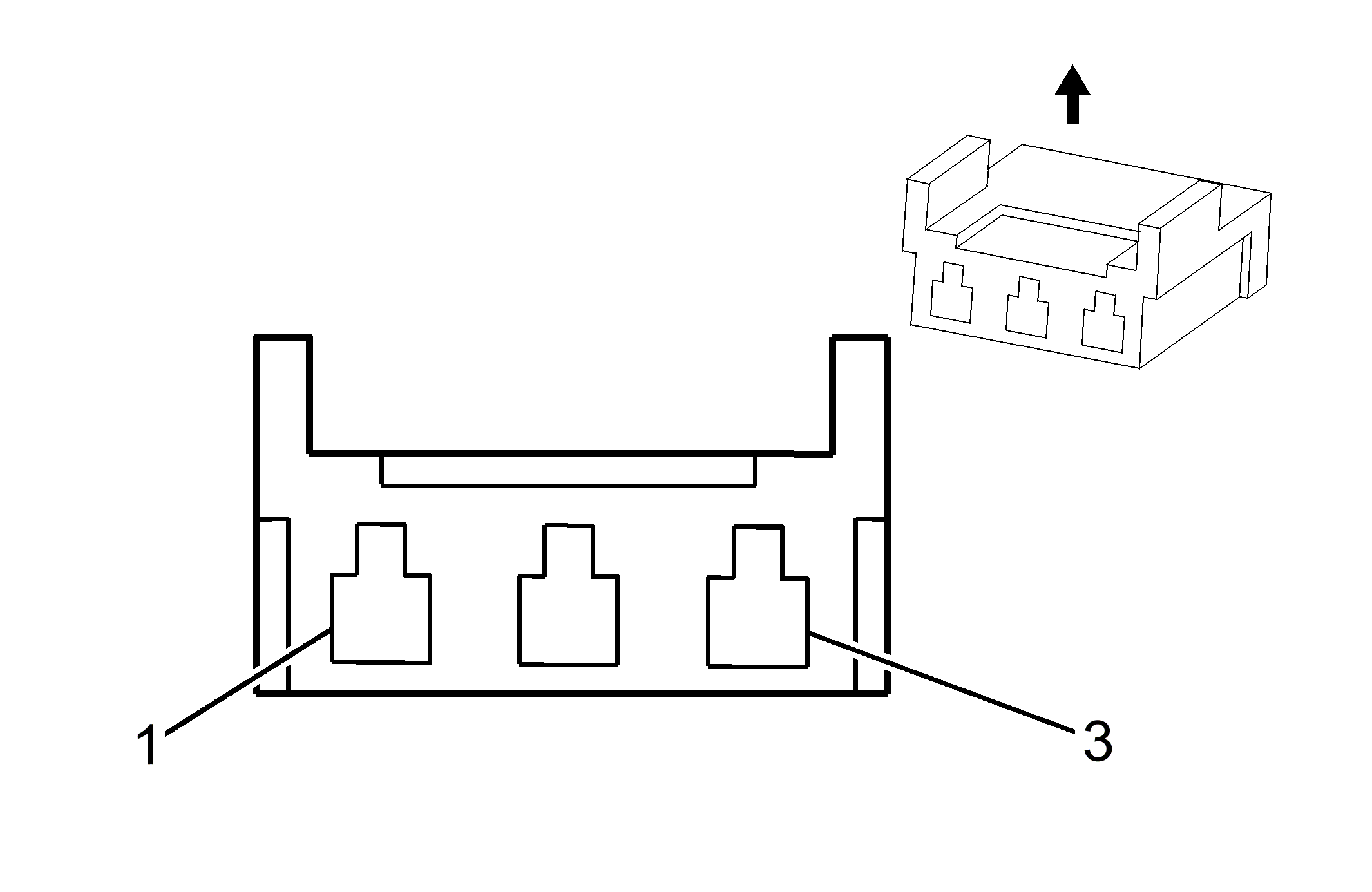

Fig 1: Seat Rear Horizontal Position Sensor - Driver (A45) Connector End View
GM1356095Courtesy of GENERAL MOTORS CORP.
Seat Rear Horizontal Position Sensor - Driver (A45) (Part of Seat Adjuster Motor Assembly Driver)

Pin Wire Circuit Function
1 0.35 BK - Memory Seat Sensor Low Reference
2 0.35 L-BU - Horizontal Seat Motor Position Sensor Signal
3 0.35 RD - 5-Volt Reference
Connector Part Information
  • OEM: See Catalog
  • Service: See Catalog
  • Description: 3-Way F (WH)
Terminal Part Information
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
