Engine Controls Schematics

WARNING: This page is about a different car, the 2008 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

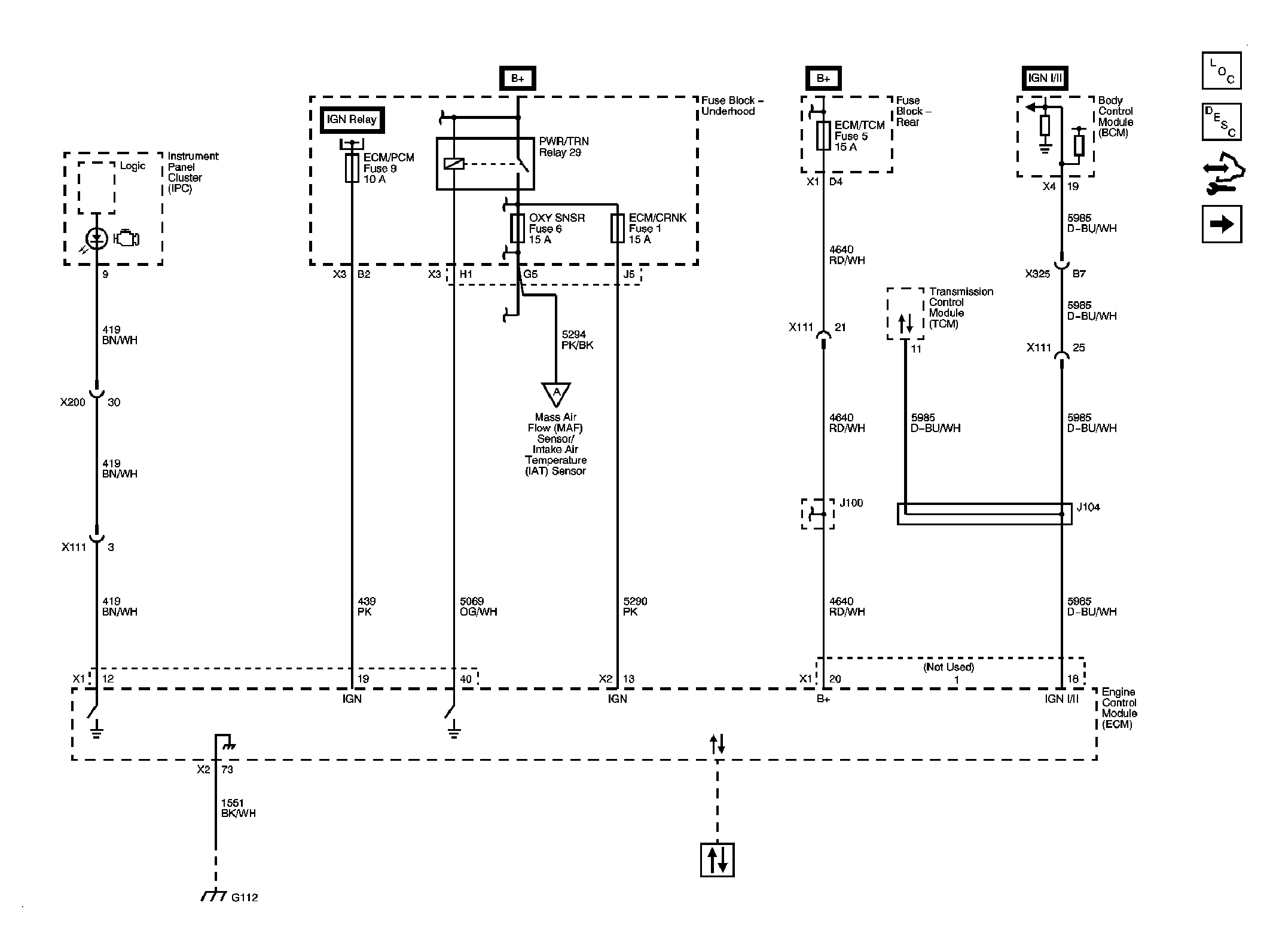

Fig 1: Power, Ground, MIL & DLC Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 2: Engine Data Sensors, 5-Volt Reference Bussing Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 3: Engine Data Sensors, Pressure, Temp & MAF/IAT Schematic

Courtesy of GENERAL MOTORS CORP.

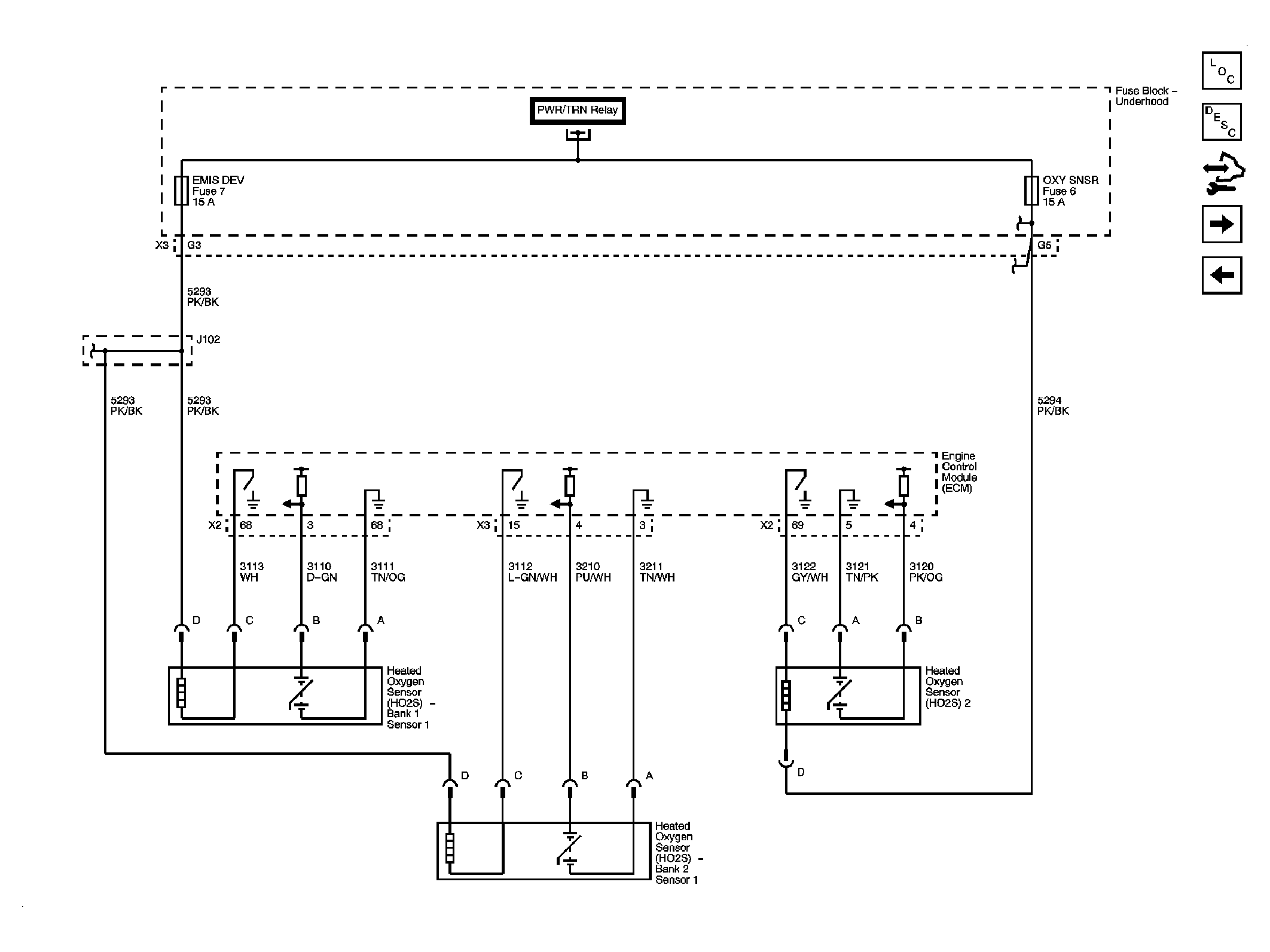

Fig 4: Engine Data Sensors, HO2S Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 5: Engine Data Sensors, APP & Throttle Body Assembly Schematic

Courtesy of GENERAL MOTORS CORP.

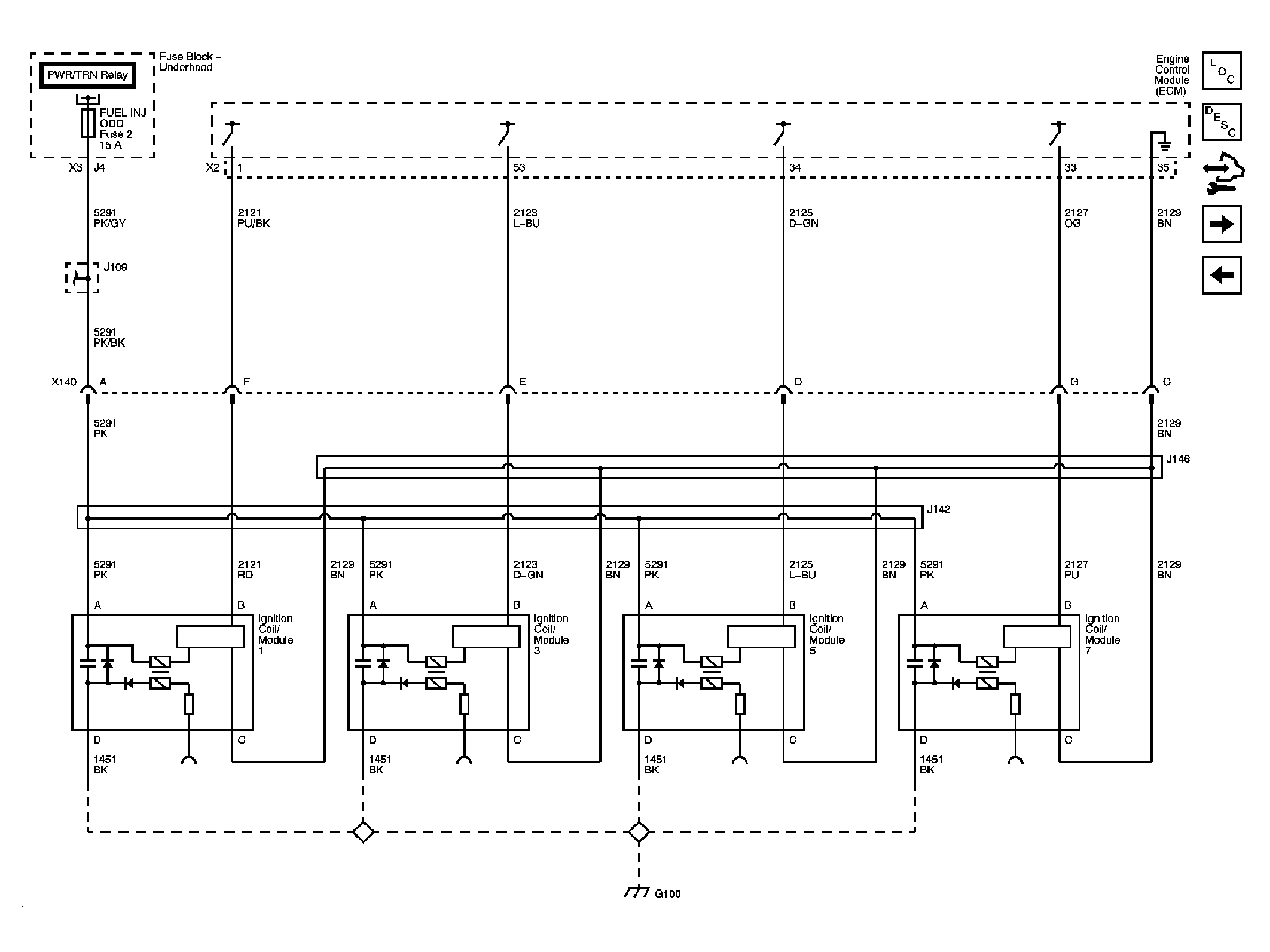

Fig 6: Ignition Controls 1 of 2 Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 7: Ignition Controls 2 of 2 Schematic

Courtesy of GENERAL MOTORS CORP.

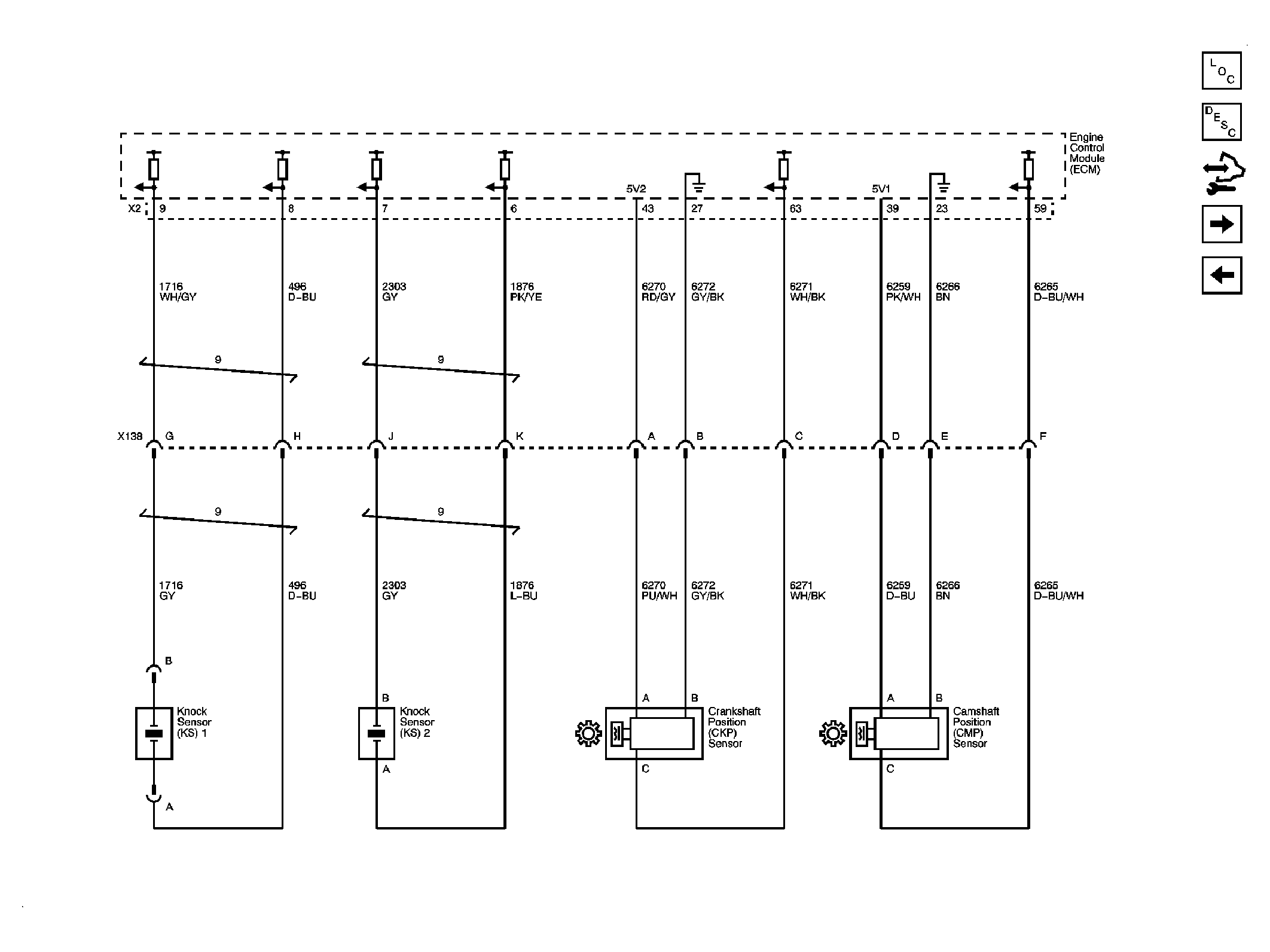

Fig 8: CKP, CMP, Knock Sensors Schematic

Courtesy of GENERAL MOTORS CORP.

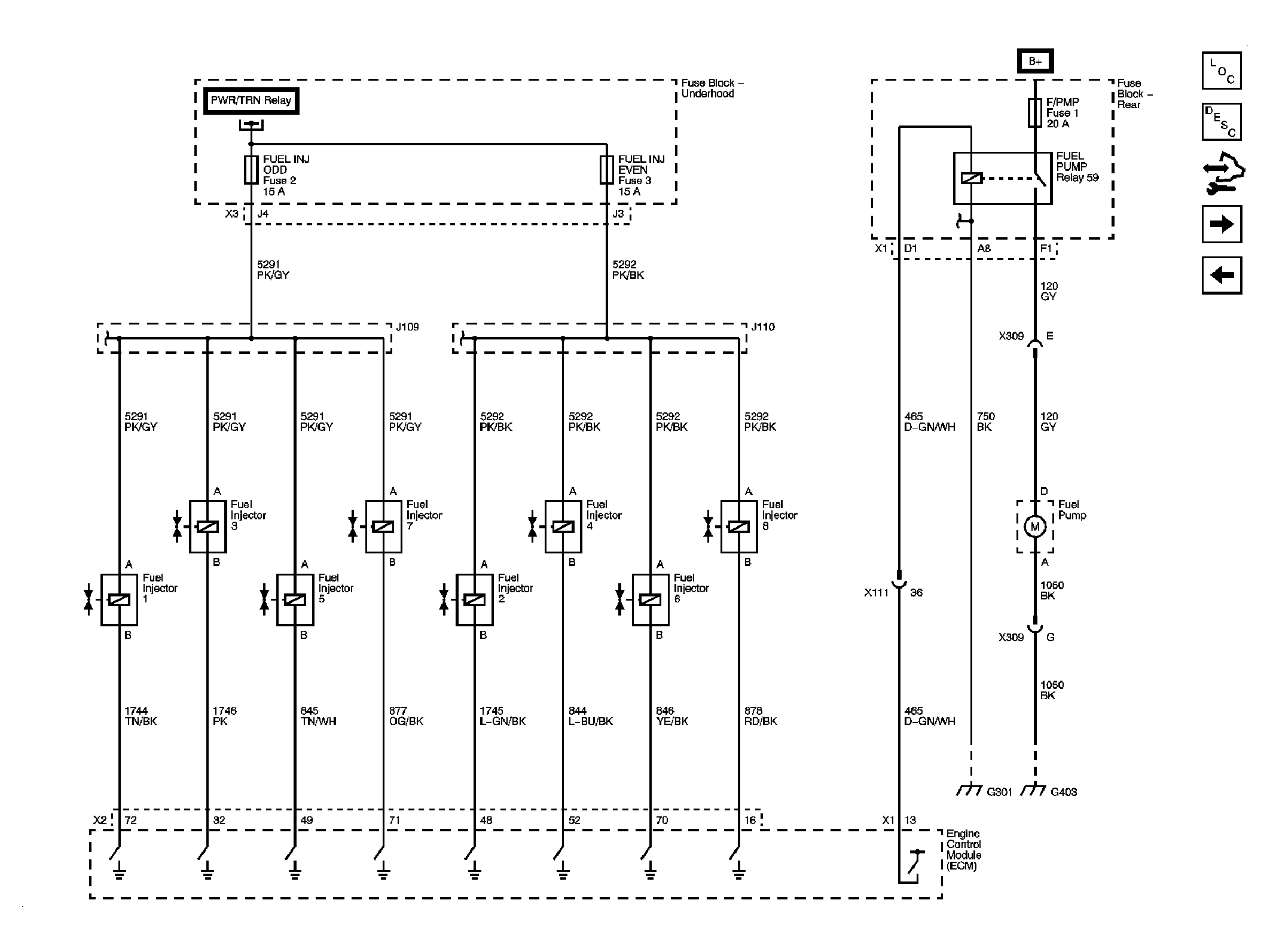

Fig 9: Fuel Controls Schematic

Courtesy of GENERAL MOTORS CORP.

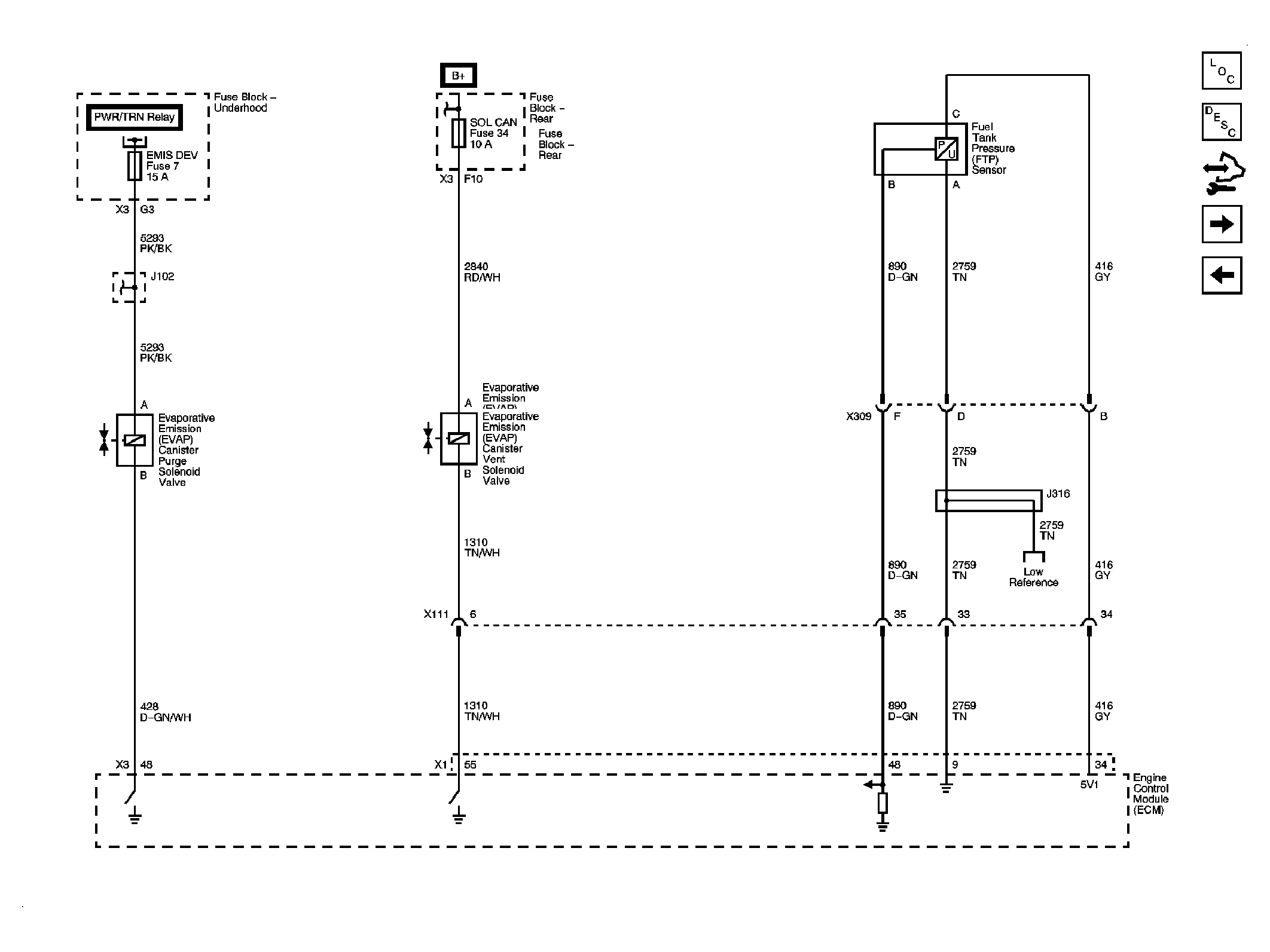

Fig 10: EVAP Controls Schematic

Courtesy of GENERAL MOTORS CORP.

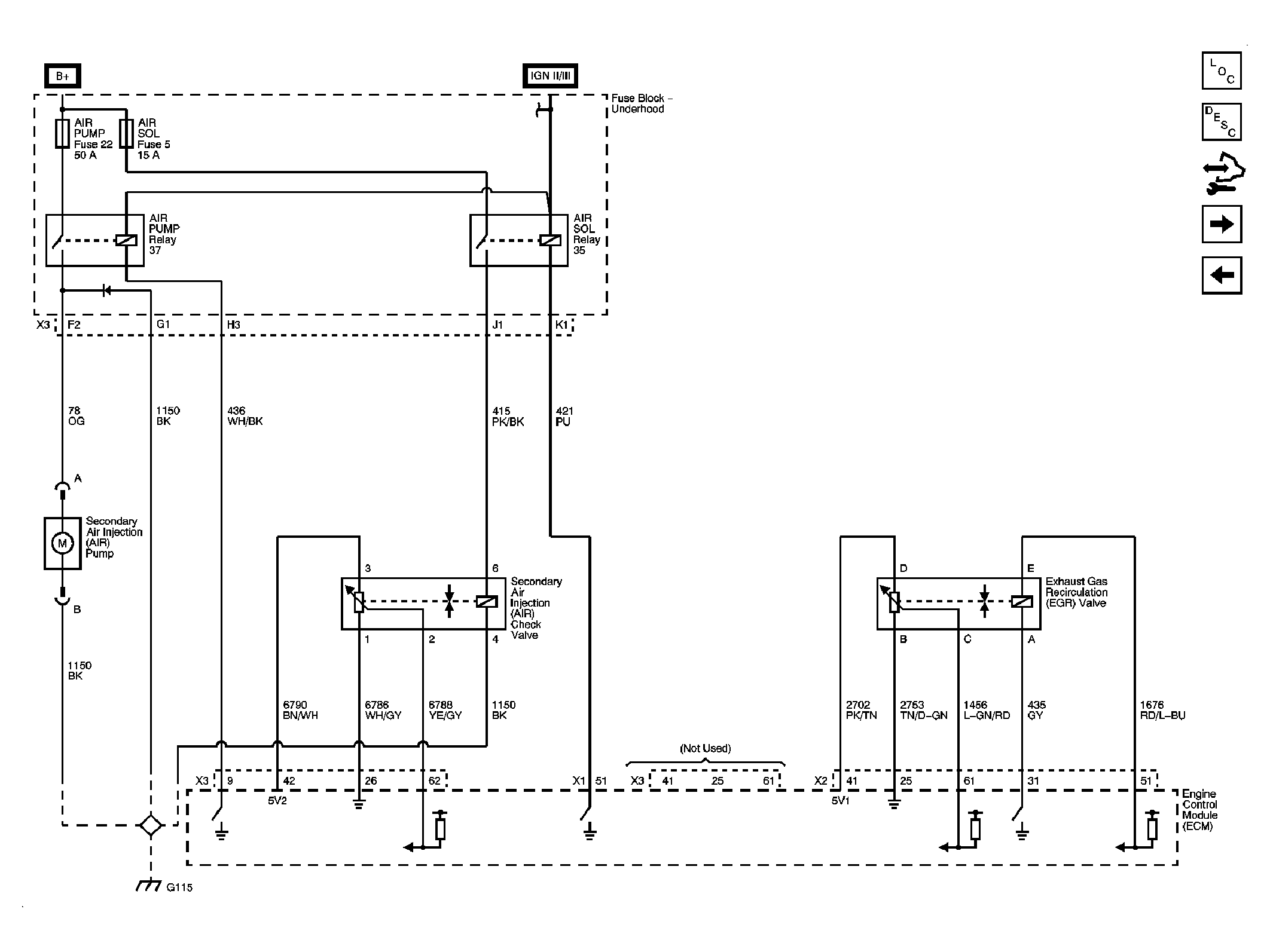

Fig 11: AIR, EGR Schematic

Courtesy of GENERAL MOTORS CORP.

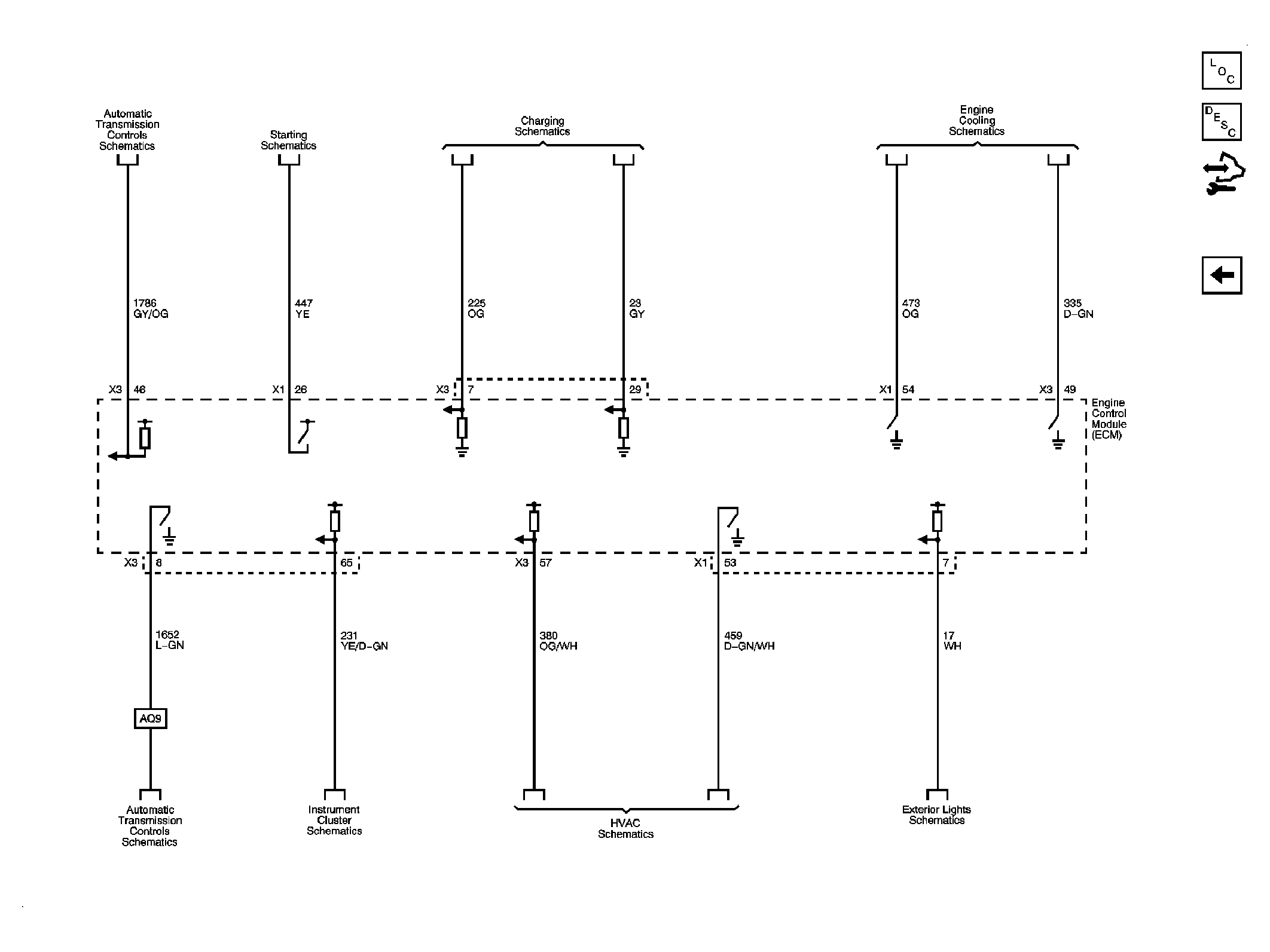

Fig 12: Controlled/Monitored Subsystem References Schematic

Courtesy of GENERAL MOTORS CORP.
