Door Lock Switch Replacement

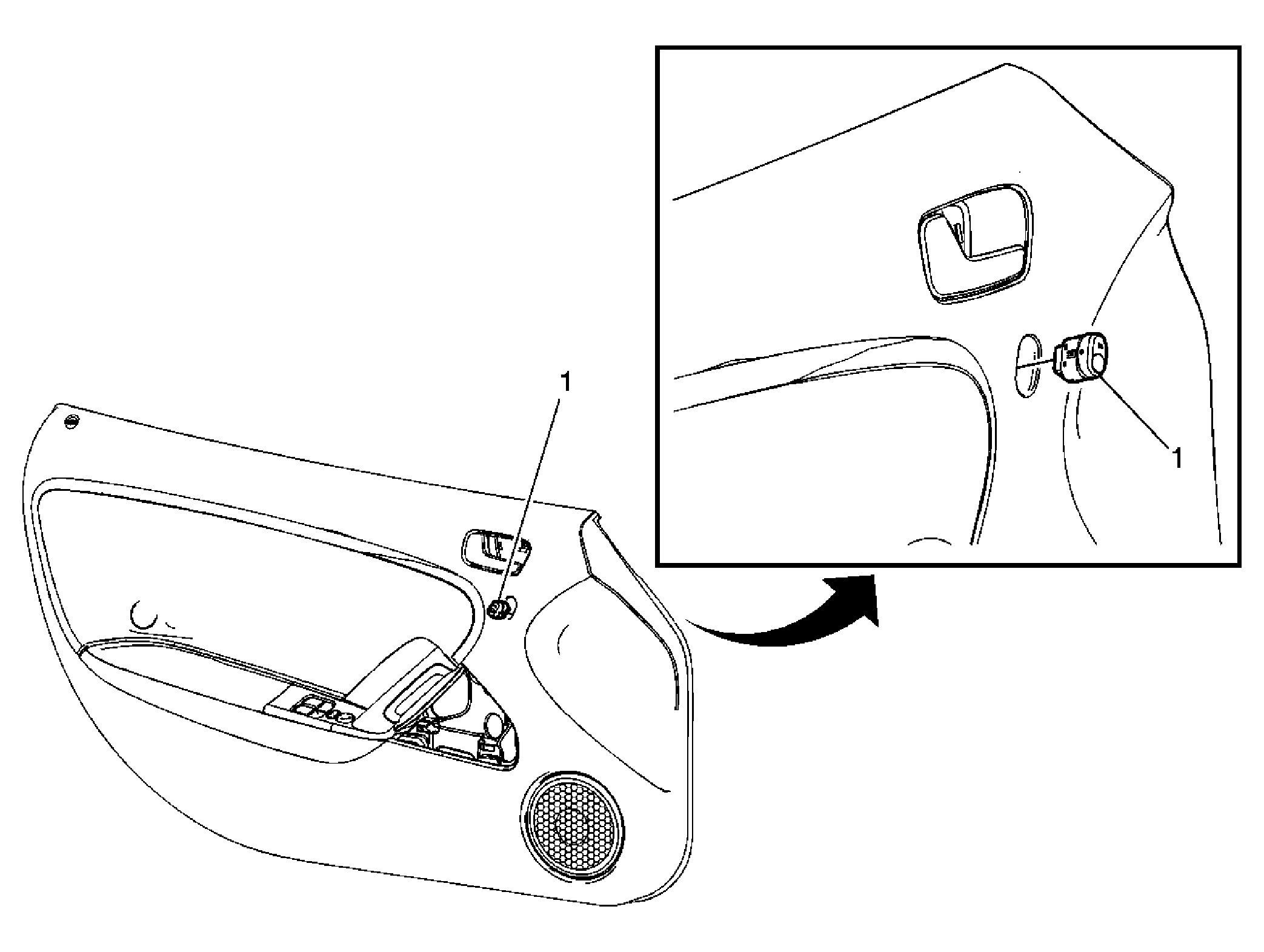

Fig 1: View Of Door Lock Switch
GM1865404Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Remove the front door trim panel. Refer to Door Trim Panel Replacement .
1 Switch Assembly, Door Lock

Procedure

  1. Disconnect the electrical connector.
  2. Disengage retaining tabs on switch and push out from back of door trim panel.
