Front Seat Belt Buckle Replacement

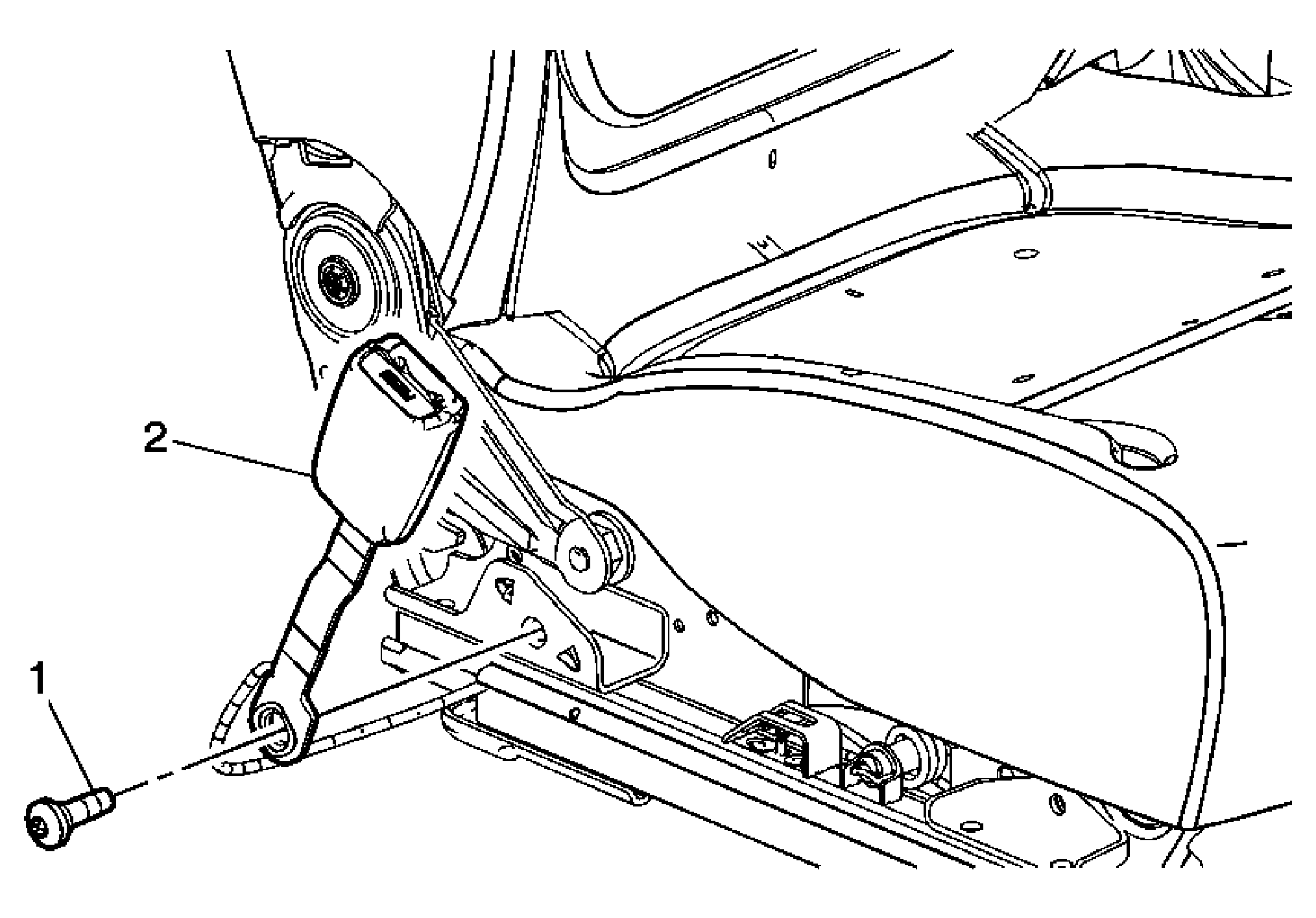

Fig 1: View Of Front Seat Belt Buckle & Bolt
GM1581958Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Remove the front seat. Refer to Seat Replacement .
1 Seat Belt Buckle Bolt
NOTE: Refer to Fastener Notice .

Tighten:  45 N.m (33 lb ft)
2 Seat Belt Buckle Assembly
