Passenger Compartment/Roof Component Views

Fig 1: Cellular Communication Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Cellular Microphone (UE1)
2	Inside Rearview Mirror
3	Onstar Button Assembly (UE1)
4	Inside Rearview Mirror Lamps
5	Antenna
6	Cellular and Navigational Antenna (UE1/U2K)
7	Remote Control Door Lock Receiver (RCDLR)(UE1)
8	Vehicle Communication Interface Module (VCIM)(UE1)

Fig 2: Entertainment Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Speaker - Left Tweeter
2	Cellular Microphone (UE1)
3	Steering Wheel Control Switch - Right (Uk3)
4	Radio/Navigation Unit (UE1/U2K)
5	Speaker - Right Tweeter
6	Windshield Side Molding Garnish - Right
7	Speaker - Right Front Door
8	Antenna
9	Speaker - Right Rear
10	Instrument Panel Body Harness
11	Speaker - Subwoofer (UQ3)
12	X401 (U2K)
13	Digital Radio Receiver (U2K)
14	Cellular and Navigational Antenna (UE1/U2K)
15	Audio Amplifier (UQ3)
16	Speaker - Left Rear
17	Speaker - Left Front Door
18	Steering Wheel Control Switch - Left (K34)
19	Windshield Side Molding Garnish - Left
20	Horn Switch

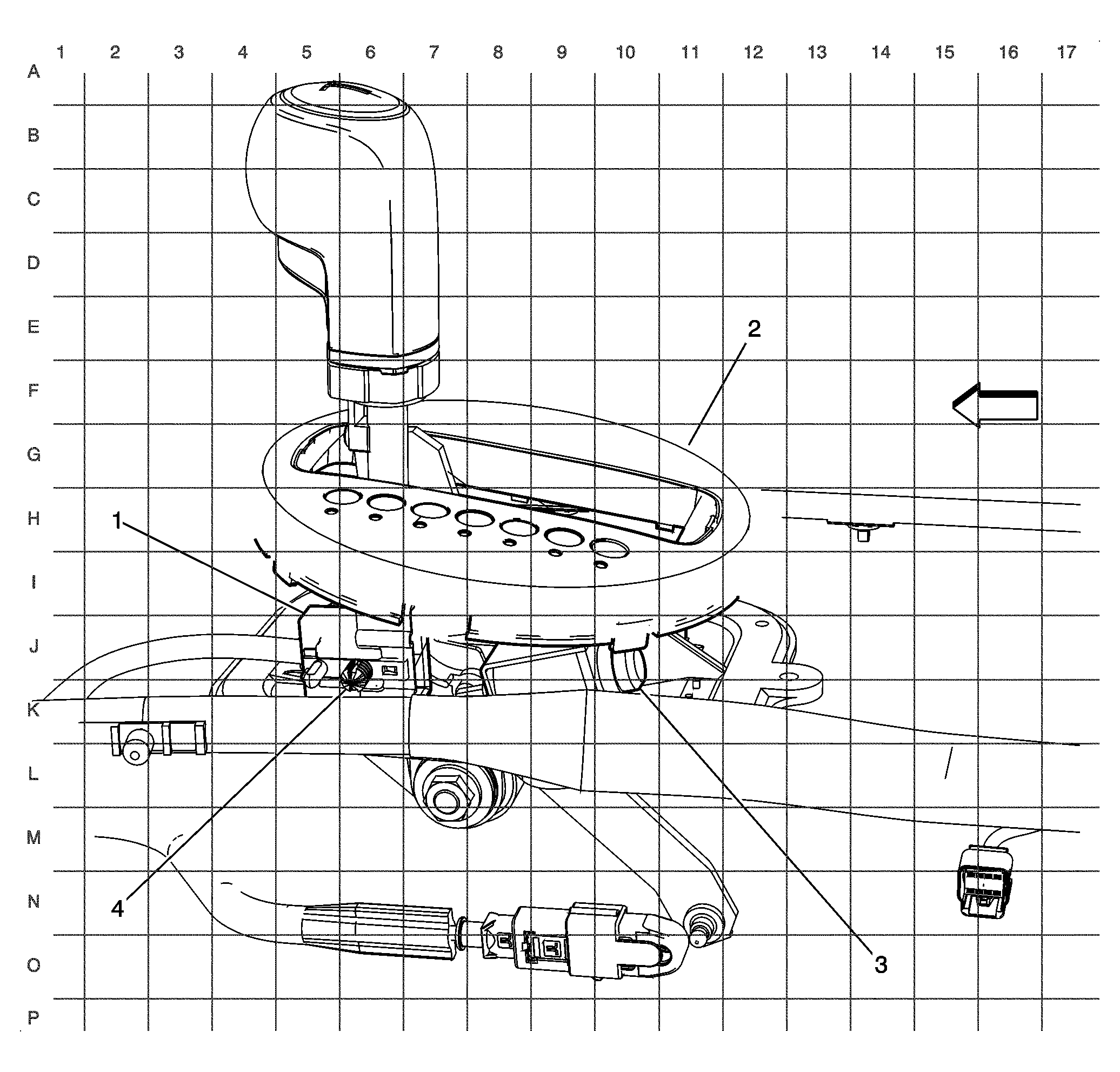

Fig 3: Underneath Floor Shifter

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	X207
2	Floor Shifter

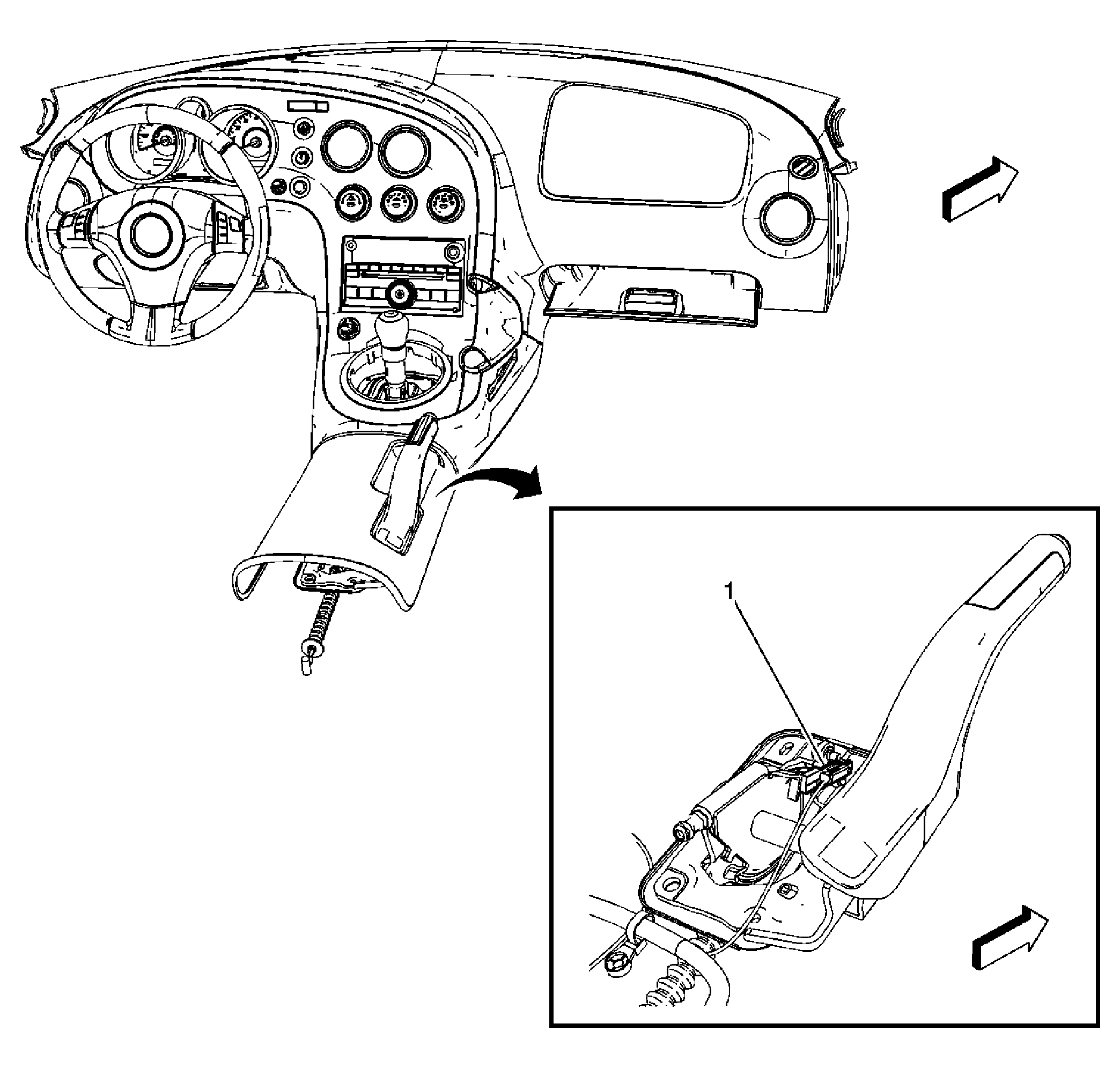

Fig 4: Park Brake Release Switch (Floor Console)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Park Brake Release Switch

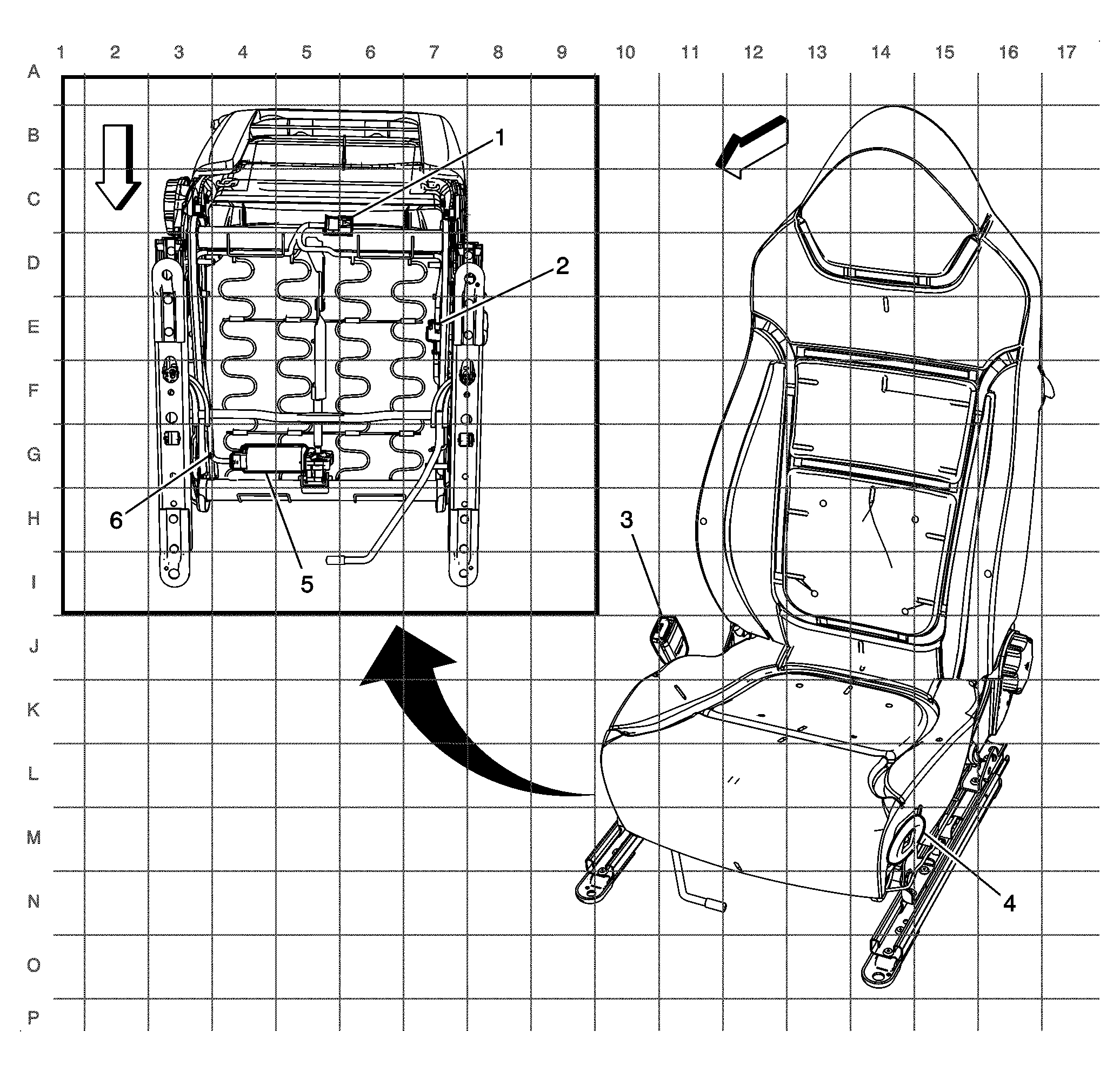

Fig 5: Driver Seat Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	X317
2	Seat Belt Switch - Driver Connector
3	Seat Belt Switch - Driver
4	Seat Adjuster Switch - Driver (AF2)
5	Seat Front Vertical Motor - Driver (AF2)
6	J302

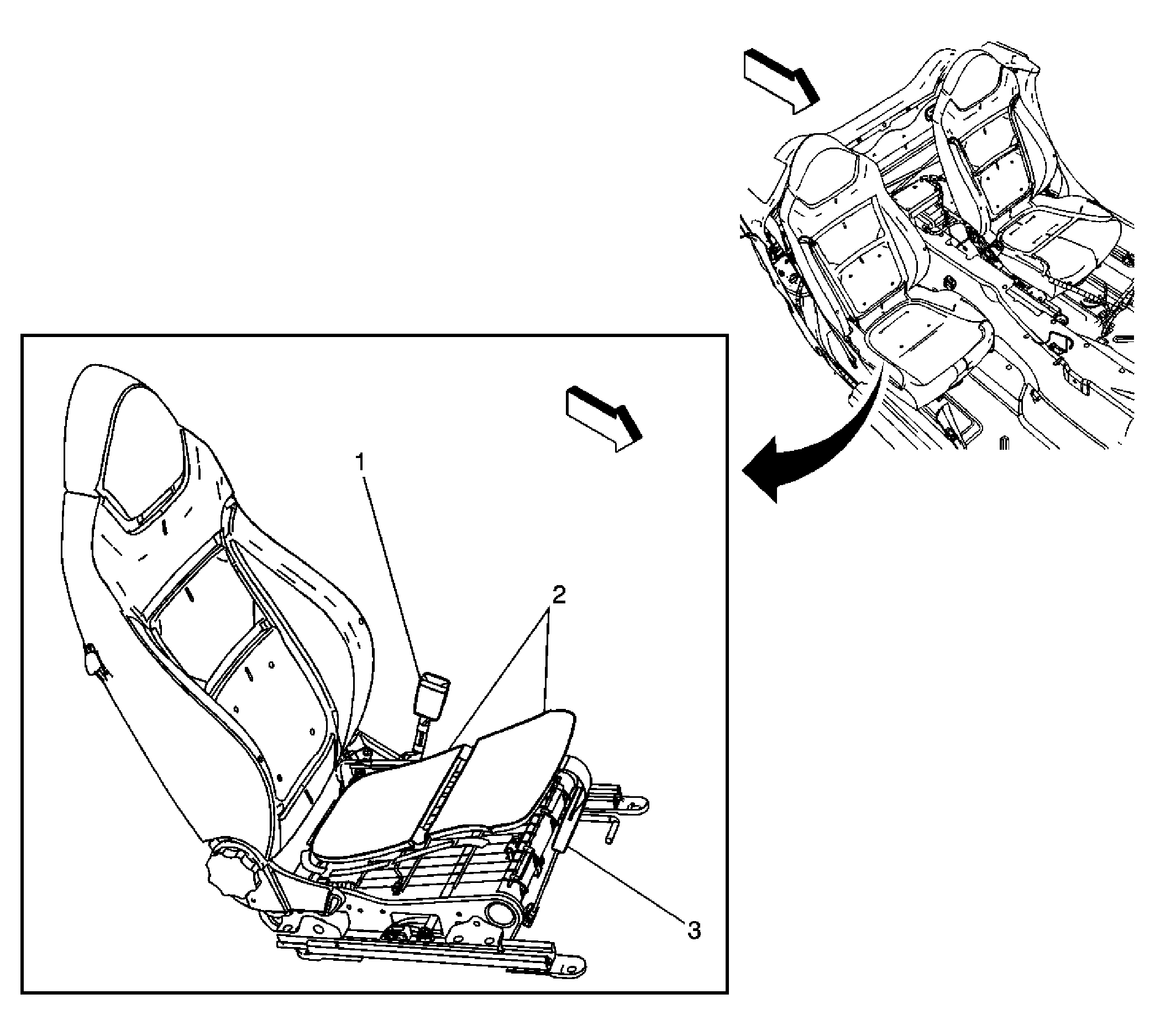

Fig 6: Under the Passenger Seat

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Seat Belt Switch - Passenger
2	Inflatable Restraint Front Passenger Presence System (PPS) Sensor
3	Inflatable Restraint Passenger Presence System (PPS) Module

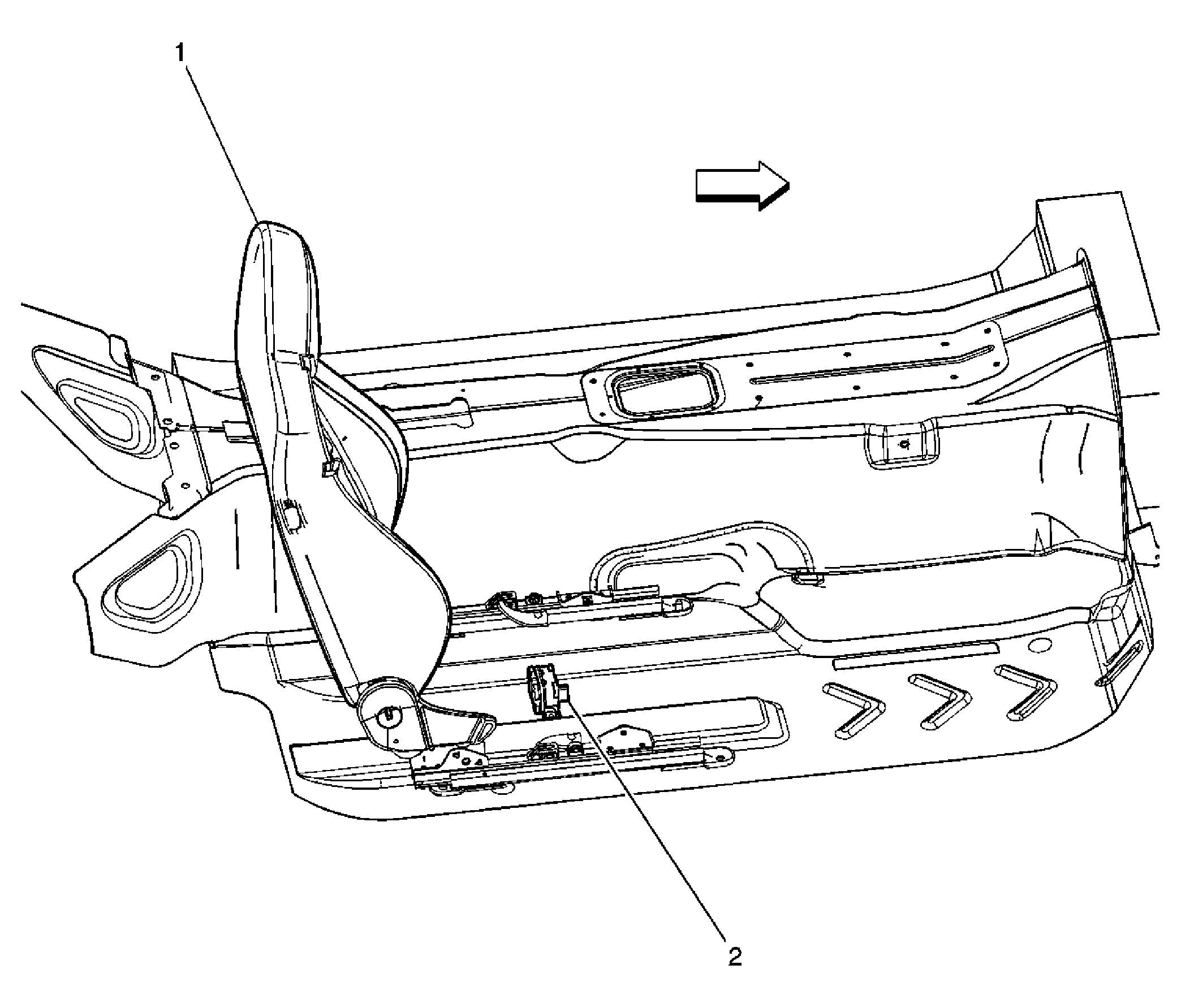

Fig 7: Under the Passenger Seat

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Passenger Seat
2	Yaw and Lateral Accelerometer Sensor (JL4)

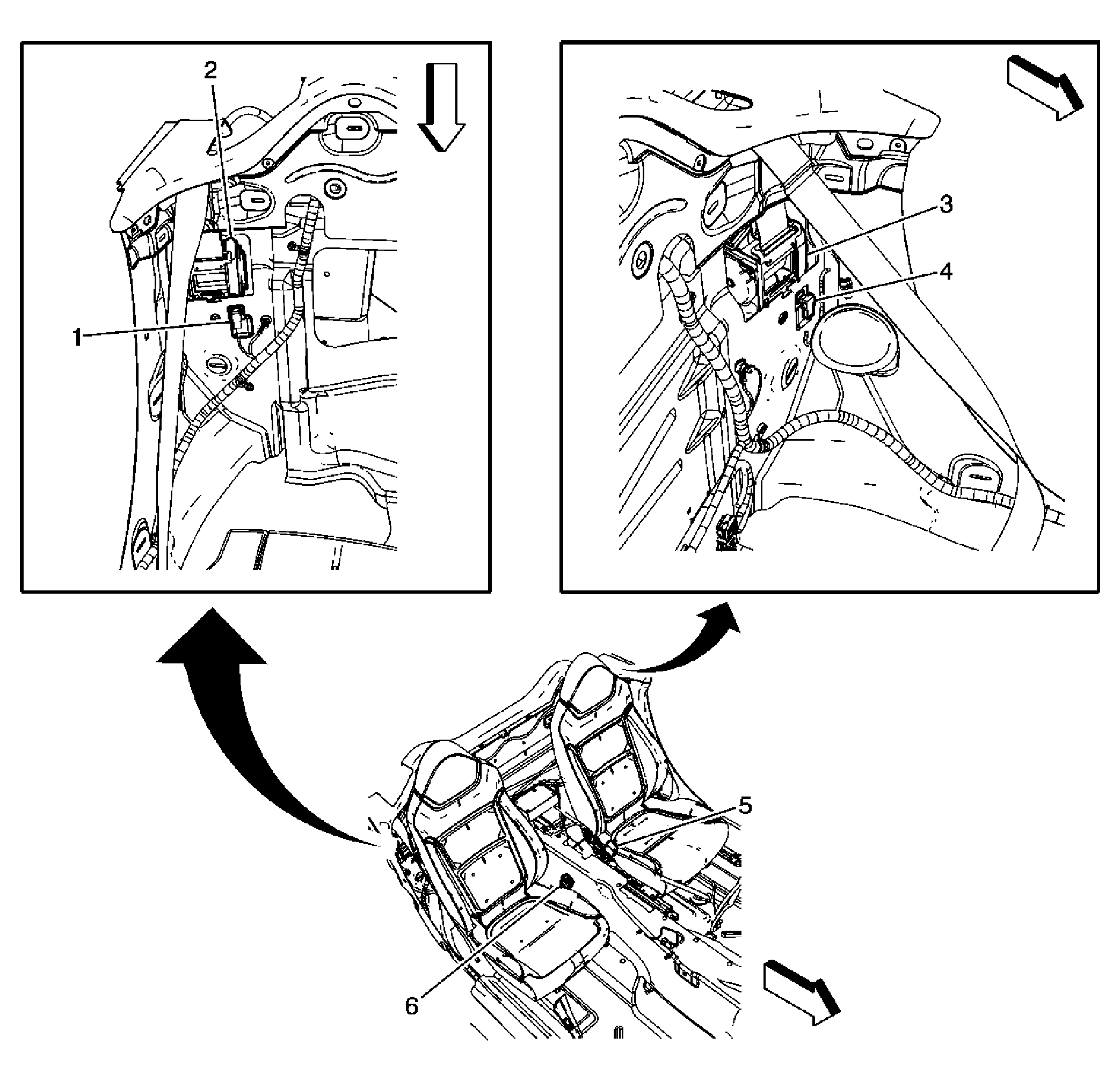

Fig 8: SIR Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Seat Belt Pretensioner - Passenger Connector
2	Seat Belt Pretensioner - Passenger
3	Seat Belt Pretensioner - Driver
4	Seat Belt Pretensioner - Driver Connector
5	Seat Belt Switch - Driver
6	Inflatable Restraint Sensing and Diagnostic Module (SDM)
7	Seat Belt Switch - Passenger

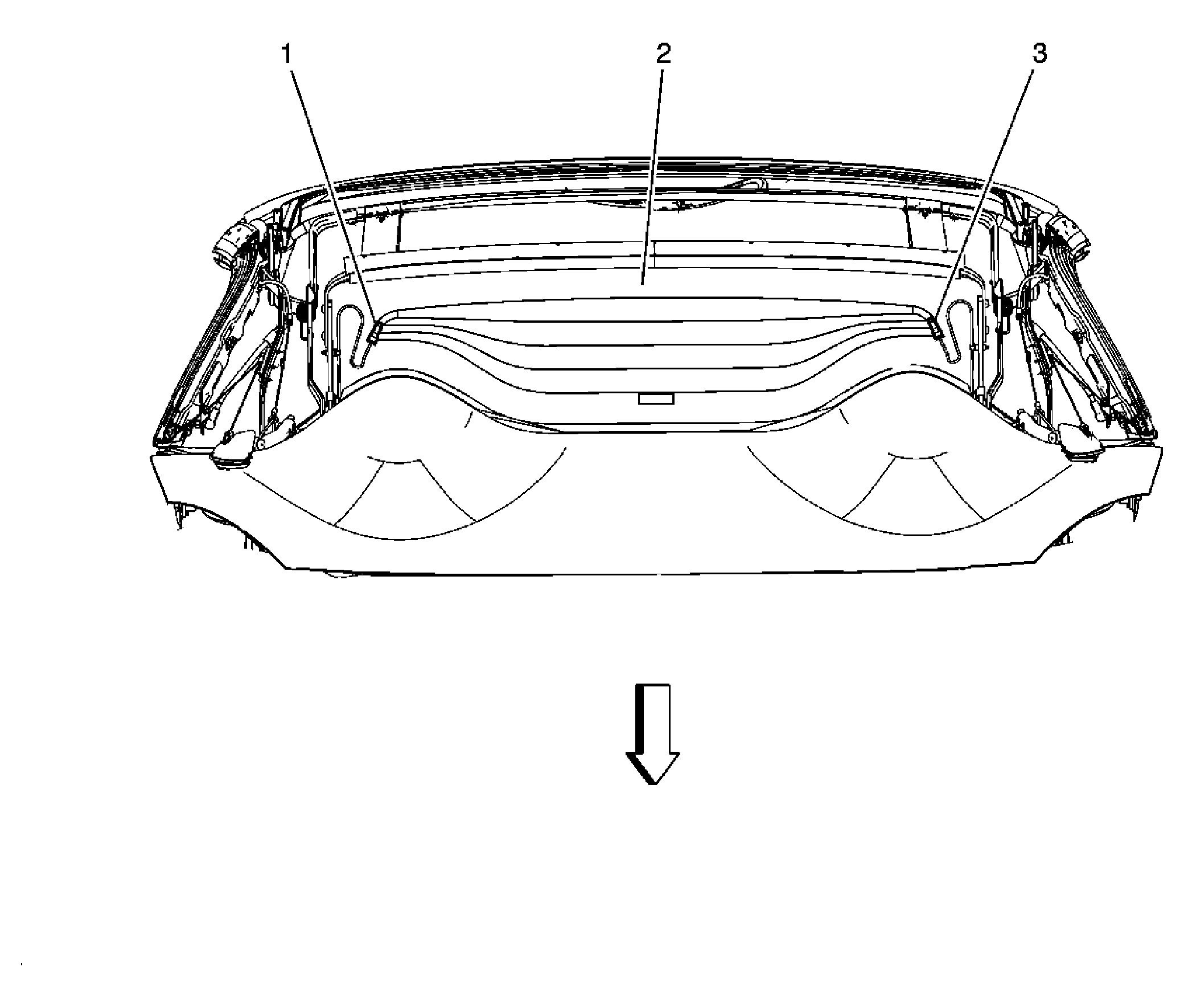

Fig 9: Behind Driver & Passenger Seats

Courtesy of GENERAL MOTORS CORP.

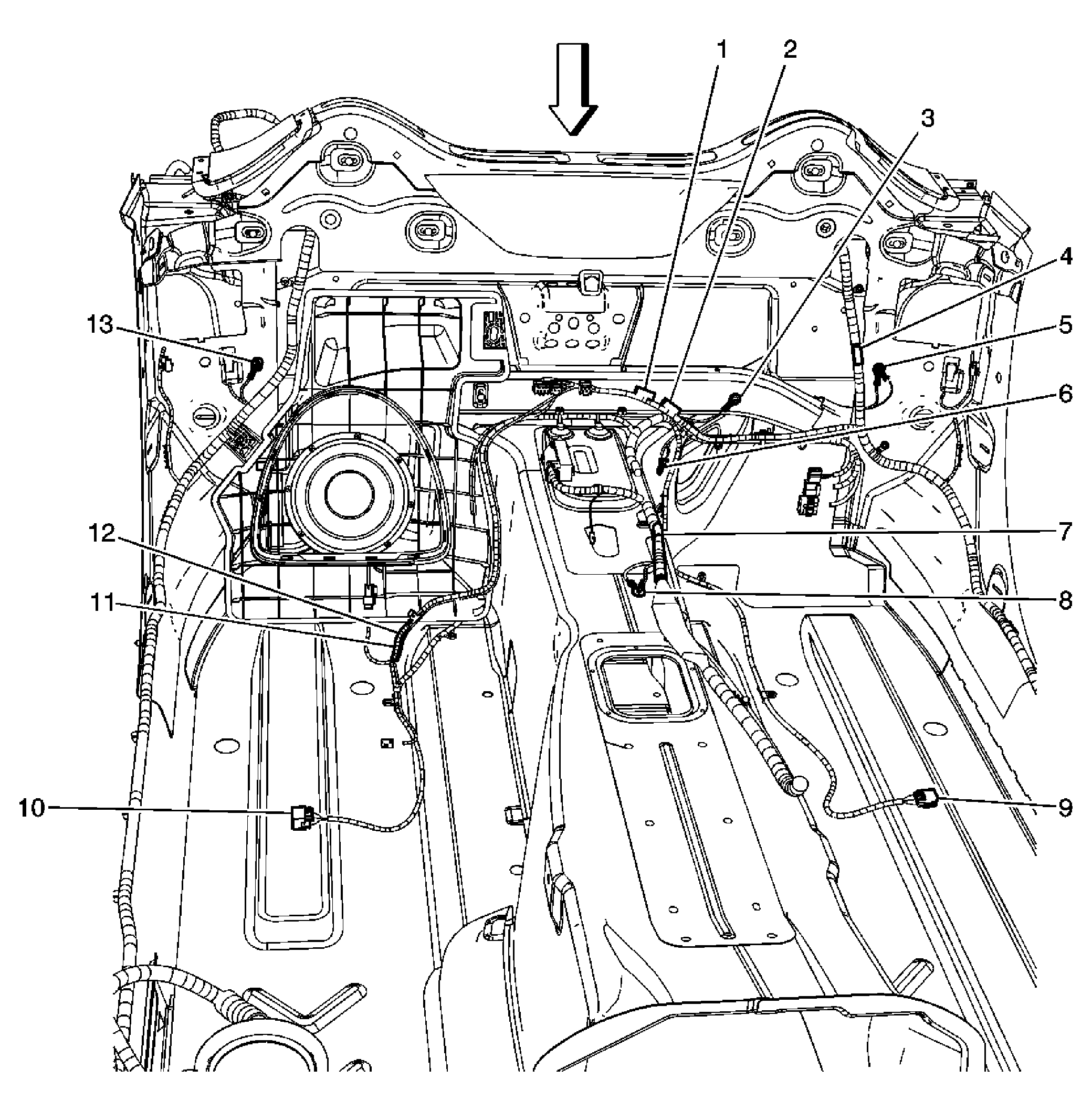

Fig 10: I/P Harness - Behind Driver & Passenger Seat Area

Courtesy of GENERAL MOTORS CORP.

Fig 11: Center of Rear Window

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Window Defogger Grid X1
2	Rear Window Defogger Grid X2
