Front of Vehicle/Engine Compartment Component Views

Fig 1: Front Fascia Lighting (Solstice)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headlamp - Left
2	Marker Lamp - Left Front
3	Park/Turn Lamp - Left Front
4	Fog Lamp - Left Front (T96)
5	Fog Lamp - Right Front (T96)
6	Park/Turn Lamp - Right Front
7	Marker Lamp - Right Front
8	Headlamp - Right

Fig 2: Front Fascia (Sky)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fog Lamp - Right Front
2	Park/Turn Signal Lamp - Right Front
3	Marker Lamp - Right Front
4	Park Lamp - Right Front
5	Headlamp - Low Beam - Right
6	Headlamp - High Beam - Right
7	Headlamp - High Beam - Left
8	Headlamp - Low Beam - Left
9	Park Lamp - Left Front
10	Marker Lamp - Left Front
11	Park/Turn Signal Lamp - Left Front
12	Fog Lamp - Left Front

Fig 3: Outside Air Temperature Sensor (Sky)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Outside Air Temperature Sensor
2	Front Fascia

Fig 4: Engine Compartment - LF

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Wheel Well - Left
2	Forward Lamp Harness
3	Hinge Bracket
4	Horn

Fig 5: Front Engine Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Front Fascia
2	Inflatable Restraint Front End Sensor - Right
3	Electronic Brake Control Module (EBCM)
4	Forward Lamp Harness
5	Inflatable Restraint Front End Sensor - Left

Fig 6: Above the Radiator

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Air Cleaner
2	Mass Air Flow (MAF) / Intake Air Temperature (IAT) Sensor

Fig 7: Engine Cooling Fan

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Front Fascia
2	Engine Cooling Fan
3	Engine Cooling Fan Connector

Fig 8: Front Engine Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Windshield Wiper Motor and Module
2	Coolant Surge Tank
3	Engine Control Module (ECM) Connectors
4	Engine Control Module (ECM)
5	Transmission Control Module (TCM) (M82)
6	Transmission Control Module (TCM) Connector (M82)
7	Windshield Washer Fluid Pump
8	Windshield Washer Fluid Container
9	Engine Coolant Level Switch
10	Coolant Surge Tank
11	Brake Fluid Level Switch
12	Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor

Fig 9: Forward Lamp (Solstice)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Forward Lamp Harness to Headlamp - Right
2	G102
3	J115
4	Wheel Speed Sensor (WSS) - Right Front
5	X102
6	J115
7	J105
8	J129
9	Fuse Block - Underhood
10	X120
11	J103
12	X103
13	J130
14	J131
15	J109
16	Electronic Brake Control Module (EBCM)
17	J101
18	Wheel Speed Sensor (WSS) - Left Front
19	G101
20	G105
21	Headlamp Harness

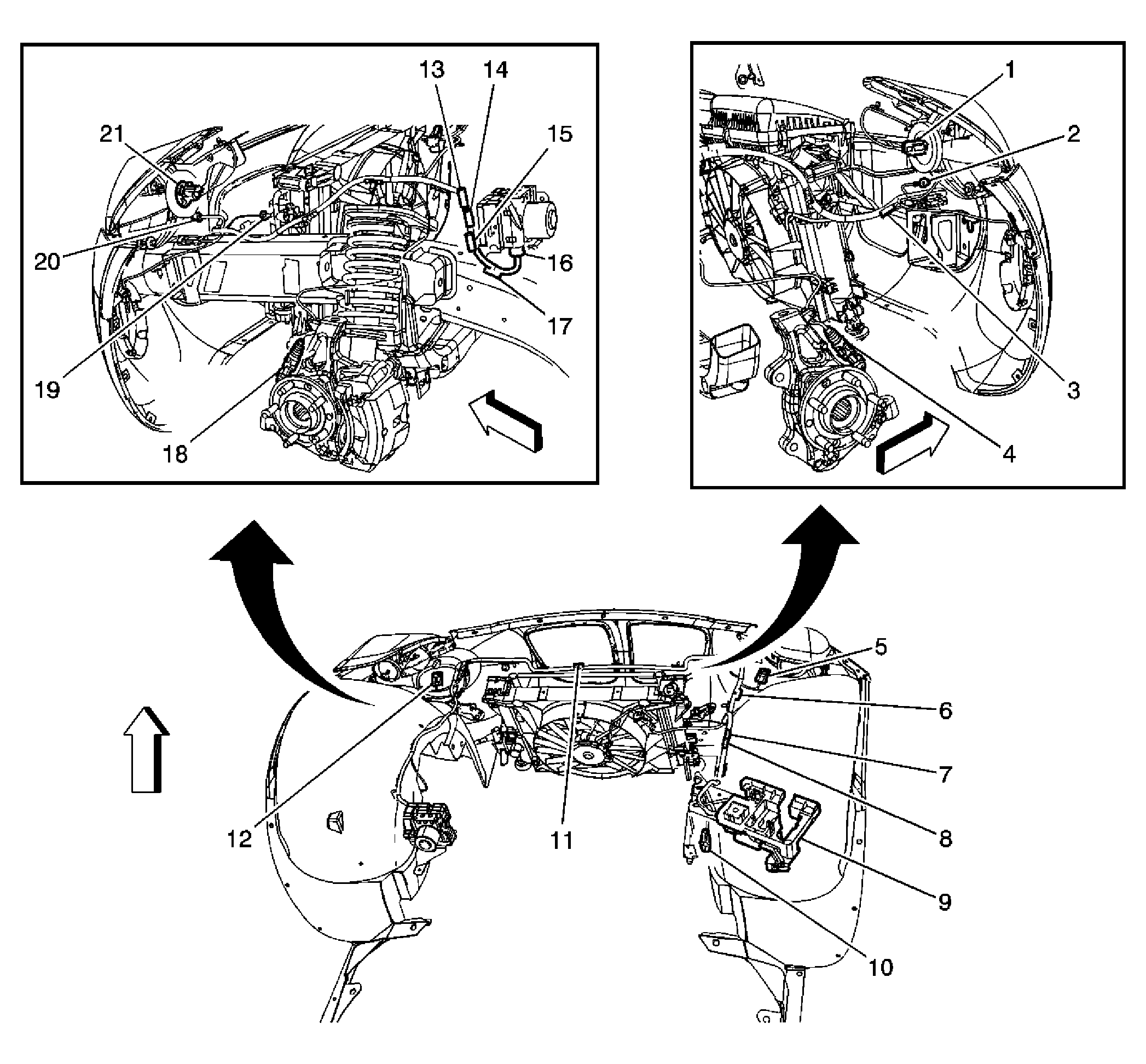

Fig 10: Forward Lamp (Sky)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	X111
2	G102
3	J115
4	Wheel Speed Sensor (WSS) - Right Front
5	X102
6	J115
7	J105
8	J129
9	Fuse Block - Underhood
10	X120
11	J103
12	X103
13	J130
14	J131
15	J109
16	Electronic Brake Control Module (EBCM)
17	J101
18	Wheel Speed Sensor (WSS) - Left Front
19	G101
20	G105
21	X110

Fig 11: Fuse Block-Underhood Connectors

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuse Block - Underhood X3
2	Fuse Block - Underhood X4
3	Fuse Block - Underhood Cable End Connector
4	Fuse Block - Underhood X1
5	Fuse Block - Underhood X2
6	G106
7	Wheel Well - Right Side
8	Battery Cable - Negative
9	Battery
10	Battery Cable - Positive

Fig 12: Front Engine Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G101
2	G105
3	G102

Fig 13: Front Engine Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Engine Harness
2	A/C Refrigerant Pressure Sensor (C60)
3	A/C Compressor Clutch (C60)
4	Generator

Fig 14: Right Side of Engine Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Engine Harness
2	G103
3	G104
4	G106
5	Battery Cable - Negative
6	Wheel Well - Right
7	Fuse Block - Underhood Bracket

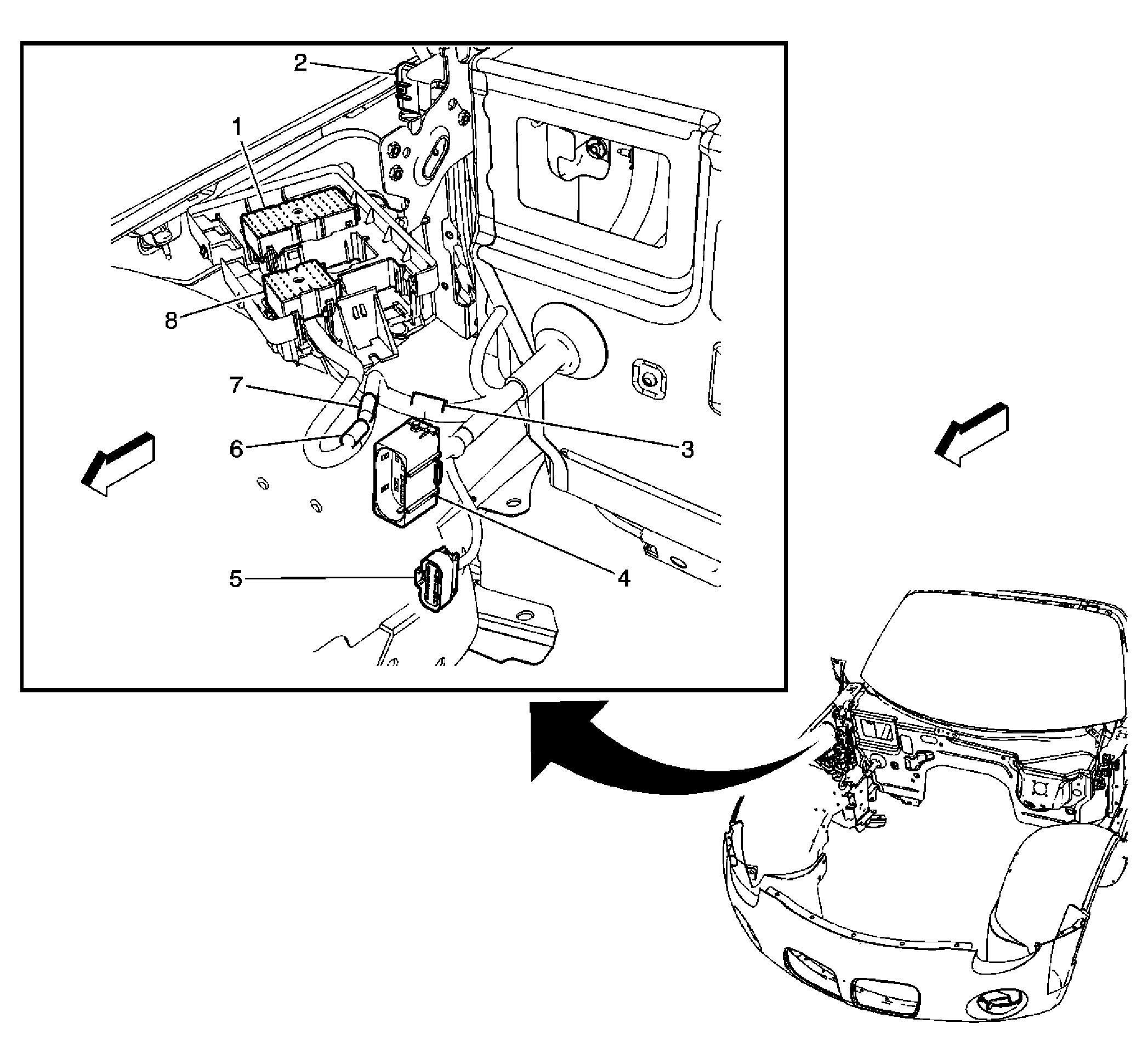

Fig 15: I/P Harness - Engine Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuse Block - Underhood X2
2	X600
3	J135
4	X100
5	X120
6	J134
7	J136
8	Fuse Block - Underhood X4

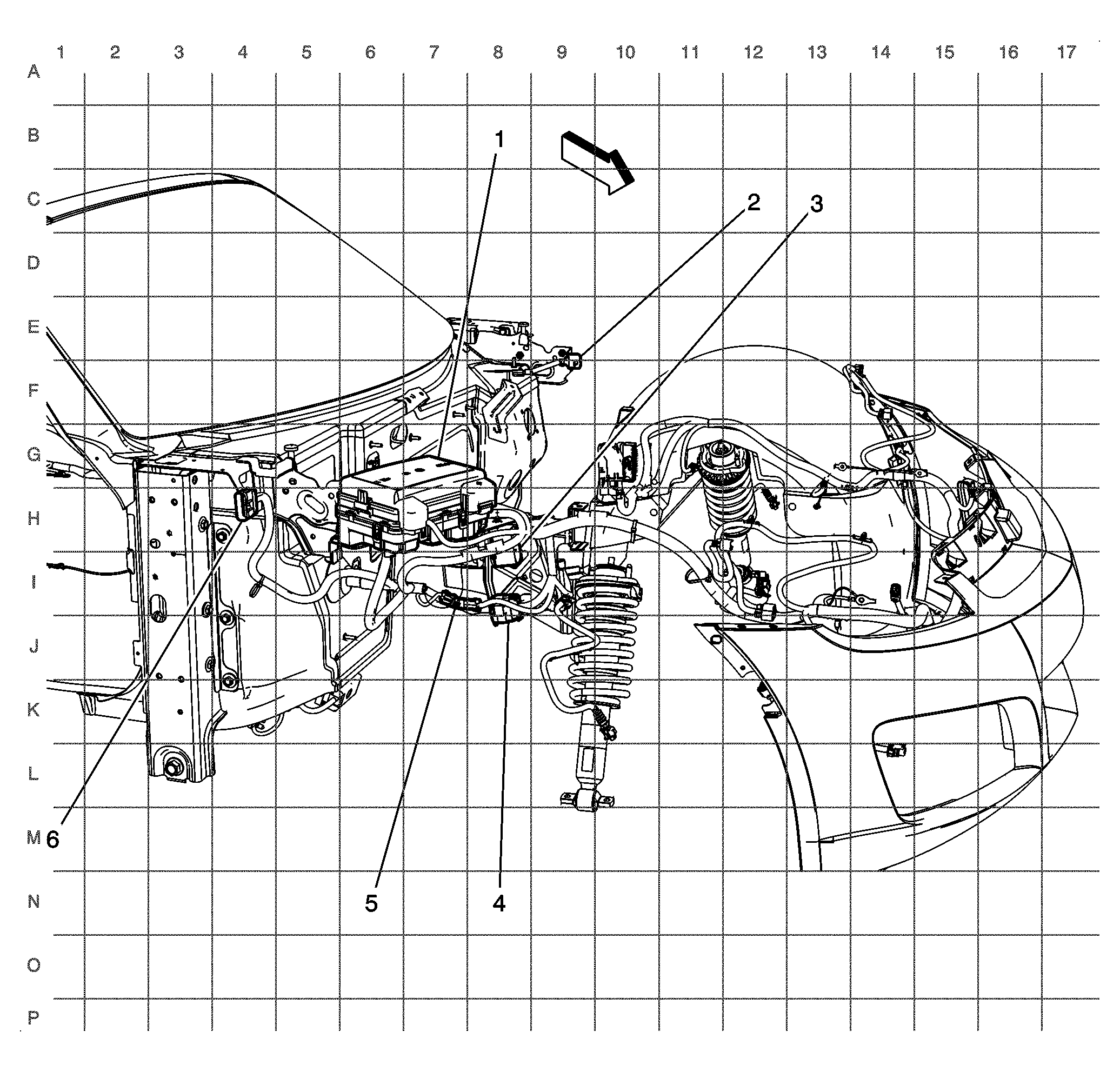

Fig 16: X100, X120 and X122 (Sky)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuse Block-Underhood
2	X500
3	X100
4	X120
5	X122
6	X600
