Radio Volume Compensator Interior Noise Microphone Replacement
WARNING: This page is about a different car, the 2008 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

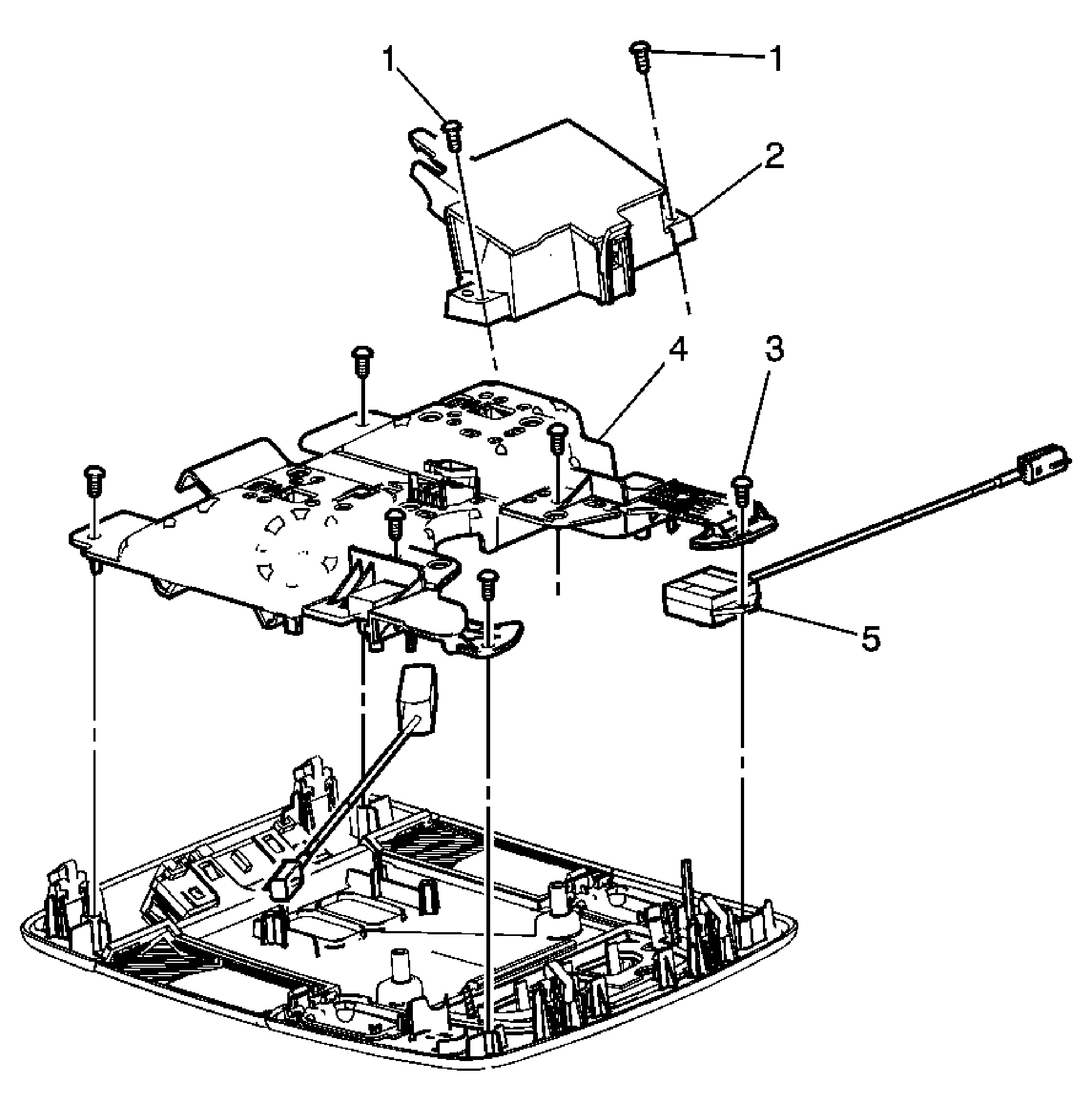

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the overhead console. Refer to Roof Console Replacement . |
|
| 1 | Garage Door Opener Transmitter Screw (Qty: 2)
NOTE:
Refer to Fastener Notice
.
Tighten: 2 N.m (18 lb in) |
| 2 | Garage Door Opener Transmitter Assembly |
| 3 | Overhead Console Light Housing Screw (Qty: 6) Tighten: 2 N.m (18 lb in) |
| 4 | Overhead Console Light Housing Assembly |
| 5 | Radio Volume Compensation Microphone Tip: Pull the microphone away from the housing assembly to remove. |
