Radio Rear Speaker Replacement

WARNING: This page is about a different car, the 2008 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

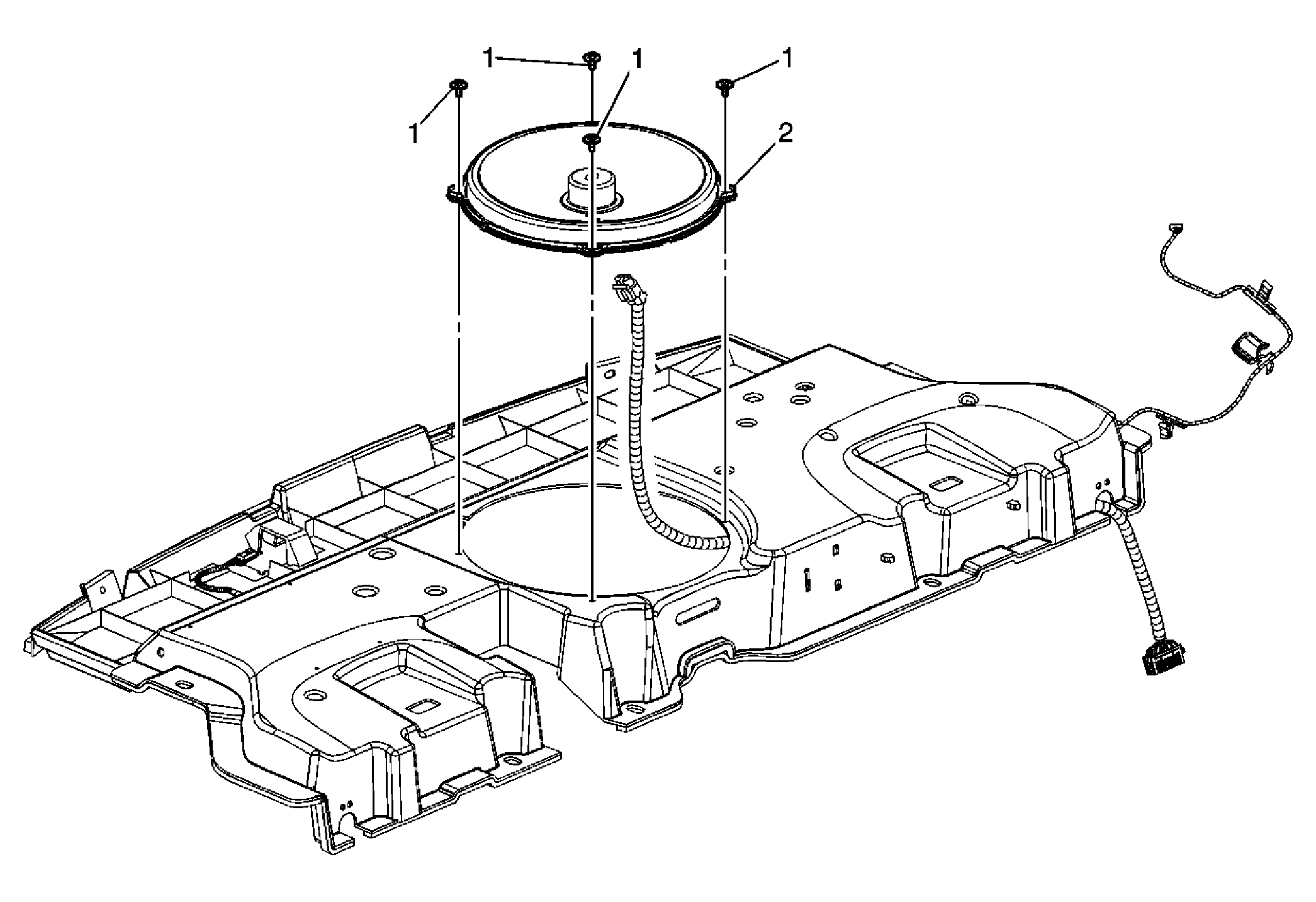

Fig 1: View Of Rear Speaker & Bolts

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the rear window shelf trim panel. Refer to Rear Window Shelf Trim Panel Replacement .
1	Radio Rear Speaker Bolt/Screw (Qty: 4) NOTE: Refer to Fastener Notice . Tip: Disconnect the electrical connector. Tighten: 2.5 N.m (22 lb in)
2	Radio Rear Speaker Assembly
