Installation Procedure
WARNING: This page is about a different car, the 2008 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.
- Attach the wire or string used in the removal procedure to the cable being installed in the vehicle.

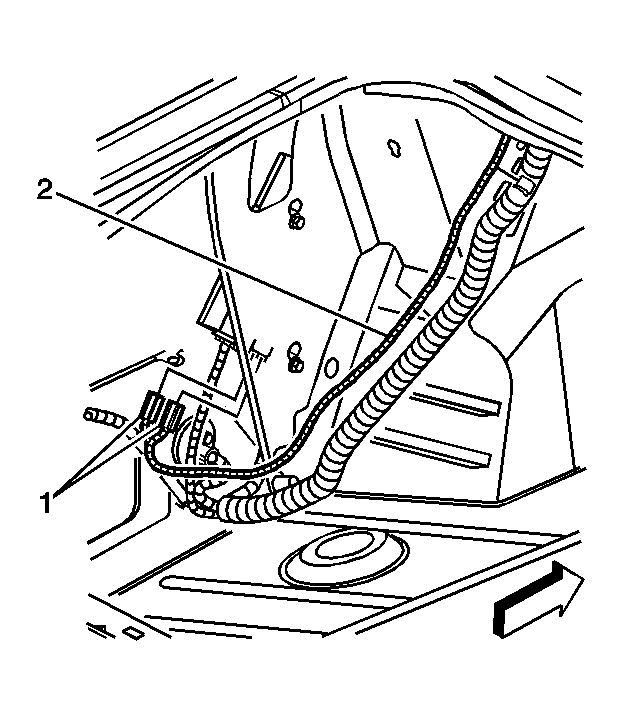

- Carefully pull the antenna cable (2) past the rear shelf into the passenger compartment.
- Remove the wire or string from the antenna cable.
- Connect the antenna cable connection (1) to the digital receiver.
- Attach the antenna cable (2) to the hold-down clips in the rear compartment.
- Install the trim panel to the left rear compartment. Refer to Rear Compartment Side Trim Replacement - Left Side .
- Connect the antenna connectors (1) to the digital radio antenna.
- Wrap the connector with foam tape (1).
- Install the antenna cable connection (1) above the AM/FM antenna module.
- Attach the antenna cable to the locating clips at the roof (2) and to the third pillar (3).
- Align the headliner to the roof panel.
- Install the rear assist handles. Refer to Assist Handle Replacement .
- Install the upper rear quarter trim panel. Refer to Rear Compartment Side Trim Replacement - Left Side .
