Digital Radio Receiver Replacement (Coupe)

WARNING: This page is about a different car, the 2010 Saturn Sky and 2010 Pontiac Solstice. However, it is still accessible from the selected car via links, so may be relevant.

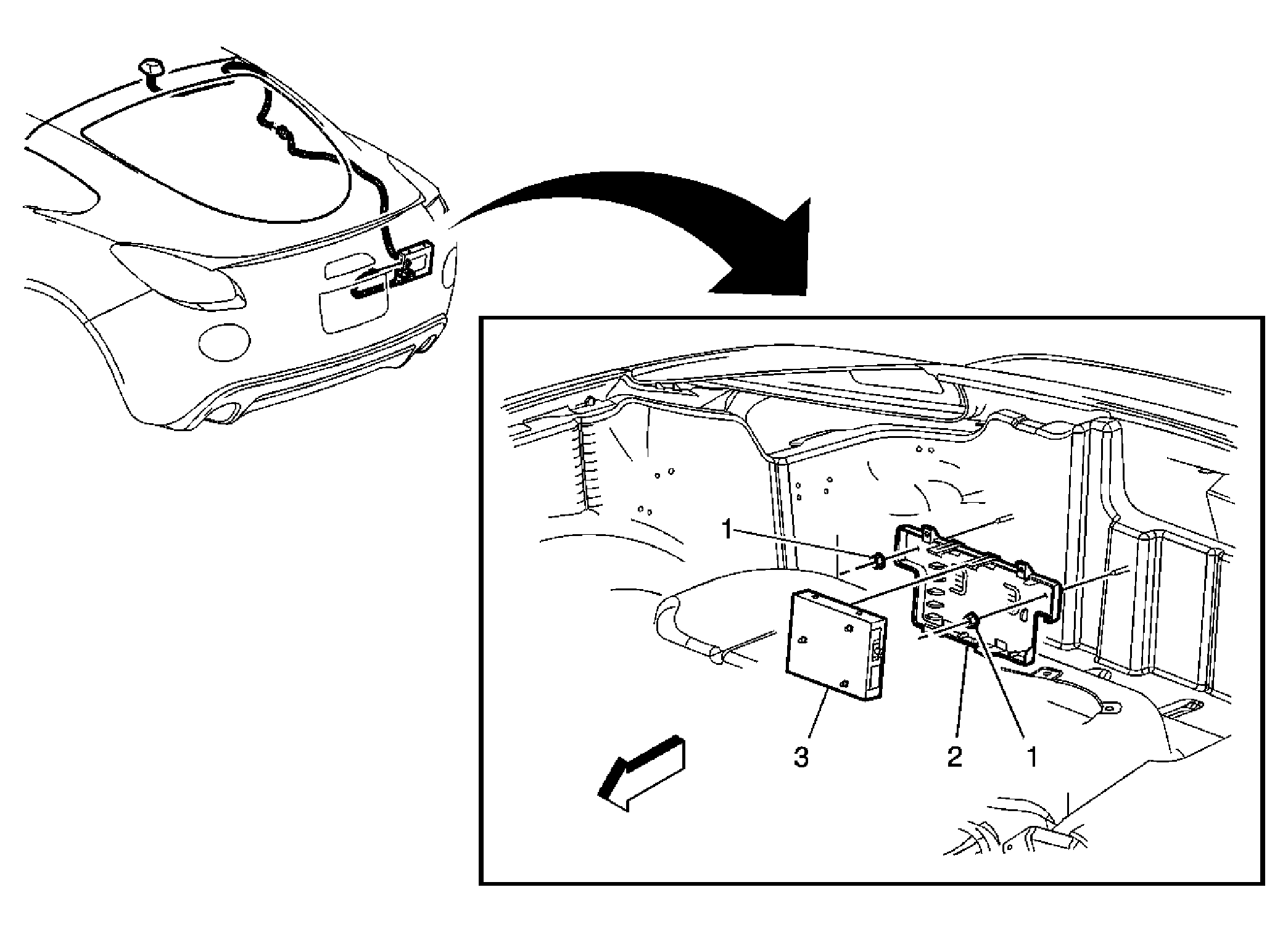

Fig 1: Identifying Digital Radio Receiver

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the rear floor panel outer carpet. Refer to Rear Floor Panel Outer Carpet Replacement (Coupe) .
1	Digital Radio Receiver Bracket Nuts (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: 10 N.m (89 lb in)
2	Digital Radio Receiver Bracket Assembly
3	Digital Radio Receiver Assembly Procedure Disconnect electrical connector. Program the digital radio receiver after replacement. Refer to Control Module References .
