Digital Radio Antenna Cable Replacement (Convertible)

WARNING: This page is about a different car, the 2010 Saturn Sky and 2010 Pontiac Solstice. However, it is still accessible from the selected car via links, so may be relevant.

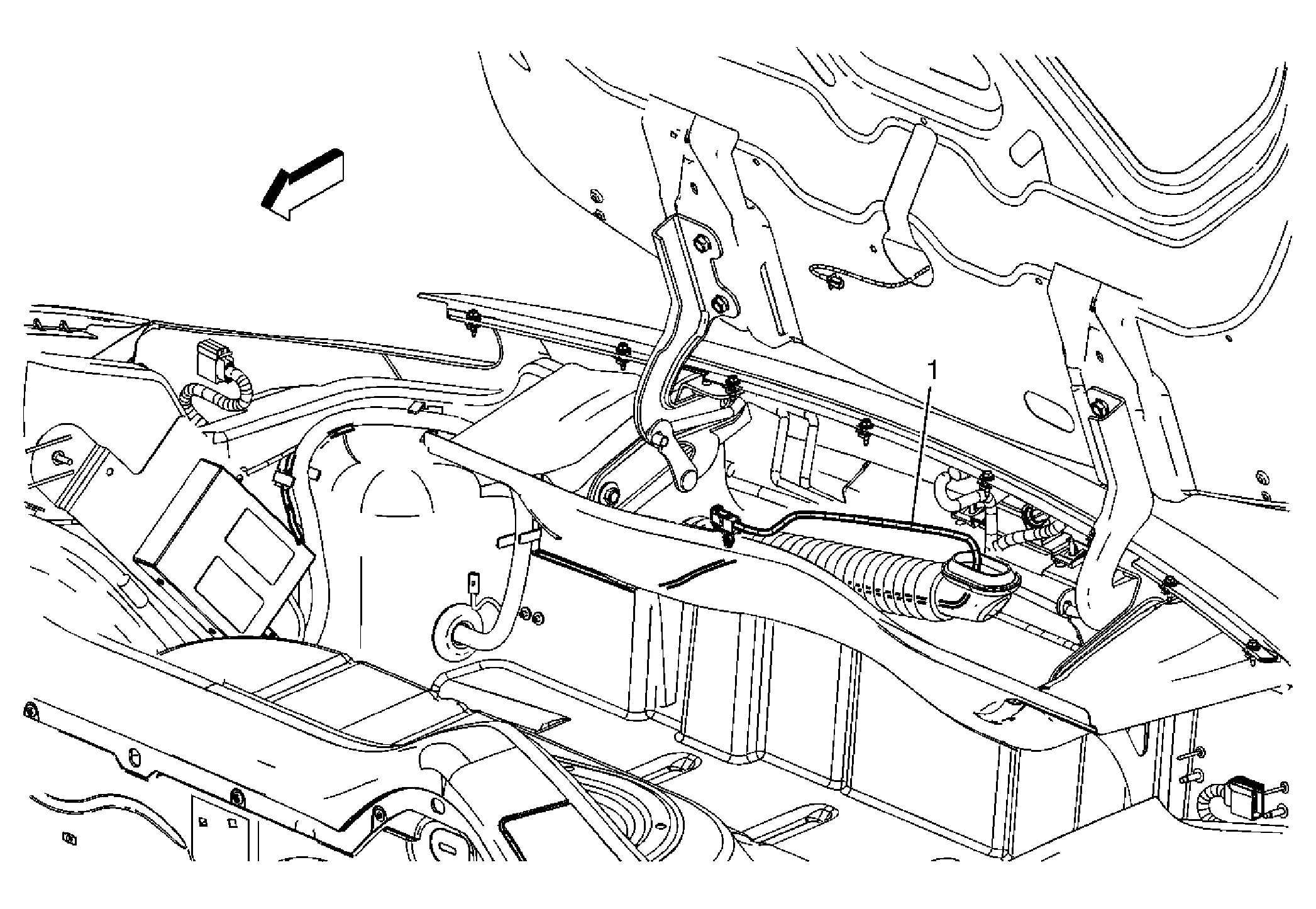

Fig 1: Identifying Digital Radio Antenna Cable
GM1594092Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Remove the rear compartment trim. Refer to Rear Compartment Trim Panel Replacement (Convertible) .
1 Digital Radio Antenna Cable Assembly
Tip:
  1. Disconnect the electrical connectors.
  2. Remove the cable conduit, to the rear compartment lid, in order to access the cable connection at the XM radio antenna.
