Door Control Module Schematics

WARNING: This page is about a different car, the 2008 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

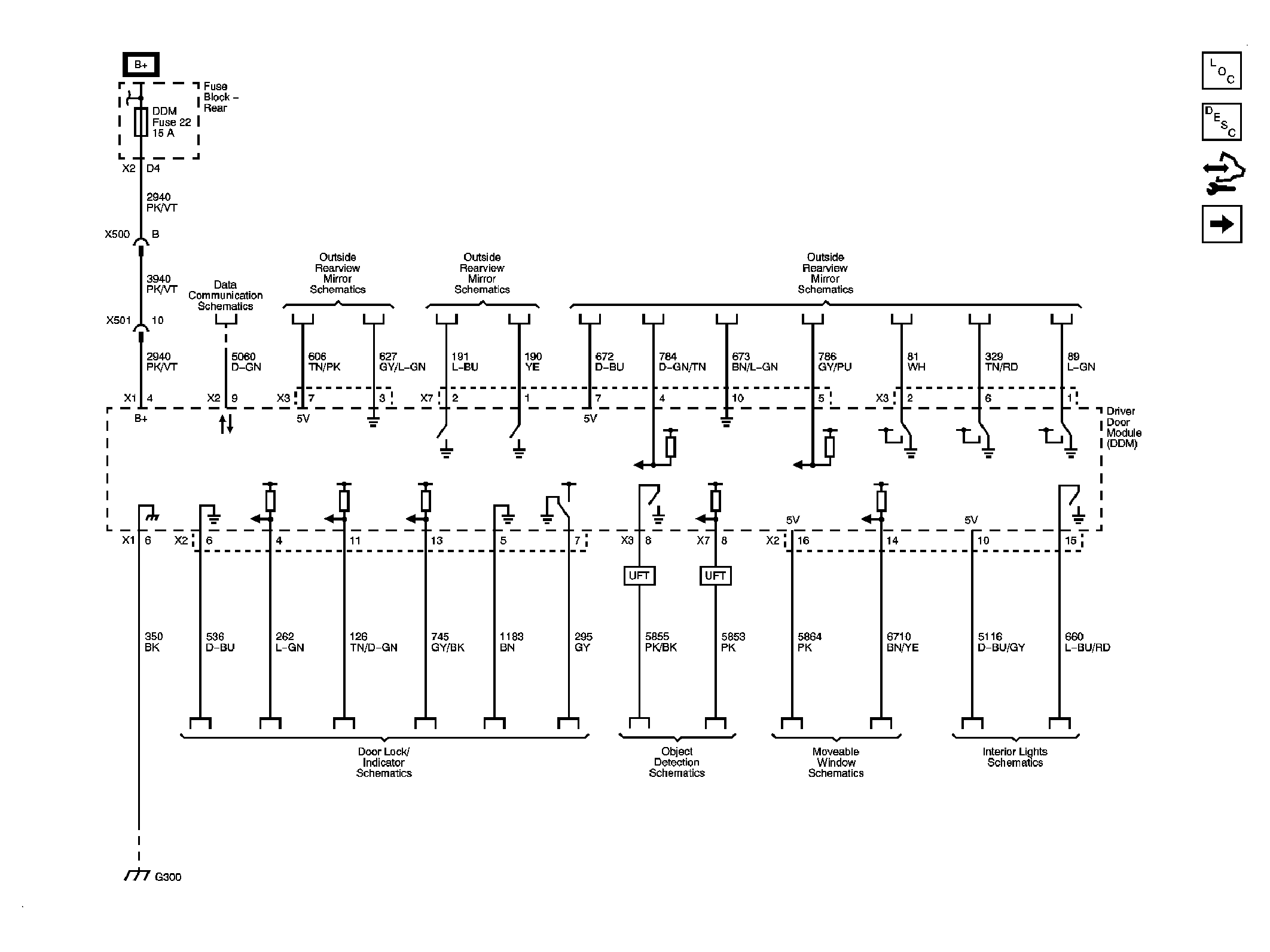

Fig 1: Driver Door Module Schematic (DDM)

Courtesy of GENERAL MOTORS CORP.

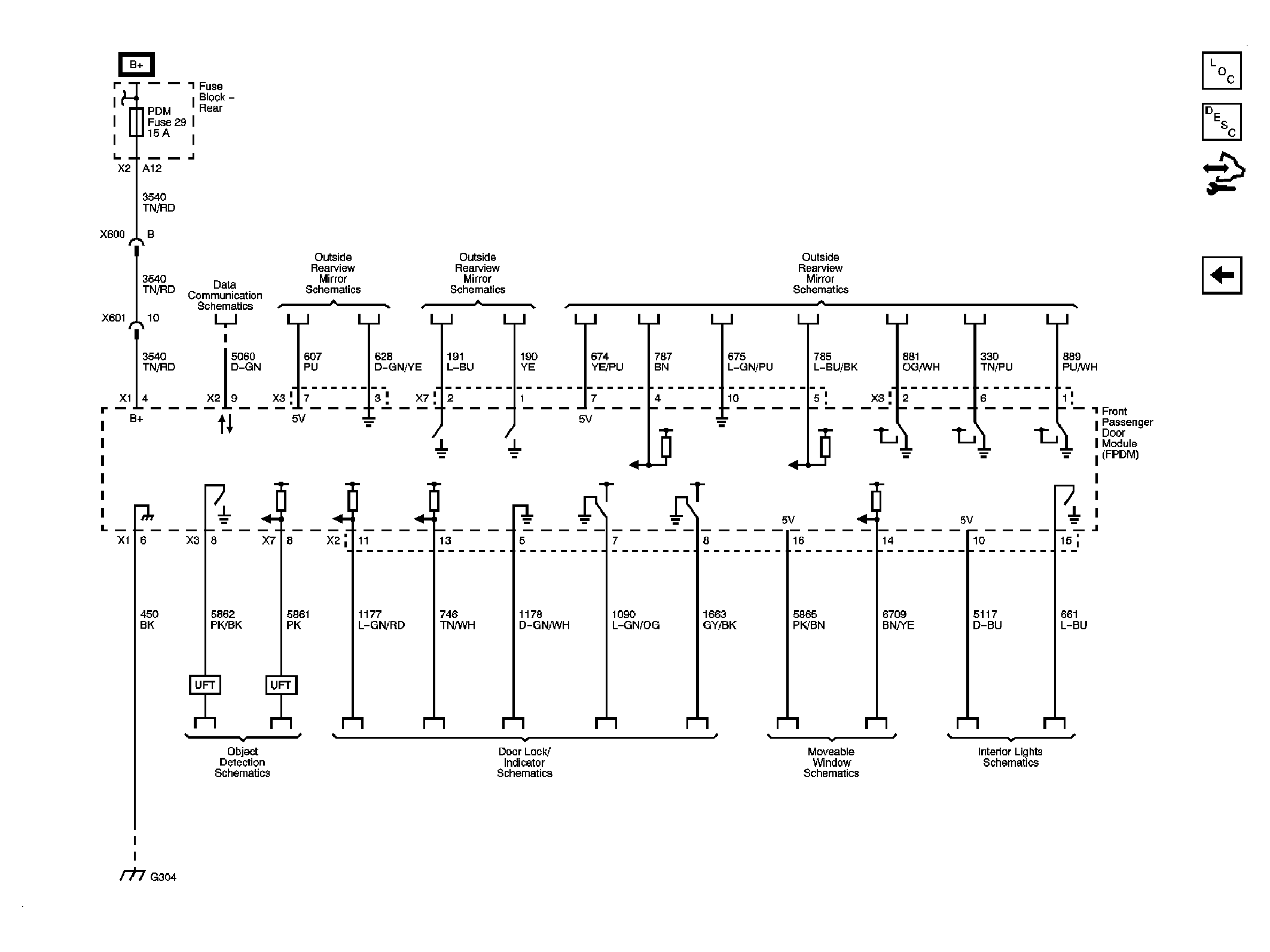

Fig 2: Passenger Door Module Schematic (PDM)

Courtesy of GENERAL MOTORS CORP.
