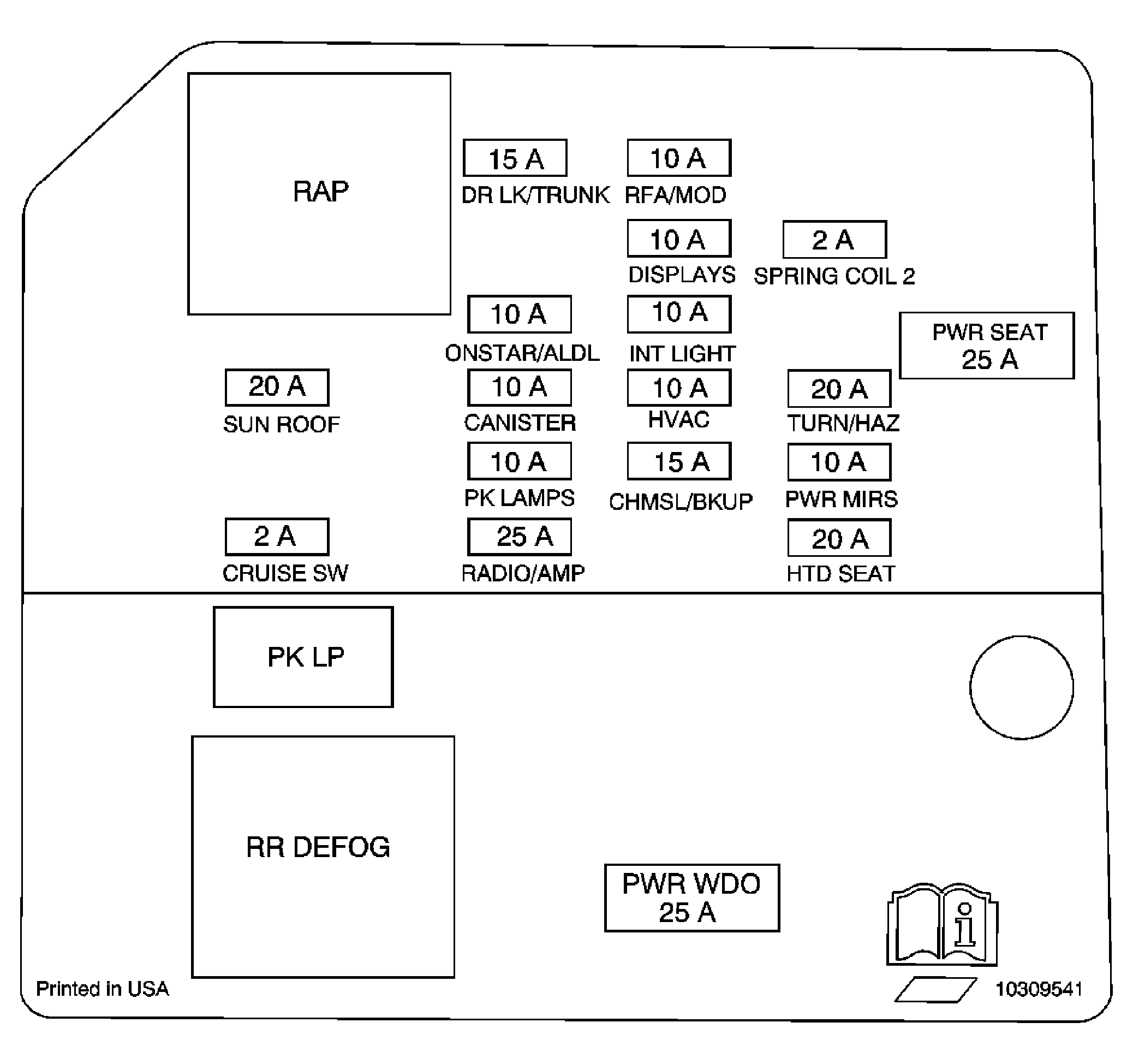

Fuse Block - Instrument Panel - Label
Fuse Block - Instrument Panel - Label Usage
| Fuse | Rating | Description |
|---|---|---|
| CANISTER Fuse | 10A | Evaporative Emission (EVAP) Canister Vent Solenoid |
| CHMSL/BKUP Fuse | 15A | Body Control Module (BCM) |
| CRUISE SW Fuse | 2A | Cruise Control Switch, TAP Shift Switch - Left (KB7) and TAP Shift Switch - Right (KB7) |
| DISPLAYS Fuse | 10A | Head Up Display (HUD) (UV6), Instrument Panel Cluster (IPC) and Driver Information Center (DIC) |
| DR LK/TRUNK Fuse | 15A | Body Control Module (BCM) |
| HTD SEAT Fuse | 20A | Heated Seat Relay - Driver (KA1) and Heated Seat Relay - Front Passenger (KA1) |
| HVAC Fuse | 10A | HVAC Control Module |
| INT LIGHT Fuse | 10A | Body Control Module (BCM) |
| ONSTAR/ALDL Fuse | 10A | Vehicle Communication Interface Module (VCIM) (UE1) and Data Link Connector (DLC) |
| PK LAMPS Fuse | 10A | PK LP Relay |
| PK LP Relay | - | Marker Lamp - Left Front, Marker Lamp - Right Front, Park/Turn Signal Lamp - Left Front, Park/Turn Signal Lamp - Right Front, Tail/Stop and Turn Signal Lamp - Left, Tail/Stop and Turn Signal Lamp - Right, Marker Lamp - Left Rear, Marker Lamp - Right Rear, Tail Lamp - Left, Tail Lamp - Right, License Lamp - Left and License Lamp - Right |
| PWR MIRS Fuse | 10A | Outside Rearview Mirror Switch |
| PWR SEAT Circuit Breaker | 25A | Seat Adjuster Switch - Driver (AG1) and Seat Lumbar Switch - Driver (AL9) |
| PWR WDO Circuit Breaker | 25A | Window Switch - Driver, and Window Switch - Front Passenger |
| RADIO/AMP Fuse | 25A | Radio and Audio Amplifier (U87) |
| RAP Relay | - | SUN ROOF Fuse and PWR WDO Circuit Breaker |
| RFA/MOD Fuse | 10A | Remote Control Door Lock Receiver (RCDLR) and Digital Radio Receiver (U2K) |
| RR DEFOG Relay | - | Rear Window Defogger Grid |
| SPRING COIL 2 Fuse | 2A | Steering Wheel Controls - Left (UK3), and Steering Wheel Controls - Right (UK3) |
| SUN ROOF Fuse | 20A | Sunroof Module (CF5) |
| TURN/HAZ Fuse | 20A | Body Control Module (BCM) |
