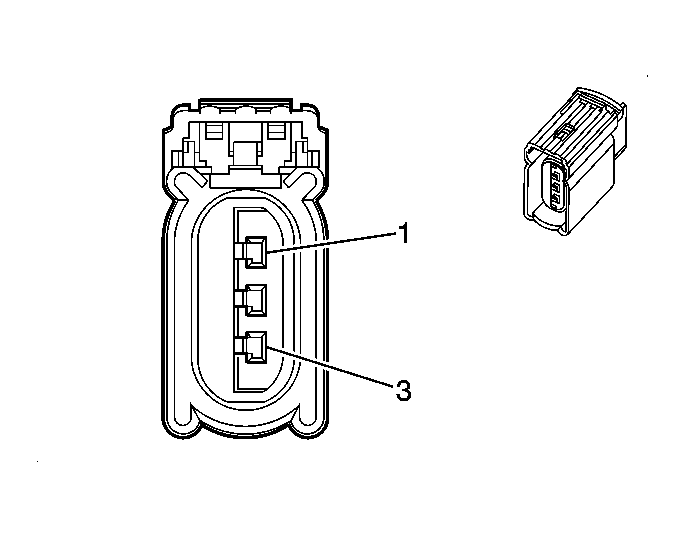

Park/Turn Signal Lamp - Right Front (LS4)
Courtesy of GENERAL MOTORS CORP. Park/Turn Signal Lamp - Right Front (LS4)
| Pin |
Wire Color |
Circuit No. |
Function |
| 1 |
0.5 L-BU/WH |
1314 |
Right Front Turn Signal Lamp Supply Voltage |
| 2 |
0.5 BN |
9 |
Park Lamp Supply Voltage |
| 3 |
0.5 BK |
1250 |
Ground |
Connector Part Information
- OEM:15466016
- Service: See Catalog
- Description: 3-Way F Receptacle 1.5, Sealed (BK)
|
Terminal Part Information
- Terminal/Tray: See Terminal Repair Kit
- Core/Insulation Crimp: See Terminal Repair Kit
- Release Tool/Test Probe: See Terminal Repair Kit
|
