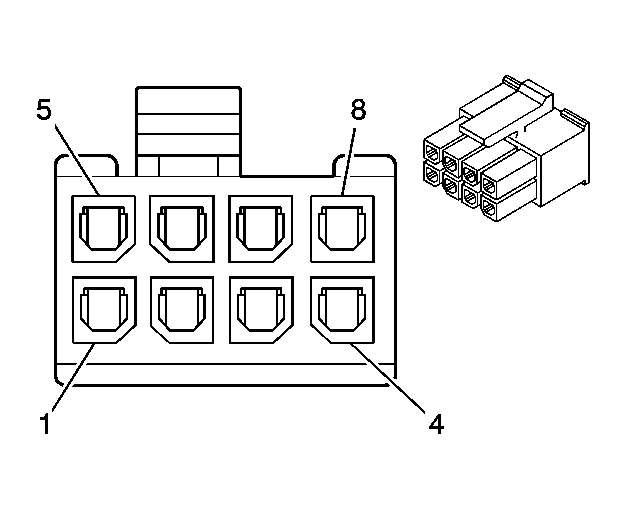

Instrument Panel Cluster (IPC)
Courtesy of GENERAL MOTORS CORP. Instrument Panel Cluster (IPC)
| Pin |
Wire Color |
Circuit No. |
Function |
| 1 |
0.35 BK/WH |
1551 |
Ground |
| 2 |
0.35 TN/WH |
33 |
Brake Warning Indicator Control |
| 3 |
0.35 GY |
1036 |
IPC Class 2 Serial Data |
| 4 |
- |
- |
Not Used |
| 5 |
0.35 PU |
5234 |
Passenger Seat Belt Indicator |
| 6 |
- |
- |
Not Used |
| 7 |
0.35 BN/WH |
419 |
MIL Control |
| 8 |
0.35 OG |
5240 |
Battery Positive Voltage |
Connector Part Information
- OEM:15448102
- Service: 88987968
- Description: 8-Way F Molex Micro-Fit (3.0) (BK)
|
Terminal Part Information
- Pins: 1- 3, 5, 7, 8
- Terminal/Tray: See Terminal Repair Kit
- Core/Insulation Crimp: See Terminal Repair Kit
- Release Tool/Test Probe: See Terminal Repair Kit
|
