Air Temperature Sensor - Inside (CJ2)

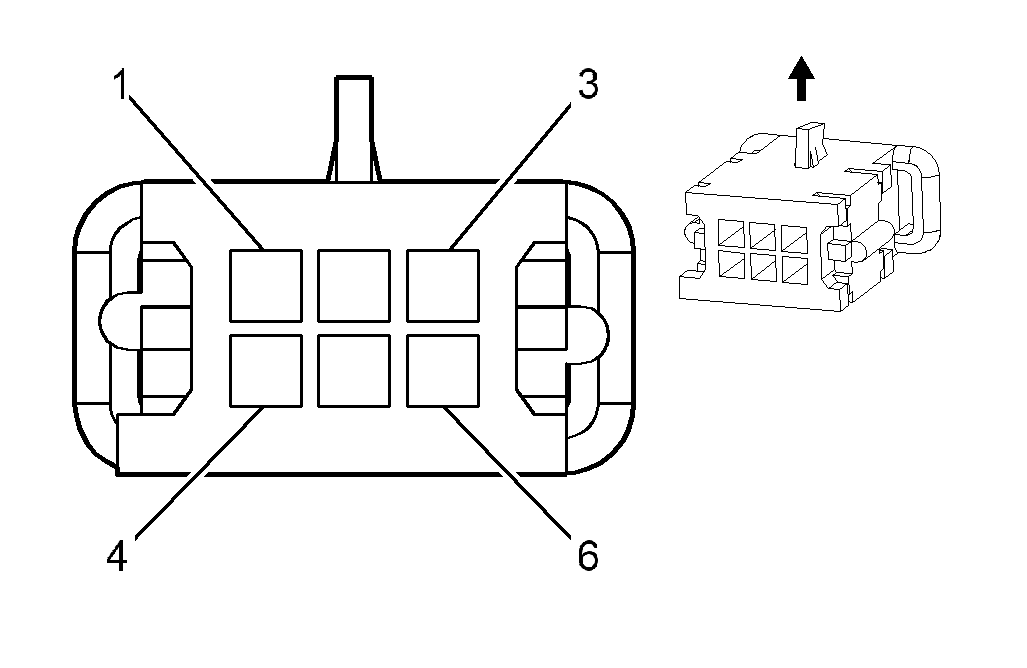

Courtesy of GENERAL MOTORS CORP. Air Temperature Sensor - Inside (CJ2)
| Pin |
Wire Color |
Circuit No. |
Function |
| 1 |
0.35 PK |
739 |
Ignition 1 Voltage |
| 2 |
- |
- |
Not Used |
| 3 |
0.35 BK/WH |
1551 |
Ground |
| 4 |
0.35 D-GN |
734 |
Inside Air Temperature Sensor Signal |
| 5 |
- |
- |
Not Used |
| 6 |
0.35 GY |
720 |
Low Reference |
Connector Part Information
- OEM: 10738109
- Service: 88953365
- Description: 6-Way F Cinch 0.635 Series (BK)
|
Terminal Part Information
- Pins: 1, 3, 4, 6
- Terminal/Tray: 928999-5/15
- Core/Insulation Crimp: H/H
- Release Tool/Test Probe: 12094429/J-35616-64B (L-BU)
|
