Installation Procedure

WARNING: This page is about a different car, the 2008 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

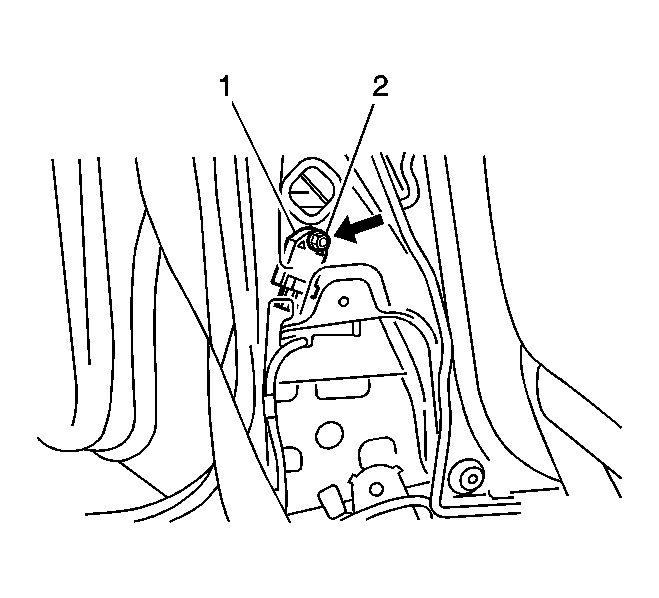

    Fig 1: View Of Side Impact Sensor
    GM1462757Courtesy of GENERAL MOTORS CORP.
  1. Install the side impact sensor (1).
    2. NOTE: Refer to FASTENER NOTICE .
  2. Install the side impact sensor fastener (2).

    Tighten:  Tighten the fastener to 9 N.m (80 lb in).

  3. Install the side impact sensor electrical connector.
  4. Install the front seat belt retractor. Refer to Seat Belt Retractor Pretensioner Replacement - Left Front  or Seat Belt Retractor Pretensioner Replacement - Right Front .
  5. Install the center pillar lower trim panel. Refer to Center Pillar Lower Trim Panel Replacement .
  6. Install the rear door sill plate. Refer to Door Sill Plate Replacement .
  7. Install the front door sill plate. Refer to Door Sill Plate Replacement .
  8. Enable the SIR system. Refer to SIR Disabling and Enabling .
