Installation Procedure

WARNING: This page is about a different car, the 2008 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: View Of Seat Position Sensor

Courtesy of GENERAL MOTORS CORP.

Install the seat position sensor (2).
Install the seat position sensor fastener (1).

Fig 2: View Of Feeler Gage Between Seat Position Sensor And Seat Rail

Courtesy of GENERAL MOTORS CORP.

Insert a 1 mm (0.039 in) feeler gage between the seat position sensor (1) and seat rail (2).

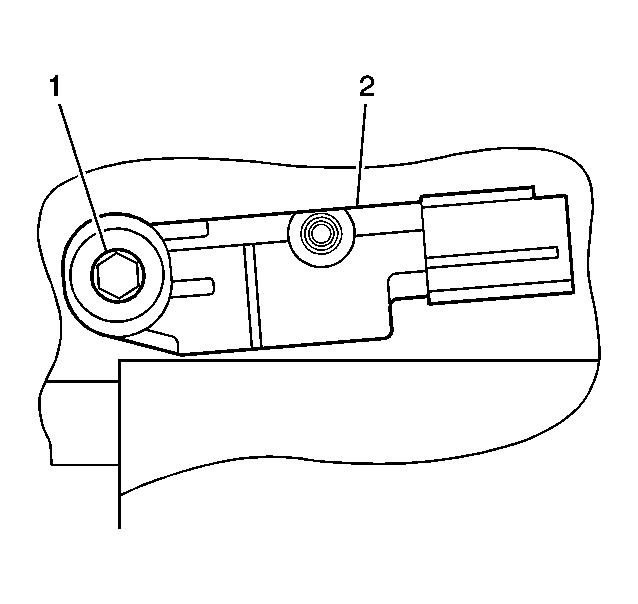

Fig 3: View Of Seat Position Sensor

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE .

Tighten the seat position sensor fastener (1).
Tighten: Tighten the seat position sensor fastener to 8 N.m (71 lb in).

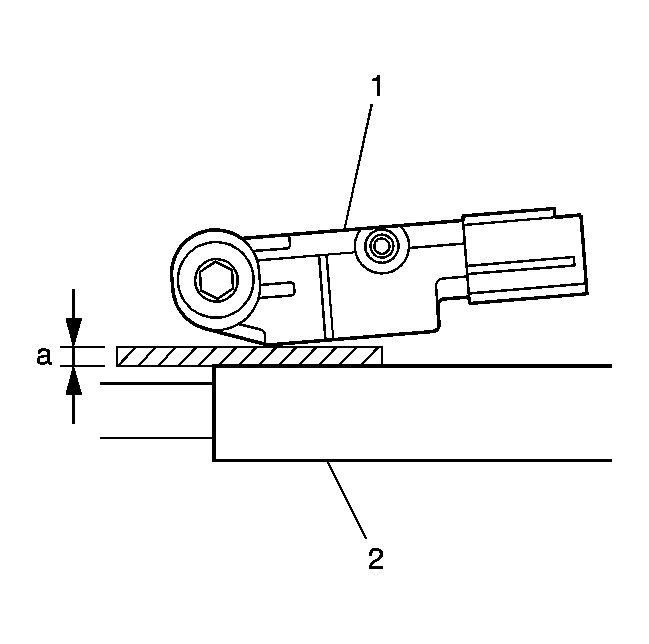

Fig 4: View Of Feeler Gage Between Seat Position Sensor And Seat Rail

Courtesy of GENERAL MOTORS CORP.

Check that the clearance between the seat position sensor (1) and seat rail (2) is 0.6 mm (0.023 in) to 2 mm (0.079 in).
Install the seat position sensor electrical connector.

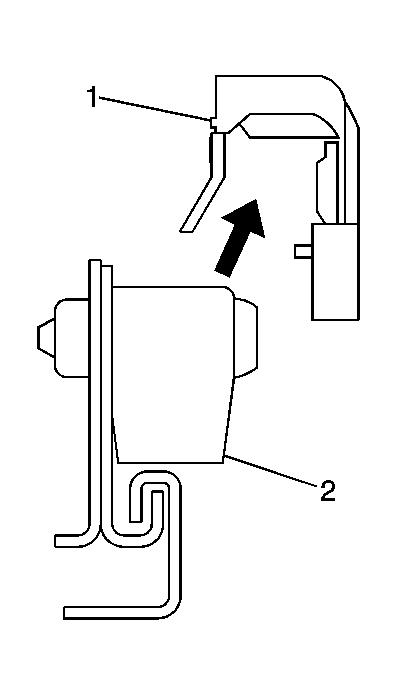

Fig 5: View Of Seat Position Sensor Cover

Courtesy of GENERAL MOTORS CORP.

Install the seat position sensor cover (1).
Install the LH front seat. Refer to Front Seat Replacement - Bucket .
