Door Control Module Schematics

WARNING: This page is about a different car, the 2008 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.

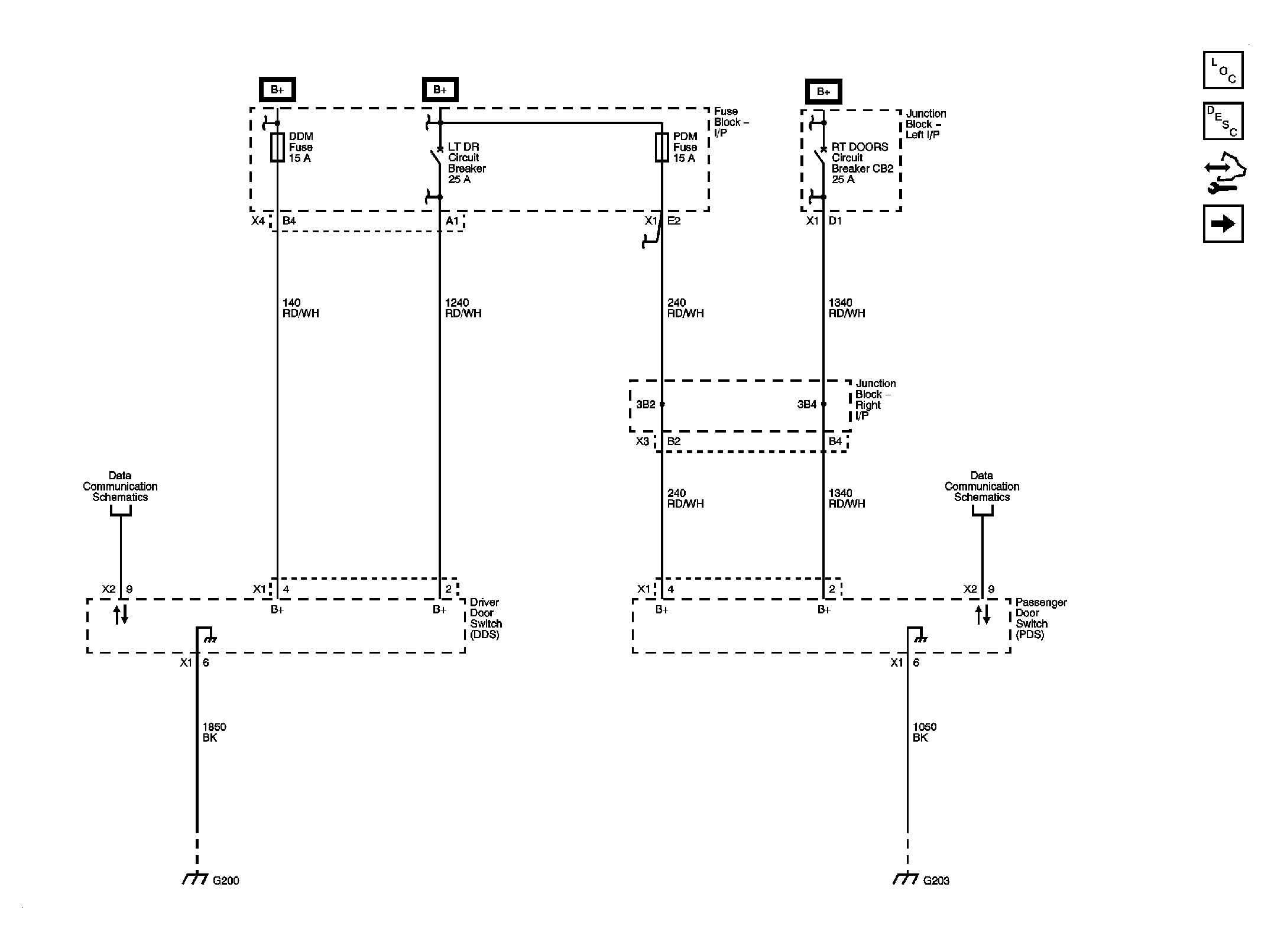

Fig 1: Power, Ground and Serial Data

Courtesy of GENERAL MOTORS CORP.

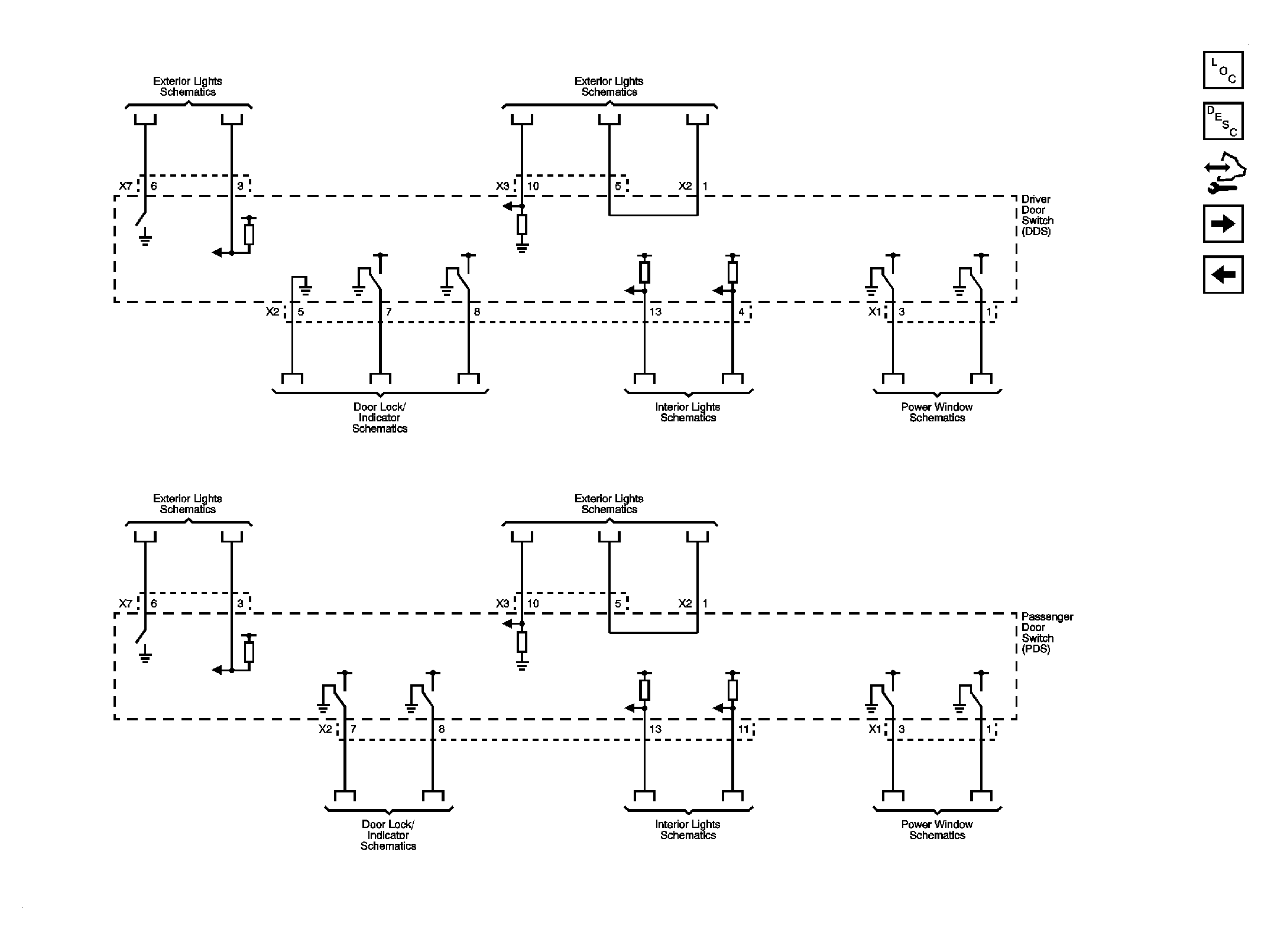

Fig 2: Exterior Lights, Interior Lights, Door Lock and Power Window References

Courtesy of GENERAL MOTORS CORP.

Fig 3: Inside and Outside Rearview Mirror References

Courtesy of GENERAL MOTORS CORP.

Fig 4: Seat References

Courtesy of GENERAL MOTORS CORP.
