Installation Procedure

WARNING: This page is about a different car, the 2008 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.

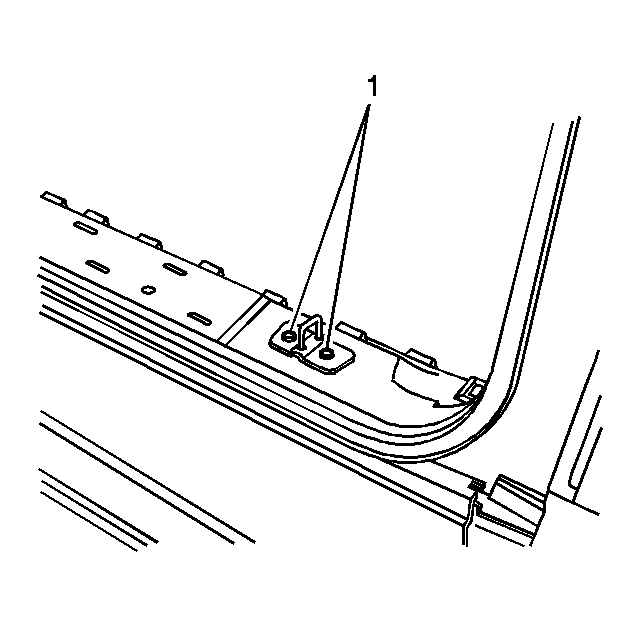

    Fig 1: Liftgate Lock Striker
    GM870174Courtesy of GENERAL MOTORS CORP.
  1. Position the striker, to the location marks.
    2. NOTE: Refer to Fastener Notice .
  2. Install the fasteners (1) to the striker.

    Tighten:  Tighten fasteners to 25 N.m (18 lb ft).

  3. Install the liftgate door sill plate. Refer to Liftgate Sill Trim Plate Replacement .
