Sunroof Switch Replacement

WARNING: This page is about a different car, the 2008 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.

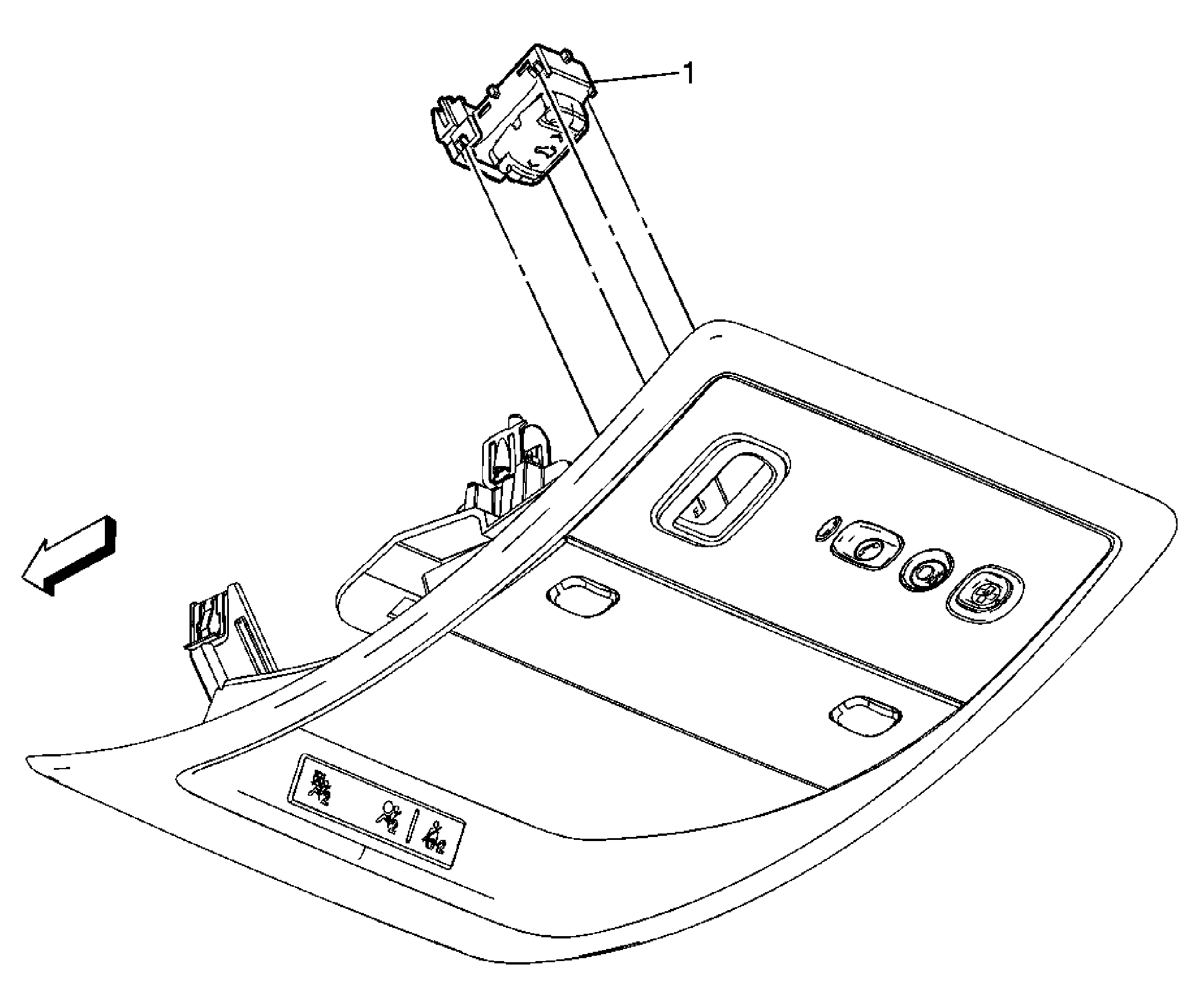

Fig 1: Sunroof Switch Component

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the roof console assembly. Refer to Roof Console Replacement .
1	Sunroof Switch Assembly Procedure Disconnect the electrical connection. Carefully use a flat bladed tool, and release the tabs retaining the switch to the console assembly.

Callout

Component Name

Preliminary Procedure:
Remove the roof console assembly. Refer to Roof Console Replacement .

Sunroof Switch Assembly

Procedure

Disconnect the electrical connection.
Carefully use a flat bladed tool, and release the tabs retaining the switch to the console assembly.
