Data Communication Schematics

WARNING: This page is about a different car, the 2007 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

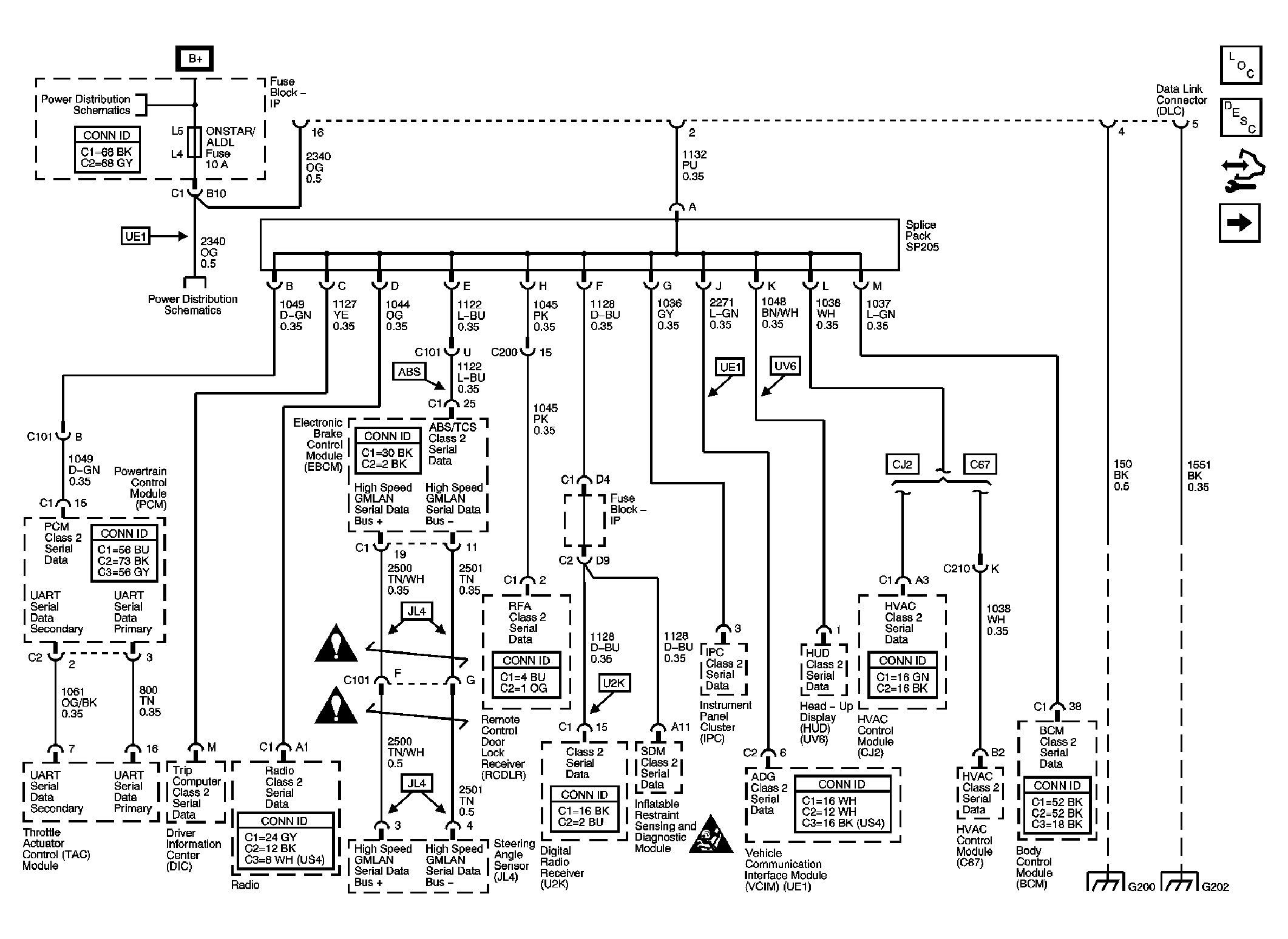

Fig 1: Data Communication Schematic (L26/L32)
GM1800091Courtesy of GENERAL MOTORS CORP.

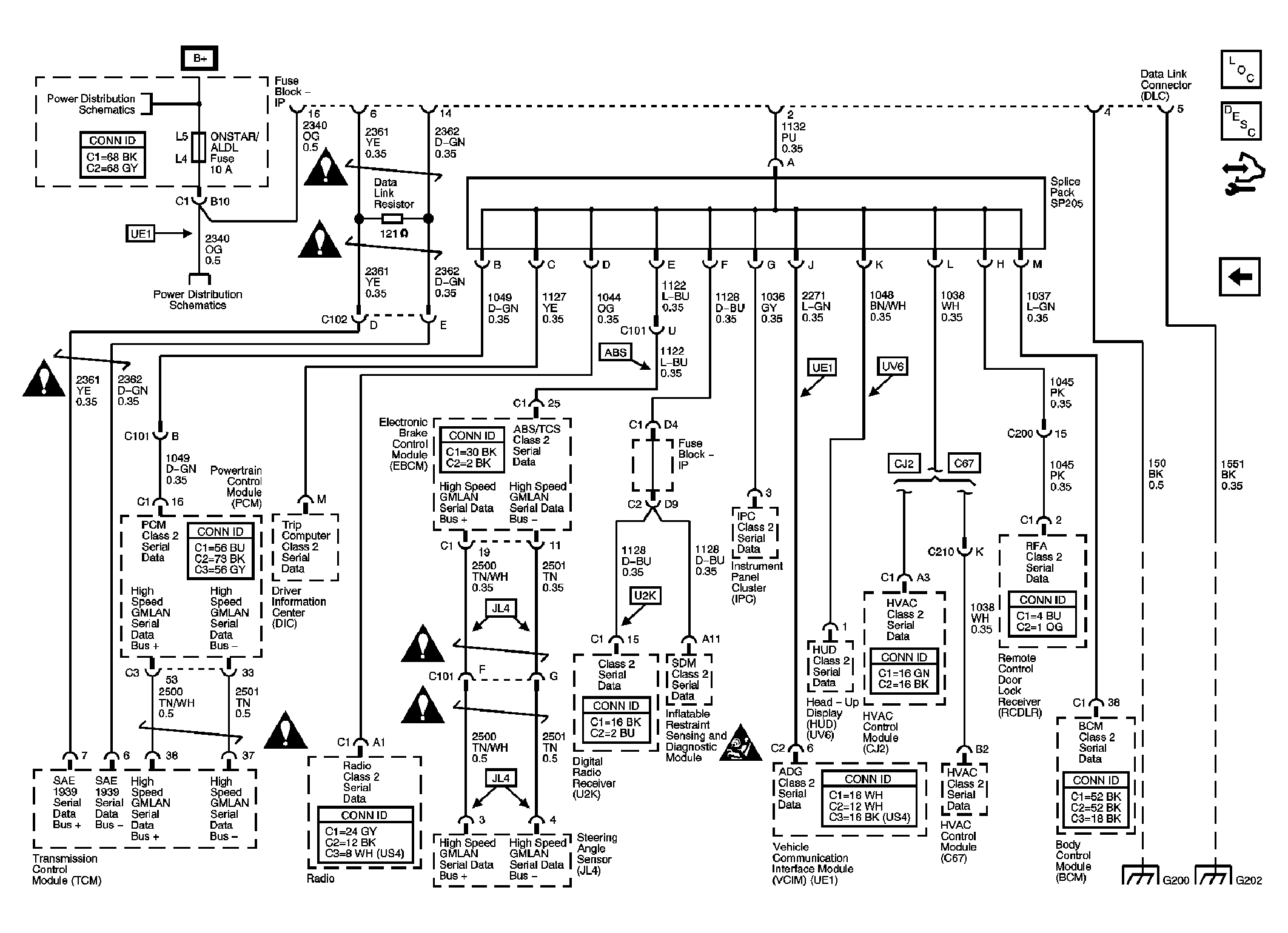

Fig 2: Data Communication Schematic (LS4)
GM1800098Courtesy of GENERAL MOTORS CORP.
