Installation Procedure

WARNING: This page is about a different car, the 2007 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

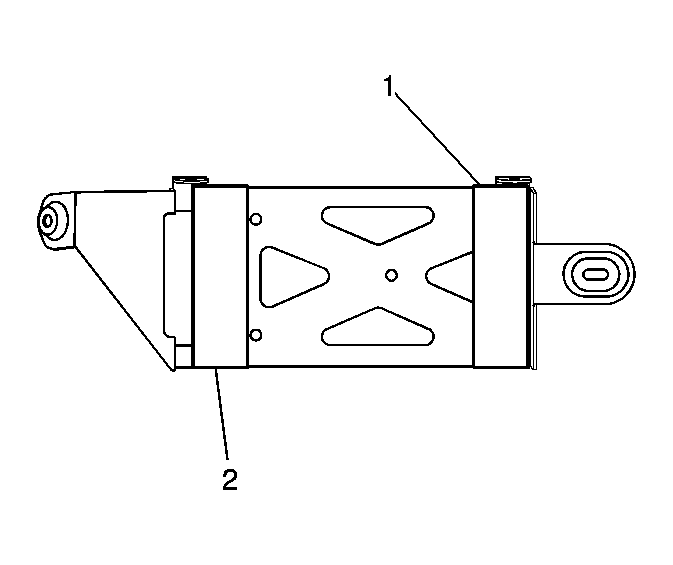

    Fig 1: View of Receiver Bracket
    GM1323756Courtesy of GENERAL MOTORS CORP.
  1. Inspect the receiver bracket for foam tape. If the bracket is not equipped, install foam tape as shown (1, 2) to prevent rattles.
    2. Fig 2: View Of Digital Radio Receiver & Receiver Bracket
    GM1203642Courtesy of GENERAL MOTORS CORP.
  2. Connect the antenna connector.
  3. Connect the electrical connector.
  4. Install the electrical connector CPA.
  5. Install the digital radio receiver to the receiver bracket.
    6. NOTE: Refer to Fastener Notice .
  6. Install the digital radio receiver nuts.

    Tighten:  Tighten the nuts to 5 N.m (44 lb in).

    7. Fig 3: View Of Rear Compartment Trim Panel & Receiver Bracket
    GM907783Courtesy of GENERAL MOTORS CORP.
  7. Align the receiver and bracket assembly to the studs.
  8. Install the receiver bracket nuts.

    Tighten:  Tighten the nuts to 4 N.m (35 lb in).

  9. Install the left rear compartment trim panel. Refer to Rear Compartment Side Trim Replacement - Left Side .
  10. Perform the setup procedure for the digital radio receiver. Refer to Digital Radio Receiver Setup .
