Radio Replacement

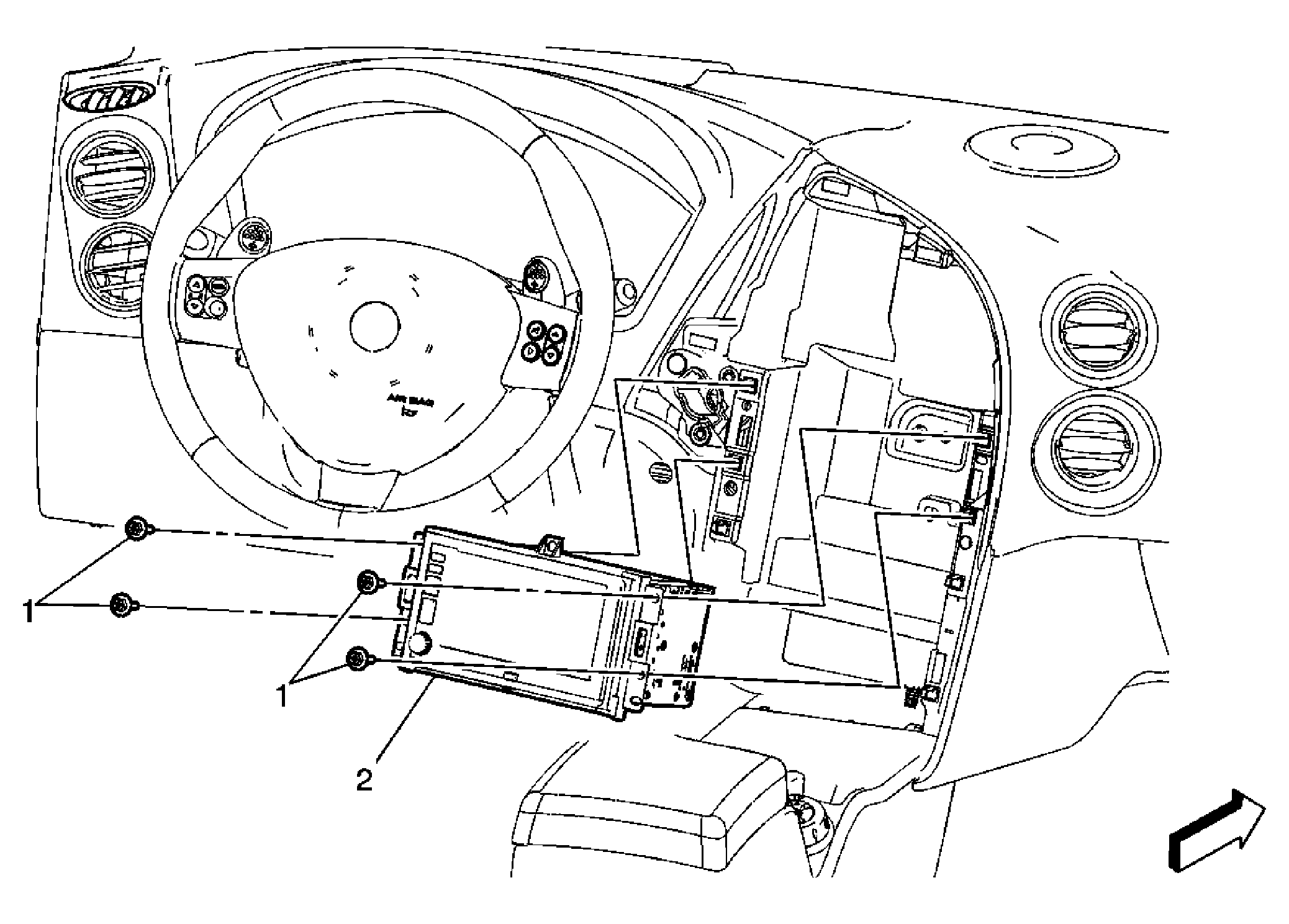

Fig 1: Radio Components

GM1911338

Courtesy of GENERAL MOTORS CORP.

Callout

Component Name

Preliminary Procedures

Remove the instrument panel accessory trim plate. Refer to Instrument Panel Accessory Trim Plate Replacement .
Remove the instrument panel center compartment. Refer to Instrument Panel Center Compartment Replacement
Remove the HVAC control assembly. Refer to Heater and Air Conditioning Control Replacement .

1

Radio Screw (Qty: 4)

NOTE: Refer to Fastener Notice .

Tighten: 2 N.m (18 lb in)

2

Radio Assembly

Procedure

Disconnect the electrical connector.
Disconnect the antenna cable.
Perform the radio set up procedure for new radios. Refer to Radio Setup .
