Ambient Air Temperature Sensor Replacement
WARNING: This page is about a different car, the 2010 Saturn Outlook, 2010 GMC Acadia, 2010 Chevrolet Traverse, and 2010 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the front compartment sight shield. Refer to Front Compartment Sight Shields Replacement (Acadia) or Front Compartment Sight Shields Replacement (Enclave) or Front Compartment Sight Shields Replacement (OUTLOOK) . |
|

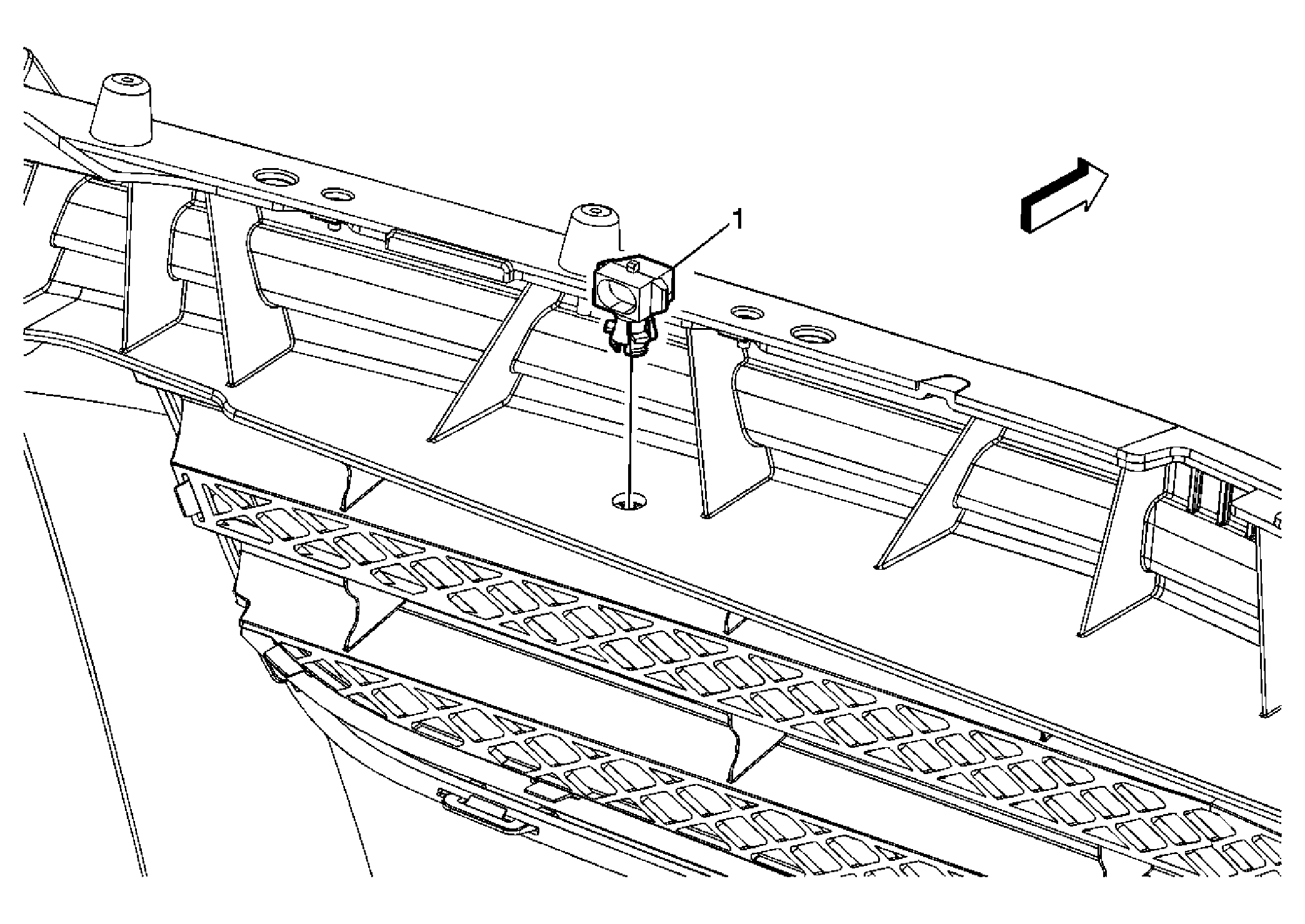

| 1 | Ambient Air Sensor Procedure: Squeeze bottom tabs together for removal of sensor. |
