Radio/Navigation System Schematics

WARNING: This page is about a different car, the 2010 Pontiac G6. However, it is still accessible from the selected car via links, so may be relevant.

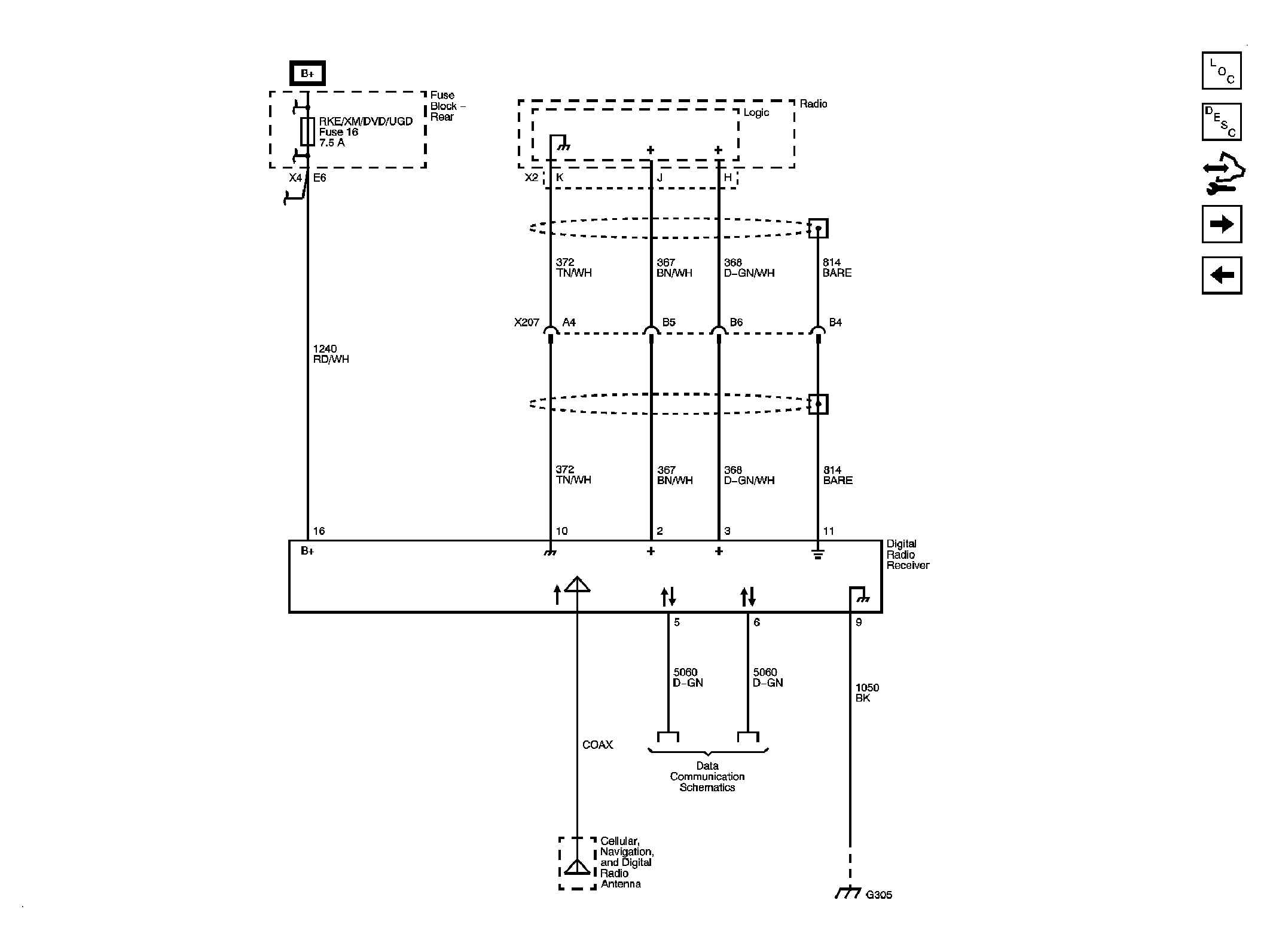

Fig 1: Digital Radio Receiver Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

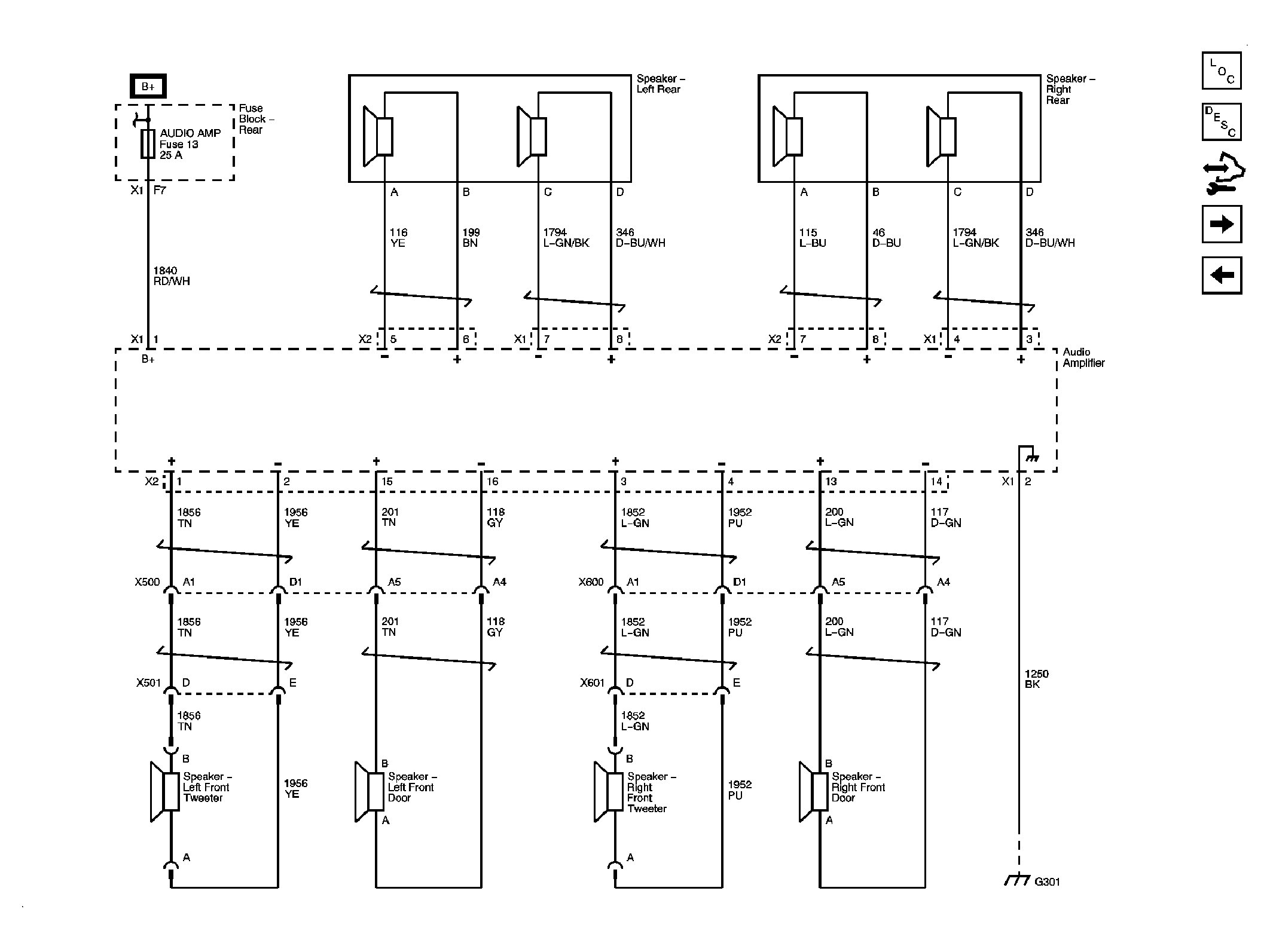

Fig 2: Radio Circuit Schematic (U85)

Courtesy of GENERAL MOTORS CORP.

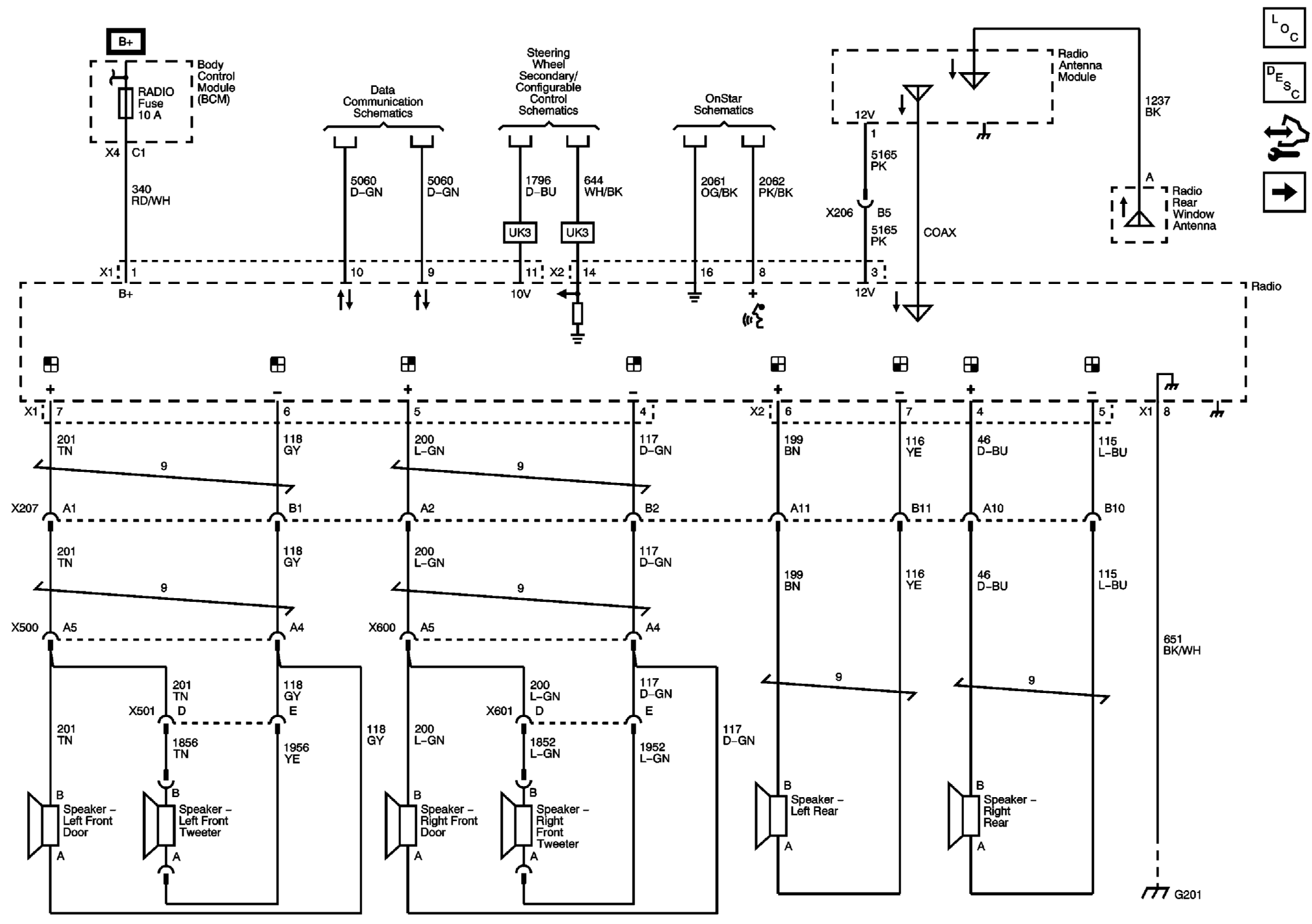

Fig 3: Radio Circuit Schematic (UZ6)

Courtesy of GENERAL MOTORS CORP.

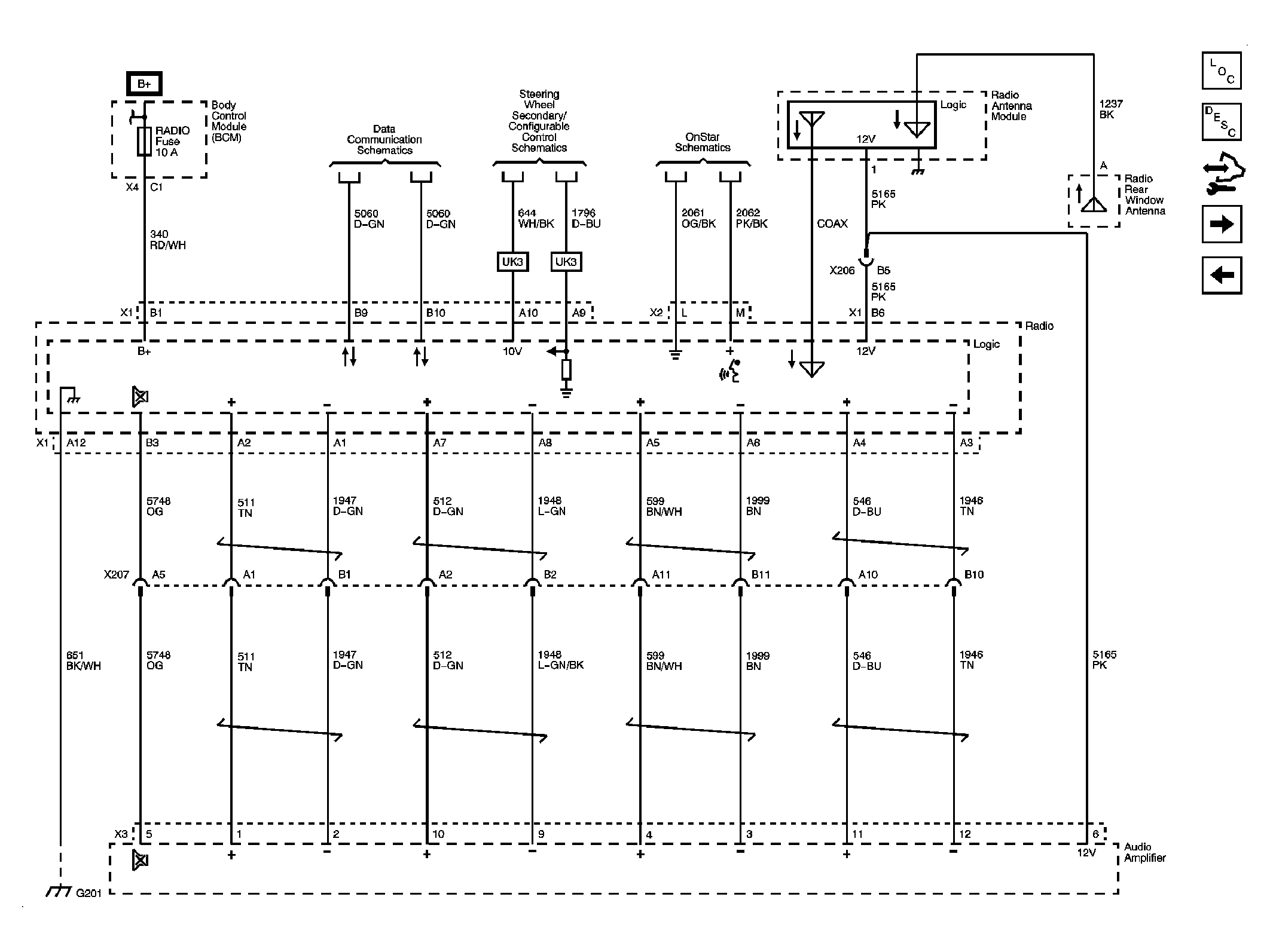

Fig 4: Radio Audio Signals Circuit Schematic (U85)

Courtesy of GENERAL MOTORS CORP.

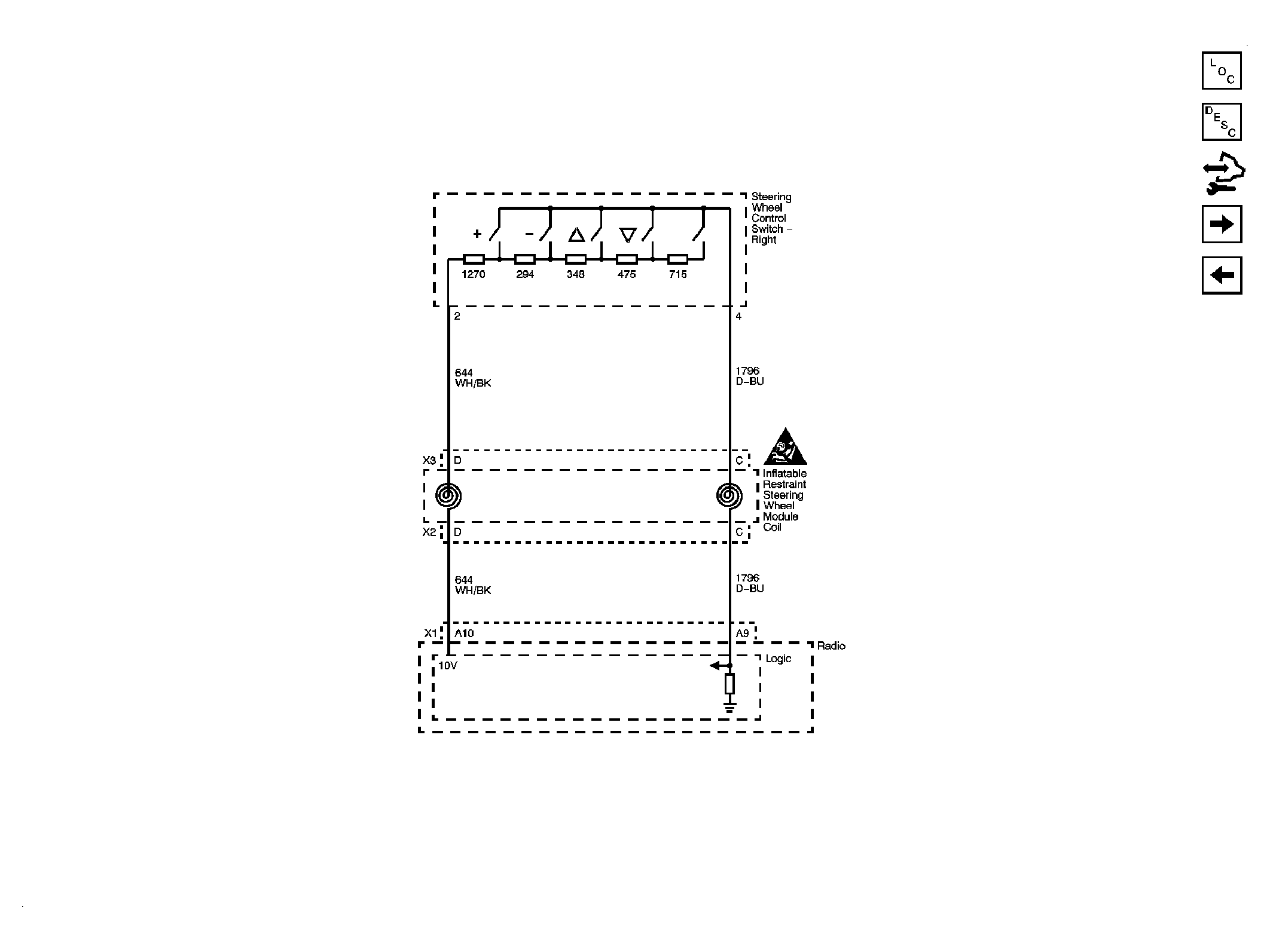

Fig 5: Redundant Radio Controls Circuit Schematic

Courtesy of GENERAL MOTORS CORP.
