Cruise Control Schematics

WARNING: This page is about a different car, the 2010 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

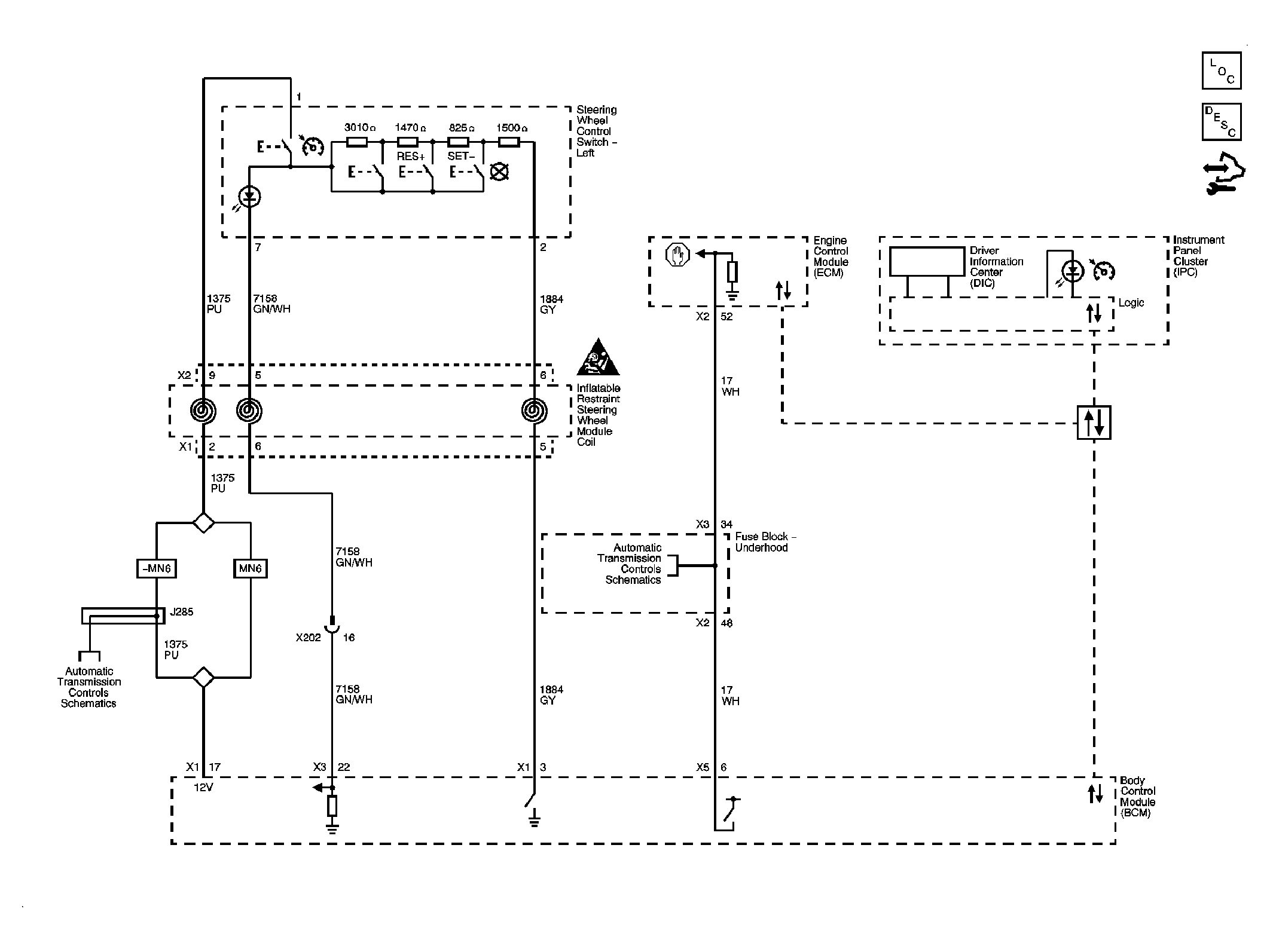

Fig 1: Cruise Control
GM2219501Courtesy of GENERAL MOTORS CORP.
