Door Control Module Schematics

WARNING: This page is about a different car, the 2010 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

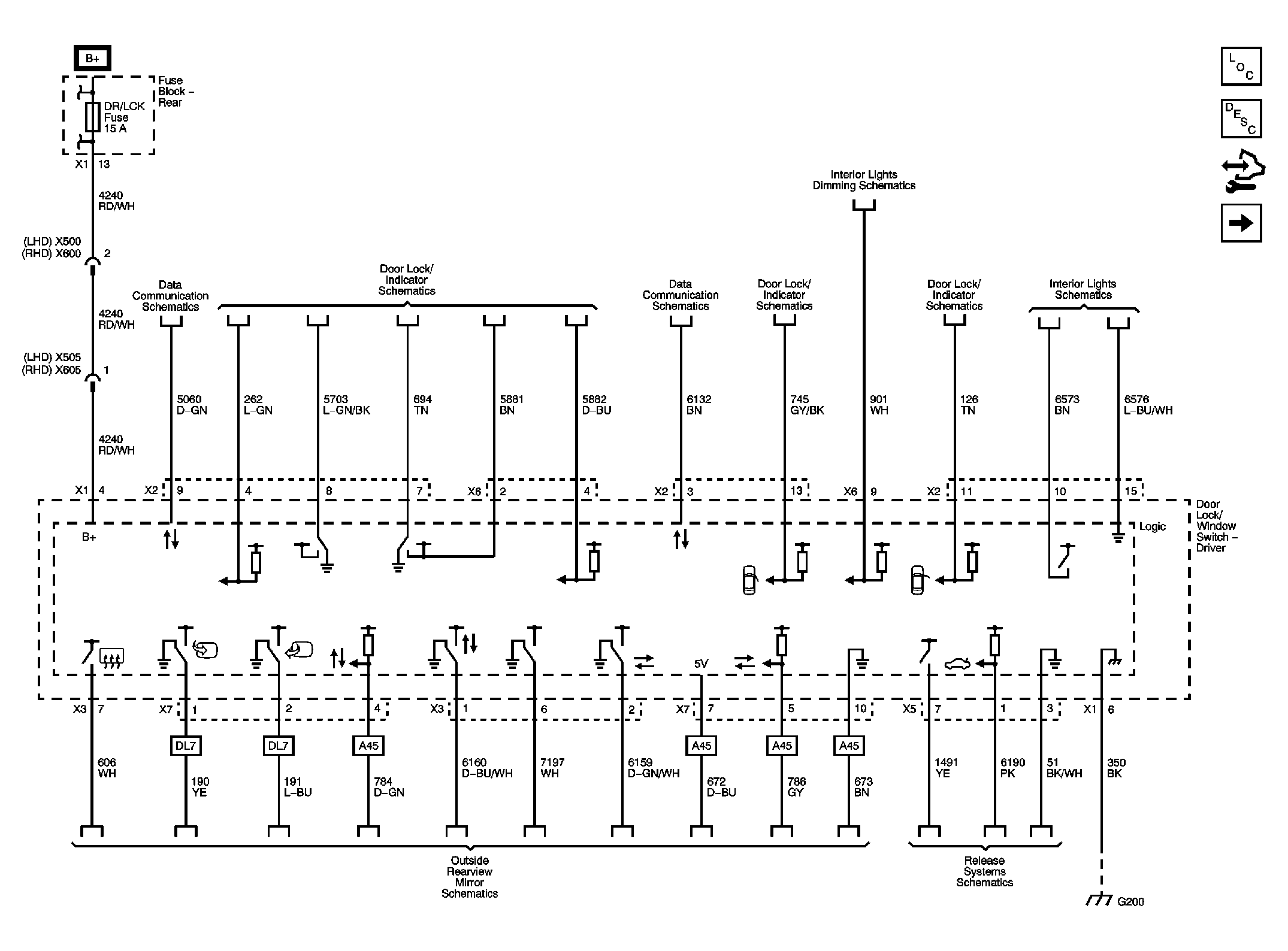

Fig 1: Driver Door Module 1 of 2

Courtesy of GENERAL MOTORS CORP.

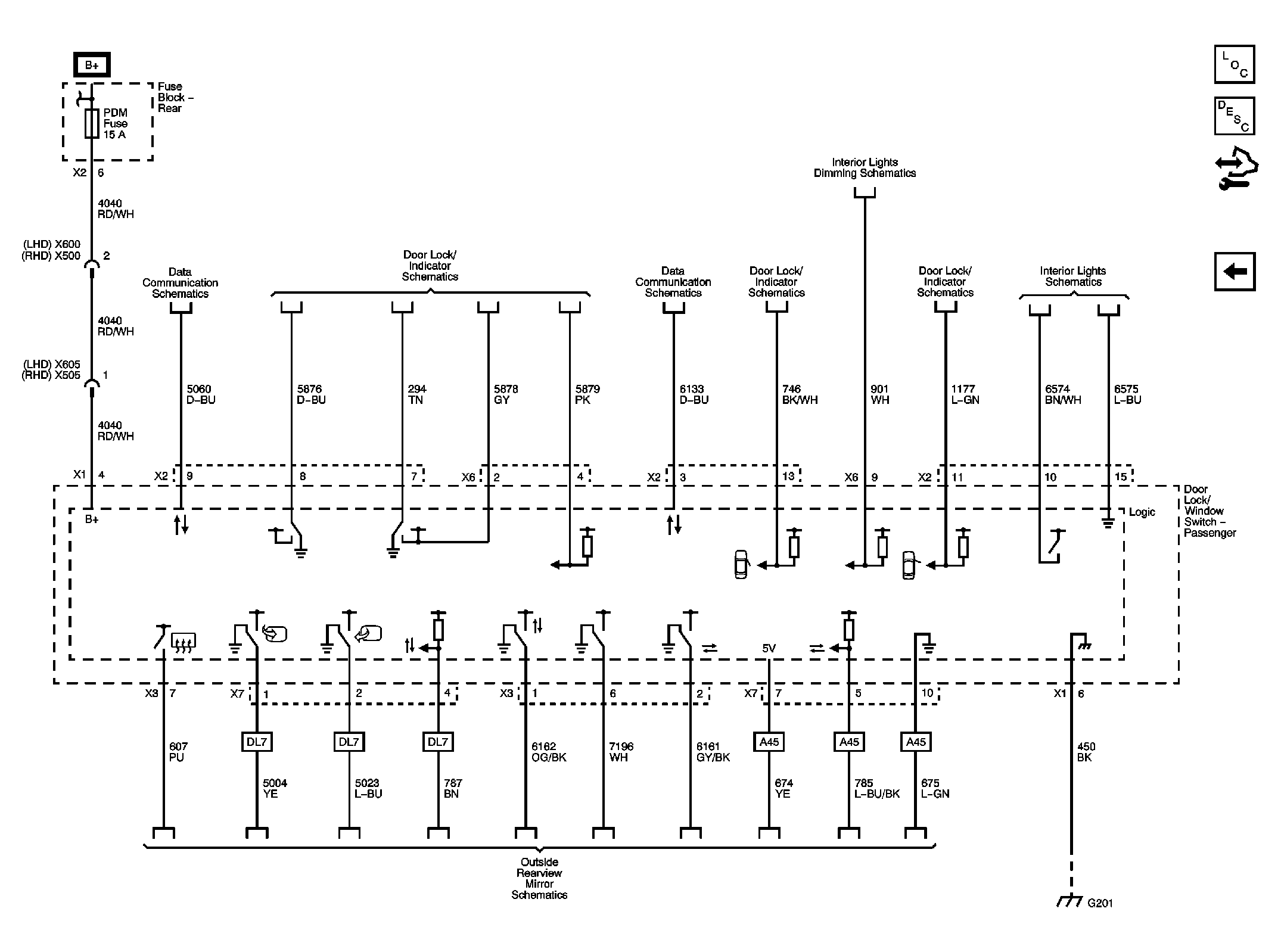

Fig 2: Driver Door Module 2 of 2

Courtesy of GENERAL MOTORS CORP.

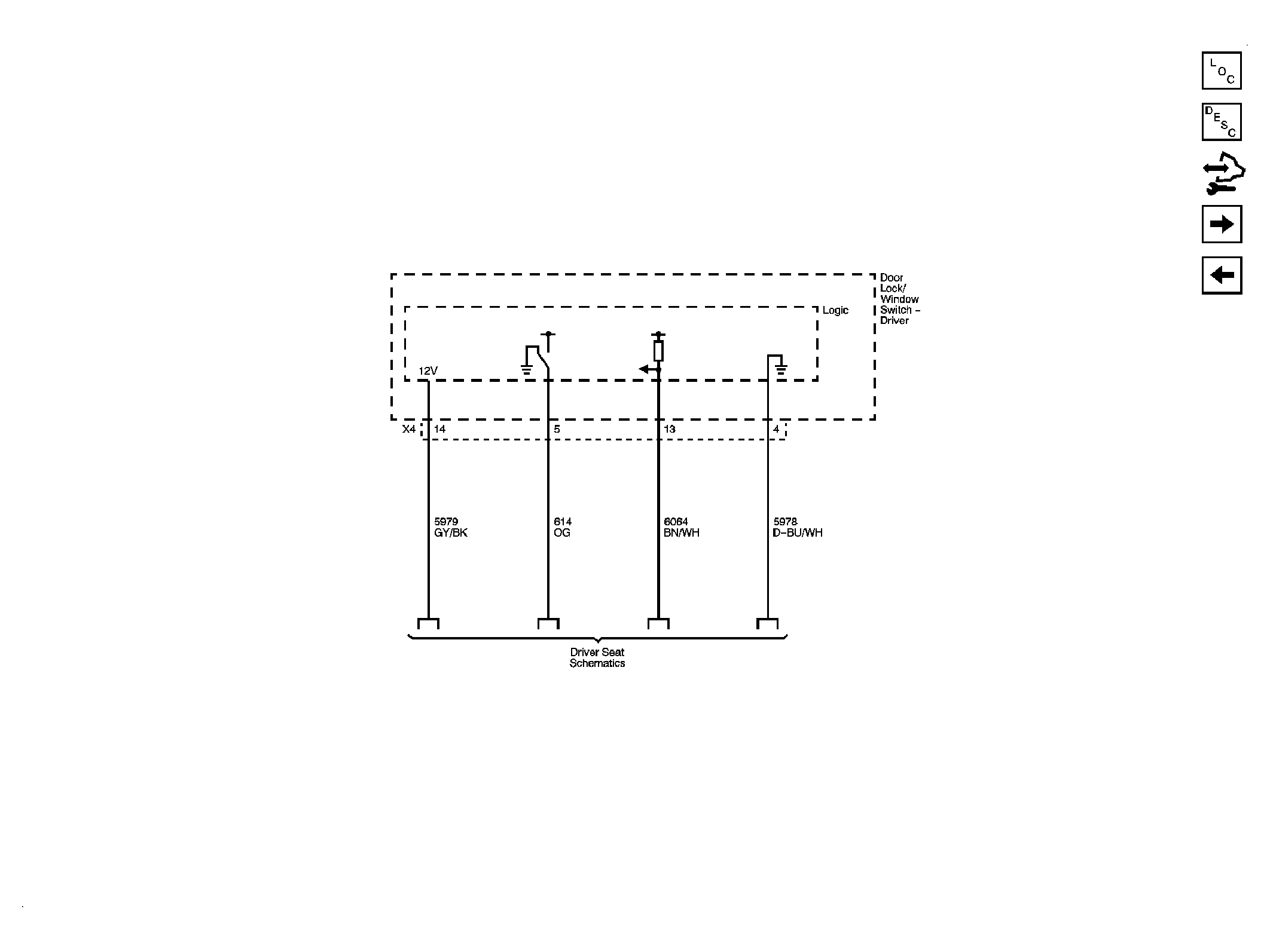

Fig 3: Front Passenger Door Module

Courtesy of GENERAL MOTORS CORP.
