SIR Identification Views
WARNING: This page is about a different car, the 2010 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

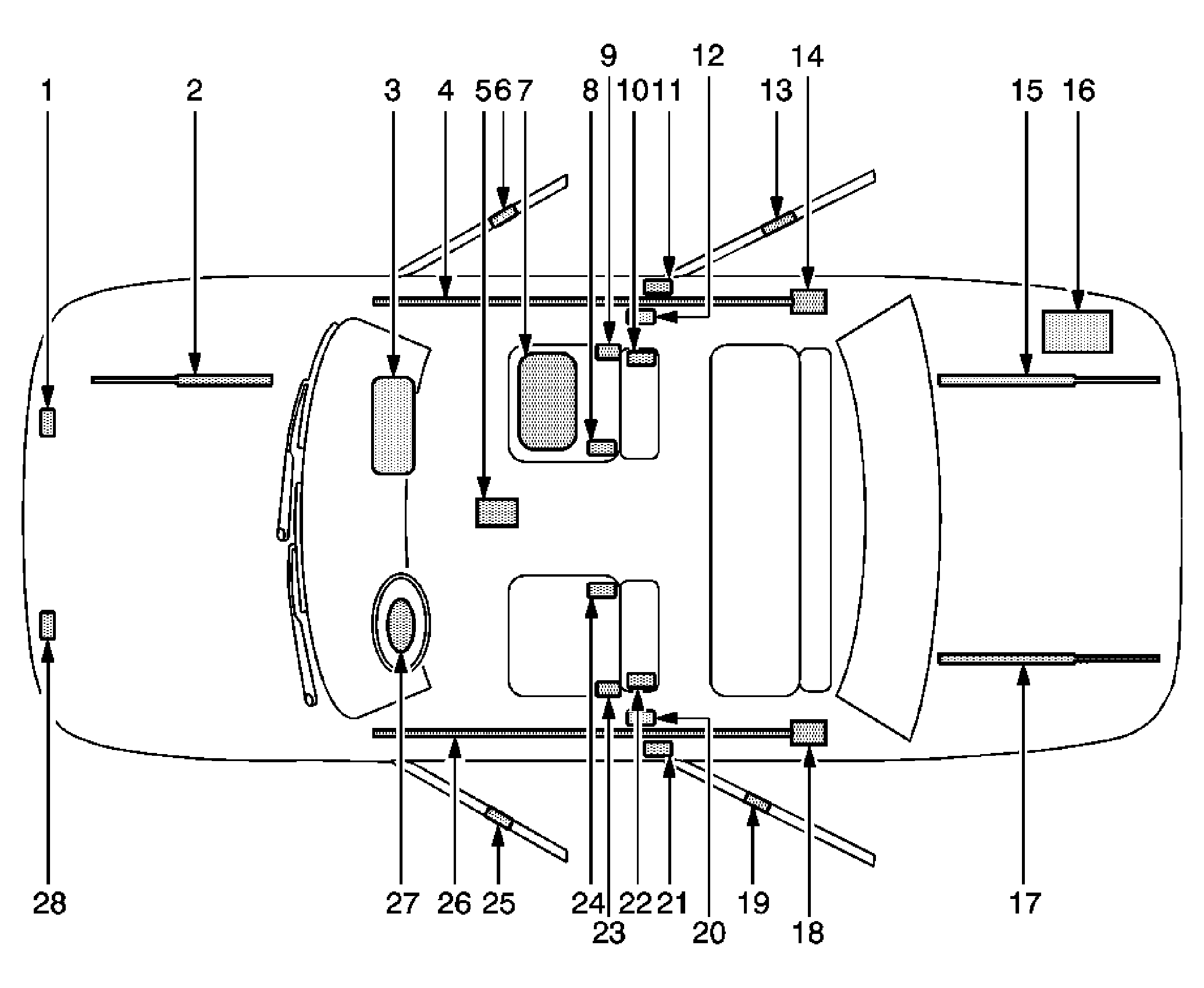

The SIR Identification Views shown below illustrate the approximate location of all SIR components available for the vehicle. This will assist in determining the appropriate SIR Disabling and Enabling for a given service procedure, refer to SIR Disabling and Enabling .
| Callout | Component Name |
|---|---|
| 1 | Front End Sensor, Right-Located on the front of the vehicle in the engine compartment |
| 2 | Front Hood Assist Rod-A gas shock located under the front hood on the passenger side |
| 3 | I/P Air Bag-Located at the top right under the instrument panel |
| 4 | Right Roof Rail Air Bag-Located under the headliner, extending from the passenger front windshield pillar to the passenger rear windshield pillar |
| 5 | Sensing and Diagnostic Module (SDM)-Located underneath the vehicle carpet under the center console |
| 6 | Side Impact Sensor (SIS), RF-Located inside front passenger door |
| 7 | Passenger Presence System-Located under the front passenger seat trim cover |
| 8 | Seat Position Sensor, Passenger-Located under seat, mounted to cross beam, inboard side |
| 9 | Seat Belt Anchor Tensioner, RF-Located on the outboard side of the passenger seat |
| 10 | Side Impact Air Bag, RF-Located on the seat back of passenger seat |
| 11 | Seat Belt Retractor Pretensioner-Located under the trim near the bottom of the center pillar |
| 12 | Seat Belt Buckle Switch, RF-Located within the seat belt buckle assembly |
| 13 | Side Impact Sensor (SIS), RR-Located inside rear passenger door |
| 14 | Inflator Module for Roof Rail Air Bag-Located on the passengers side behind the garnish molding on the upper rear pillar |
| 15 | Rear Compartment Lid Assist Rod-A gas shock is located under the rear trunk lid on the passenger side |
| 16 | Vehicle Battery-Located inside rear compartment on the passenger side behind the trim |
| 17 | Rear Compartment Lid Assist Rod-A gas shock is located under the rear trunk lid on the driver side |
| 18 | Inflator Module for Roof Rail Air Bag-Located on the driver side behind the garnish molding on the upper rear pillar |
| 19 | Side Impact Sensor (SIS), LR-Located inside rear passenger door |
| 20 | Seat Belt Buckle Switch, LF-Located within the seat belt buckle assembly |
| 21 | Seat Belt Retractor Pretensioner-Located under the trim near the bottom of the center pillar |
| 22 | Side Impact Air Bag, LF-Located on the seat back of driver seat |
| 23 | Seat Belt Anchor Tensioner, LF-Located on the outboard side of the driver seat |
| 24 | Seat Position Sensor, Driver-Located under seat, mounted to cross beam, inboard side, if equipped |
| 25 | Side Impact Sensor (SIS), LF-Located inside driver door |
| 26 | Left Roof Rail Air Bag-Located under the headliner, extending from the driver front windshield pillar to the driver rear windshield pillar |
| 27 | Steering Wheel Air Bag-Located on the steering wheel |
| 28 | Front End Sensor, Left-Located on the front of the vehicle in the engine compartment |
