Data Communication Schematics

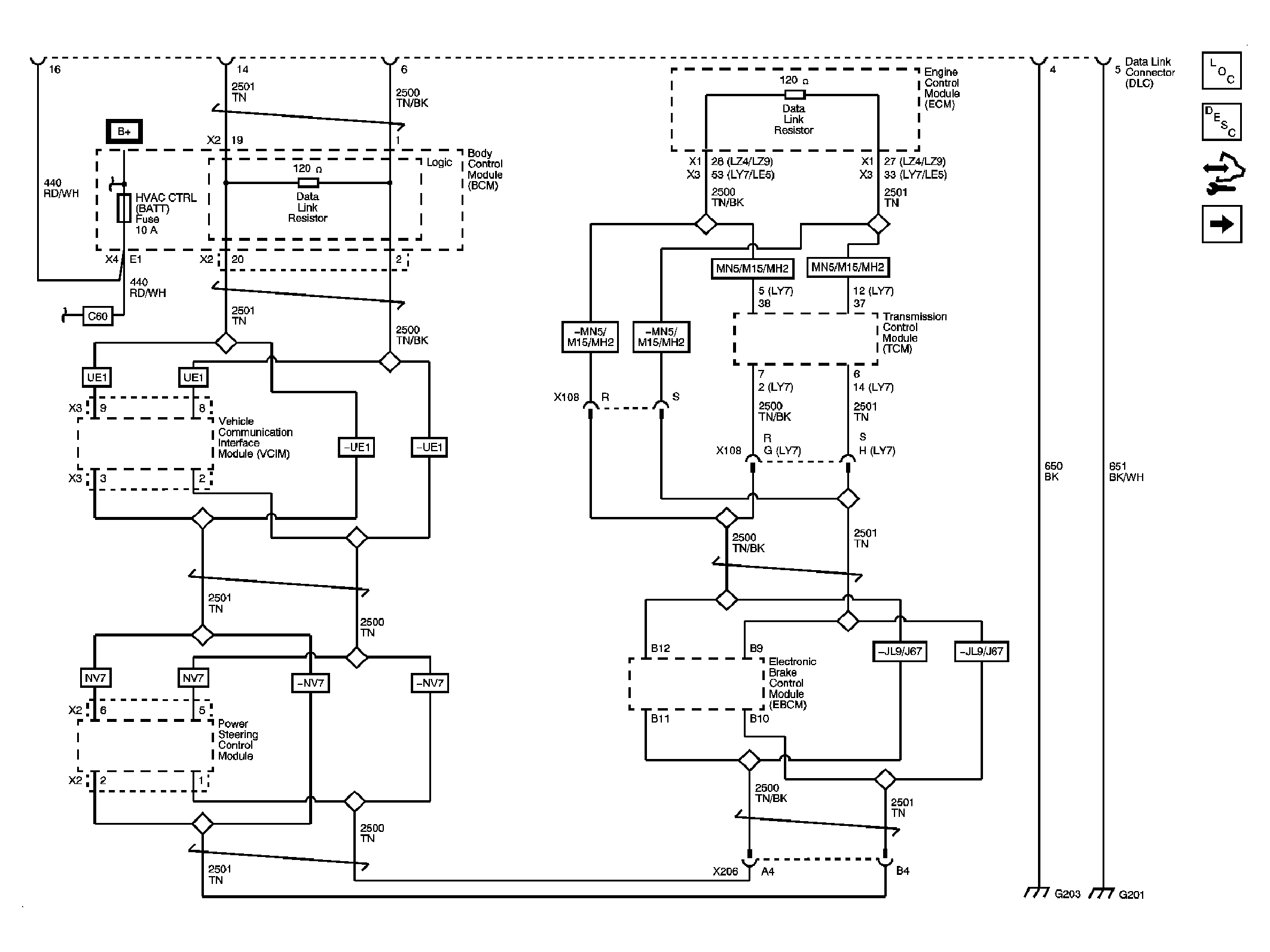

Fig 1: Power, Ground, High Speed GMLAN Serial Data Schematic
GM1913323Courtesy of GENERAL MOTORS CORP.

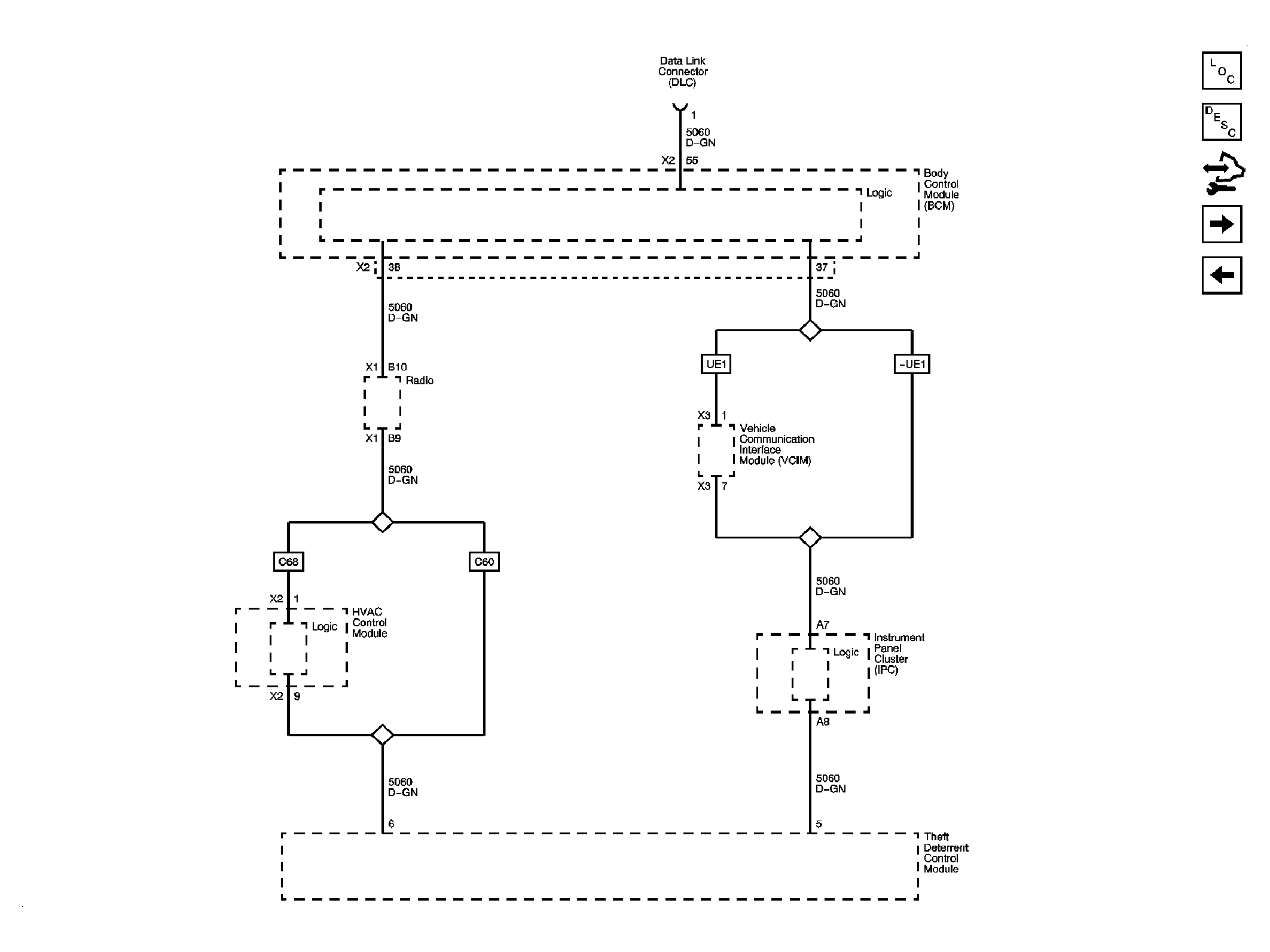

Fig 2: Low Speed GMLAN Serial Data Schematic (1 of 2)
GM1913328Courtesy of GENERAL MOTORS CORP.

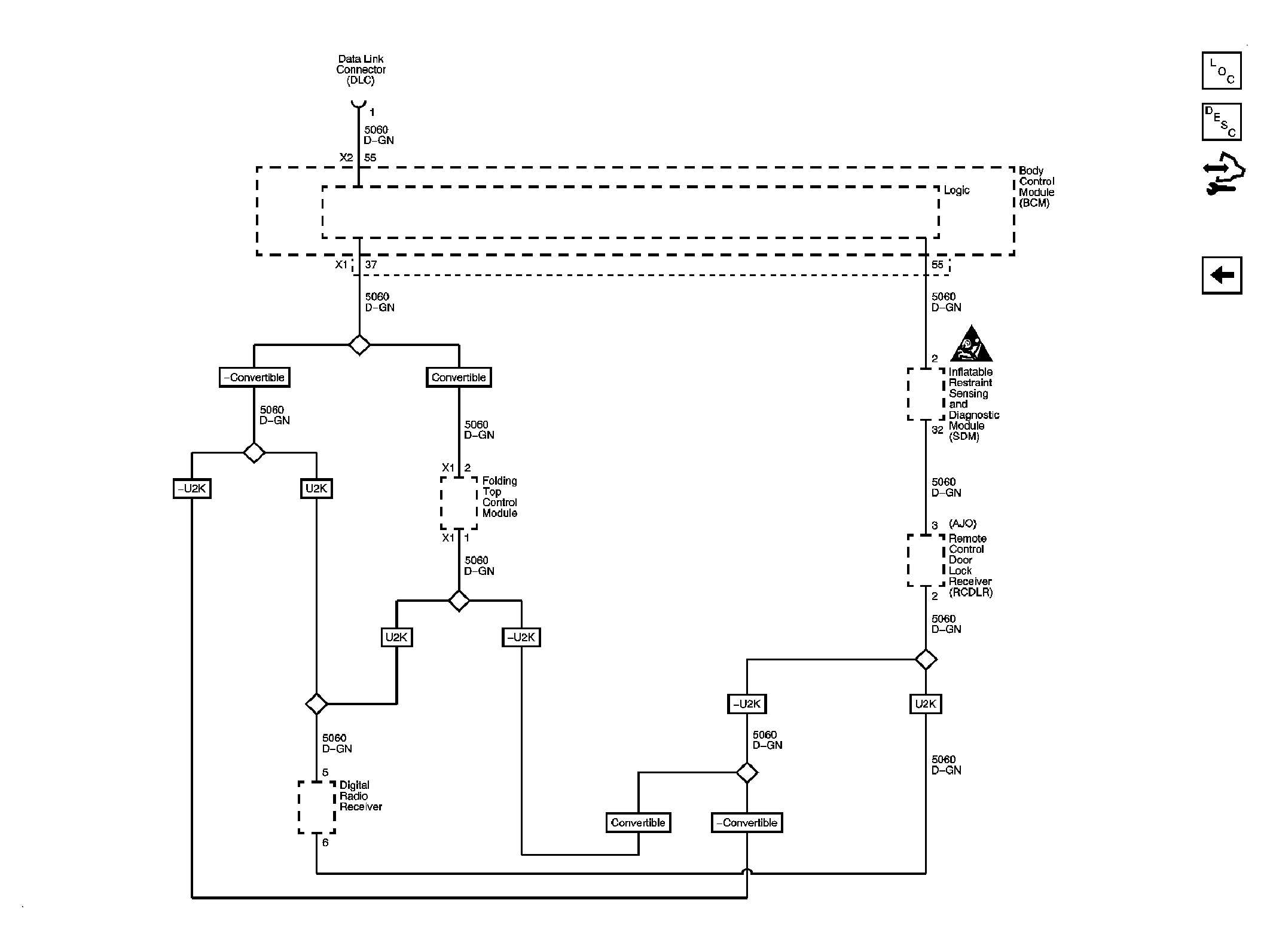

Fig 3: Low Speed Serial Data Schematic (2 of 2)
GM1913333Courtesy of GENERAL MOTORS CORP.
