Passenger Compartment/Roof Component Views

Fig 1: Locating Interior Cabin Components (Forward Overhead)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Courtesy/Reading Lamp - Left Front
2	Cellular Microphone (UE1)
3	Sunroof Switch (CF5/C3Y)
4	Courtesy/Reading Lamp - Right Front
5	Dome/Reading Lamp (-C3Y)
6	Sunroof (CF5/C3Y)
7	Vanity Mirror Lamp - Right (DH6)
8	Inside Rearview Mirror
9	OnStar Keypad (UE1)
10	Vanity Mirror Lamp - Left (DH6)

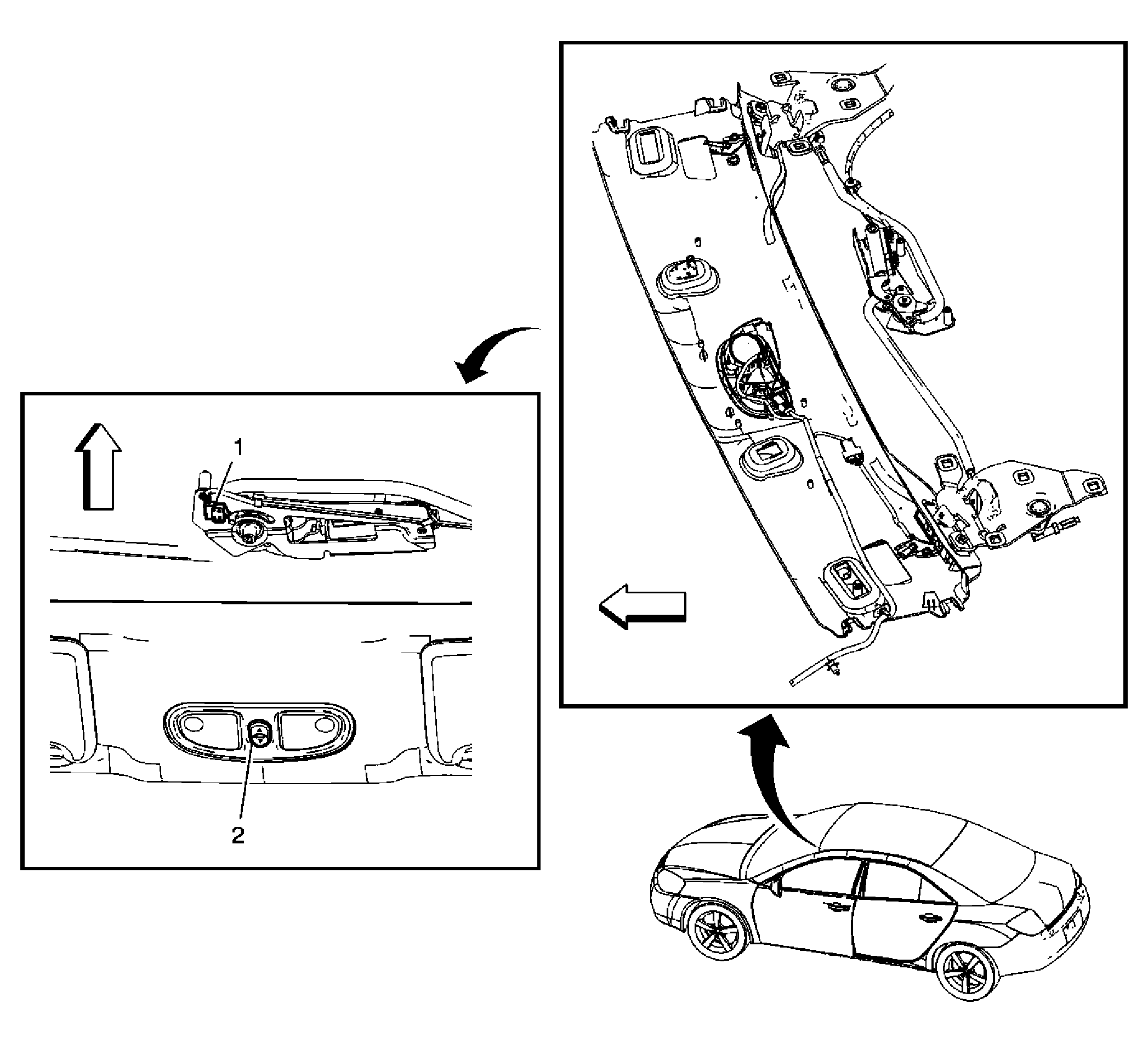

Fig 2: Folding Top Components (1 of 4)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Folding Top Front Latch Actuator Position Switch
2	Folding Top Open/Close Switch

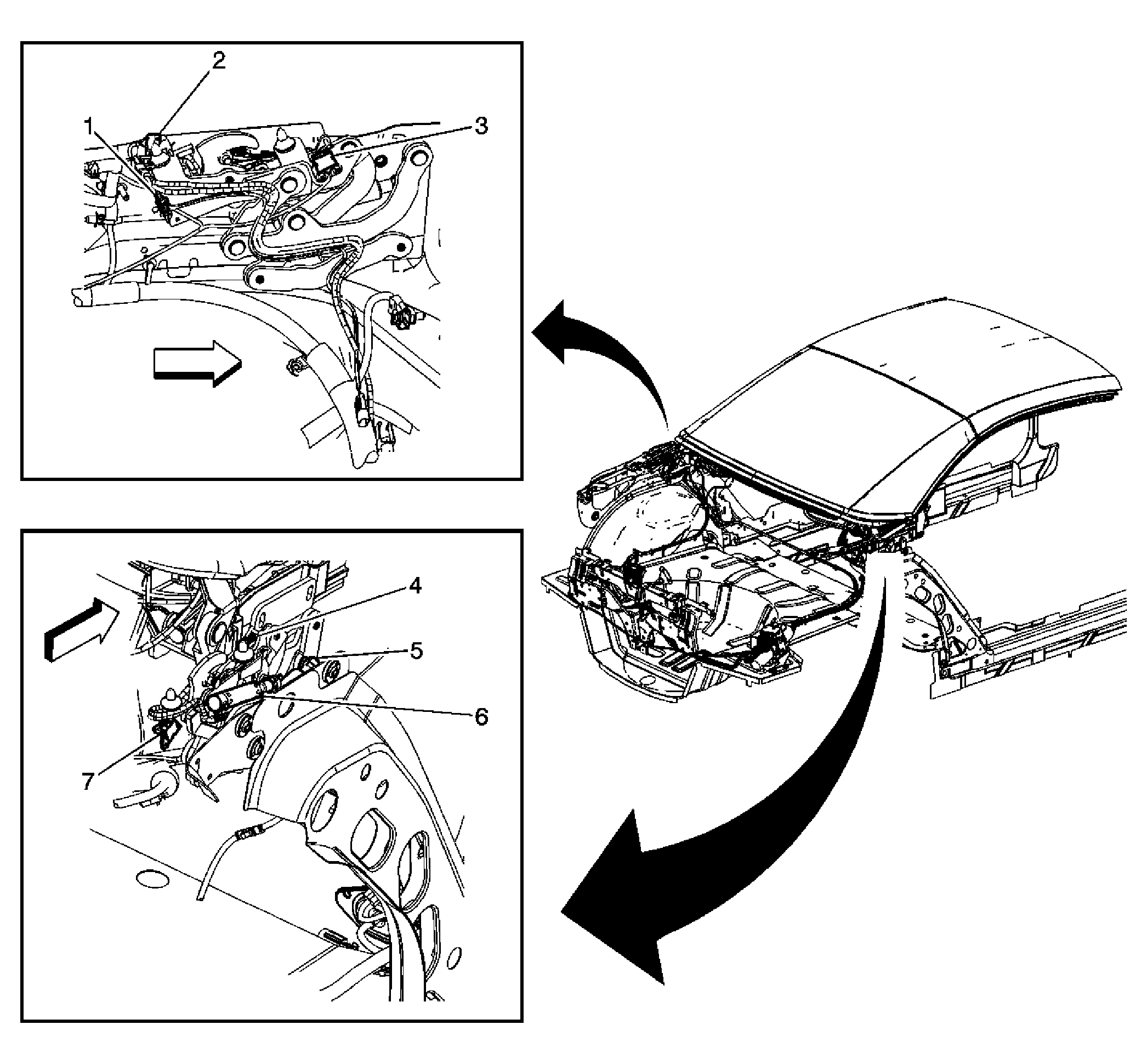

Fig 3: Folding Top Components (2 of 4)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Compartment Lid Front Latch Position Switch - Decklid Left
2	Micro Switch
3	Micro Switch
4	Micro Switch
5	Actuator
6	Actuator
7	Rear Compartment Lid Front Latch Position Switch - Decklid Right

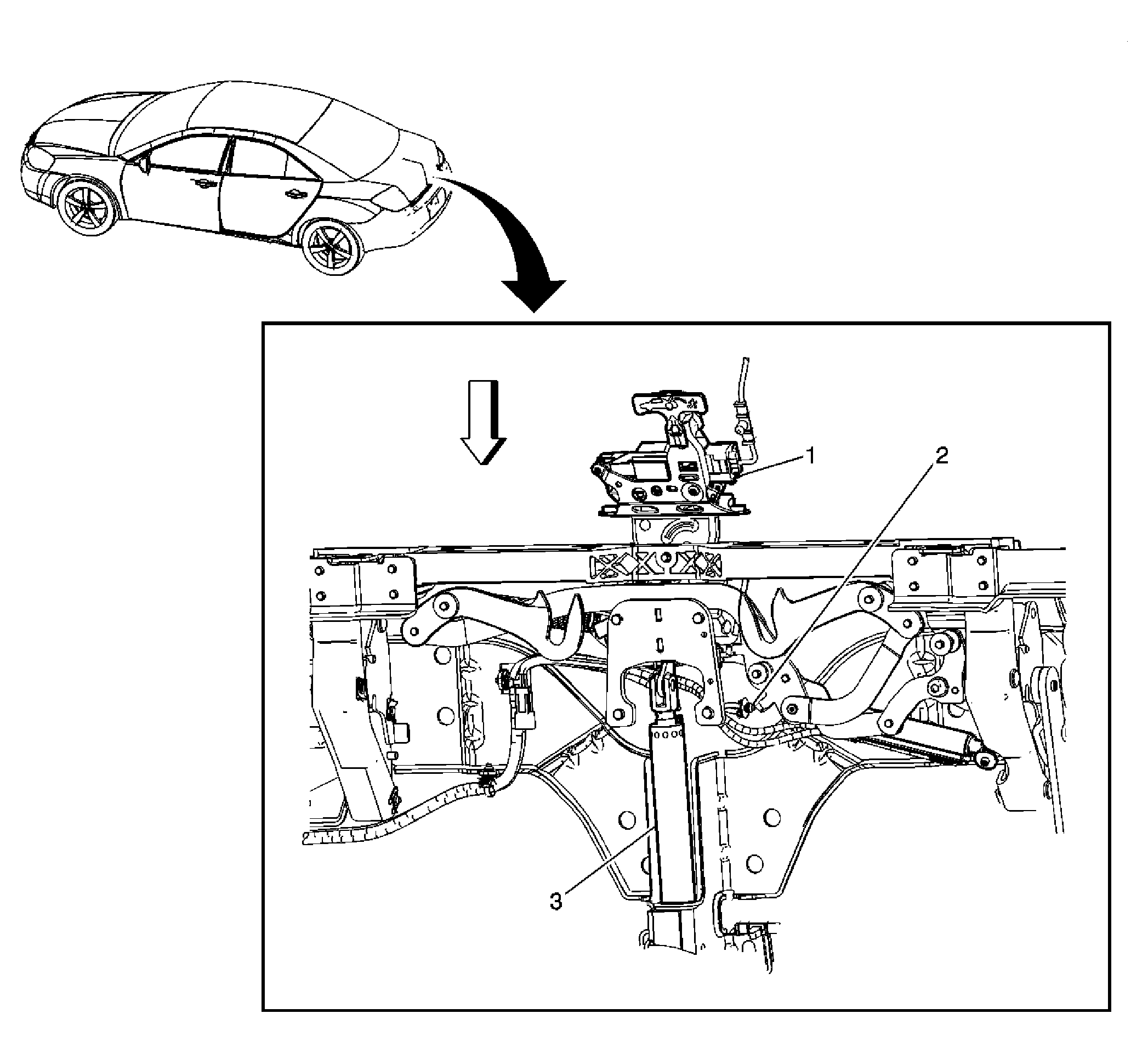

Fig 4: Folding Top Components (3 of 4)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Compartment Lid Latch
2	Rear Compartment Lid Release Switch
3	Rear Compartment Cylinder Extended Sensor

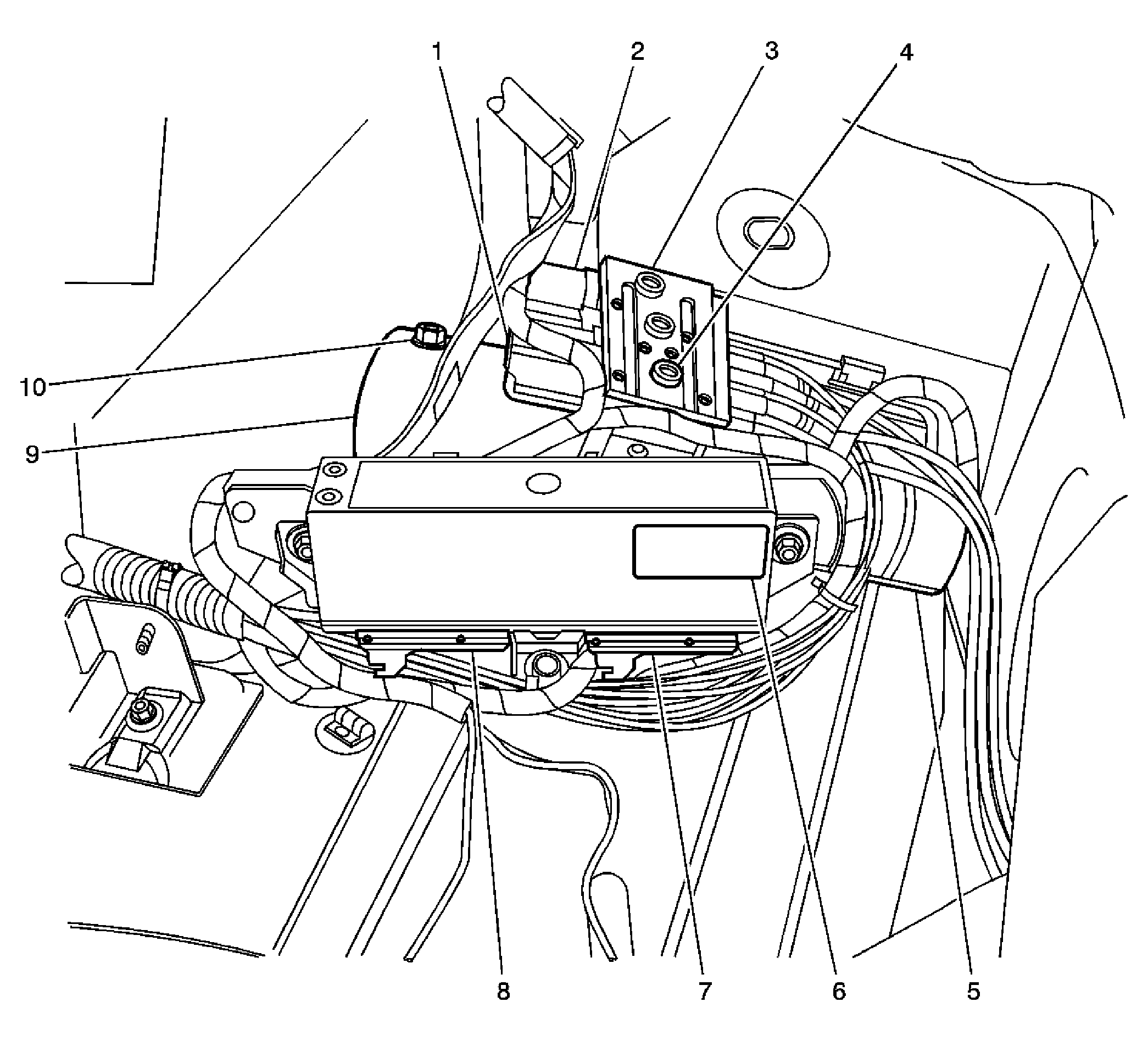

Fig 5: Folding Top Components (4 of 4)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Valve 1 (D-GN and BK circuits)
2	Valve 2 (D-BU and BK circuits)
3	Hydraulic Pump Assembly
4	Hydraulic Pump Bypass Valve
5	Folding Top Pump Motor
6	Folding Top Control Module
7	Folding Top Control Module X1 (BK)
8	Folding Top Control Module X2 (BU)
9	Reservoir
10	Reservoir Filler Plug

Fig 6: Identifying Sunroof Assembly Components (C3Y)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Sunroof Assembly
2	Sunroof Shade Module
3	Sunroof Control Module

Fig 7: View Of Rear of Sunroof (CF5)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Sunroof Control Module

Fig 8: View Of Radio Antenna Amplifier Module And Radio Rear Window Antenna (Sedan)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Radio Antenna Amplifier Module
2	Radio Rear Window Antenna

Fig 9: Viewing Under Center Console

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	X310
2	Inflatable Restraint Sensing and Diagnostic Module (SDM)

Fig 10: View Of Side Impact Modules

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Side Impact Module - Left (AY0)
2	Inflatable Restraint Side Impact Module - Right (AY0)

Fig 11: Driver Seat Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Heated Seat Element - Driver Cushion (KA1)
2	Seat Belt Switch - Left
3	Heated Seat Element - Driver Back (KA1)
4	Seat Adjuster Switch - Driver (AG1/ASN)
5	Heated Seat Switch - Driver (KA1)

Fig 12: Under Driver Seat Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Seat Front Vertical Motor (AG1)
2	Seat Horizontal Motor (AG1)
3	Heated Seat Cushion Temperature Sensor - Driver (KA1)
4	Seat Rear Vertical Motor (AG1)
5	X300
6	Heated Seat Control Module - Driver (KA1)

Fig 13: View Of Front Passenger Seat

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Passenger Presence System (PPS) Module
2	Heated Seat Element - Passenger Cushion (KA1)
3	Inflatable Restraint Passenger Presence System (PPS) Sensor
4	Seat Cushion Pad - Passenger
5	Inflatable Restraint Passenger Presence System (PPS) Module

Fig 14: Seat Belt Component Views - Passenger

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Heated Seat Element - Passenger Back (KA1)
2	Heated Seat Element - Passenger Cushion (KA1)
3	Heated Seat Switch - Passenger (KA1)
4	Seat Belt Switch - Right

Fig 15: Under Front Passenger Seat (KA1)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	X310
2	Heated Seat Control Module - Passenger
3	Heated Seat Cushion Temperature Sensor - Passenger

Fig 16: View Of Lower Left B-Pillar

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Seat Belt Pretensioner - Left Front

Fig 17: View Of Lower Right B-Pillar

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Seat Belt Pretensioner - Right Front

Fig 18: View Of Rear Fuse Block (Sedan)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuse Block - Rear

Fig 19: Upper Left Rear of the Passenger Compartment Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Roof Rail Module - Left (AY0)
2	X351 (UE1)
3	Rear Window Defogger Grid - X1

Fig 20: View Inside Of Right C-Pillar - Sedan

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Window Defogger Grid, X2
2	G301
3	Inflatable Restraint Roof Rail Module - Right (AY0)

Fig 21: Rear Window Shelf Components (Coupe/Sedan)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Digital Radio Receiver (U2K)

Fig 22: Remote Control Door Lock Receiver (RCDLR)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Remote Control Door Lock Receiver (RCDLR)

Fig 23: Rear Speakers

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Speaker - Right Rear
2	Speaker - Left Rear
